6.2m Buy Single Column Outrigger Aluminum Lift Platform for Narrow-Space Aerial Work

Aluminium Alloy Lifting Platform​

Short Description:

This single-column outrigger aluminum platform offers 6.2m working height with 150kg capacity, ideal for narrow spaces like factories and malls....


  • MODEL: ATWY1 - 6
  • Max. Working Height: 8.2 m
  • Max. Platform Height: 6.2 m
  • Loading Capacity: 150 kg
  • Occupants: 1
  • Platform Dimension: 0.67 m×0.66 m
  • Overall Height: 1.99 m
  • Overall Width: 0.76 m
  • Overall Length: 1.26 m
  • Outrigger coverage: 1.9 m×1.8 m
  • WEIGHT - AC: 340 kg
  • WEIGHT - DC: 390 kg
  • Power source - AC: 380 V/220 V/110 V
  • AC Motor: 1.5 KW
  • DC (Optional): 12 V
  • DC motor: 1.5 KW
  • Charger: 12 V/15 A

Product Detail

Product Description

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

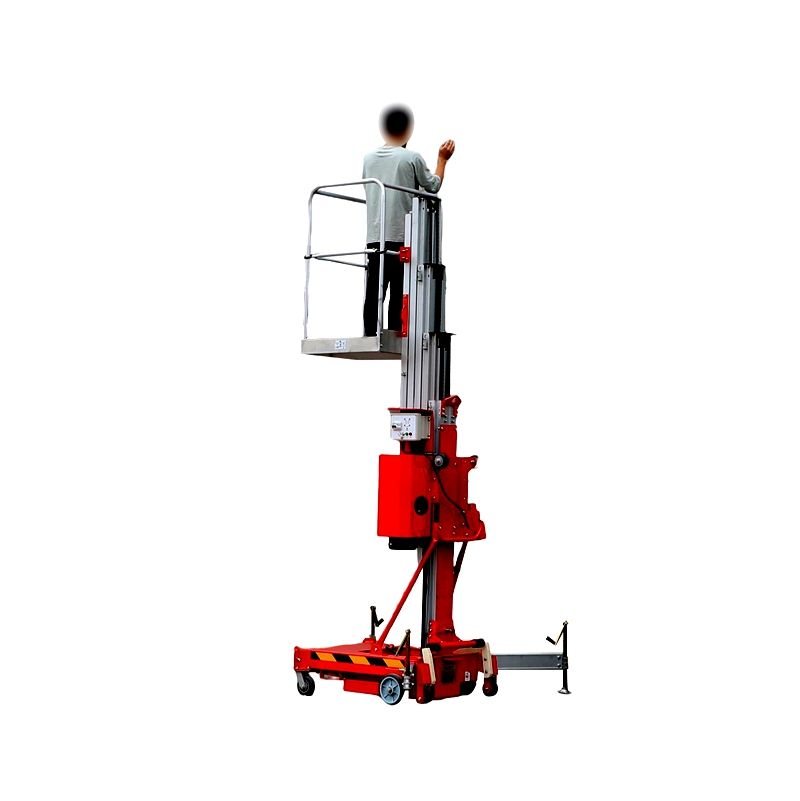

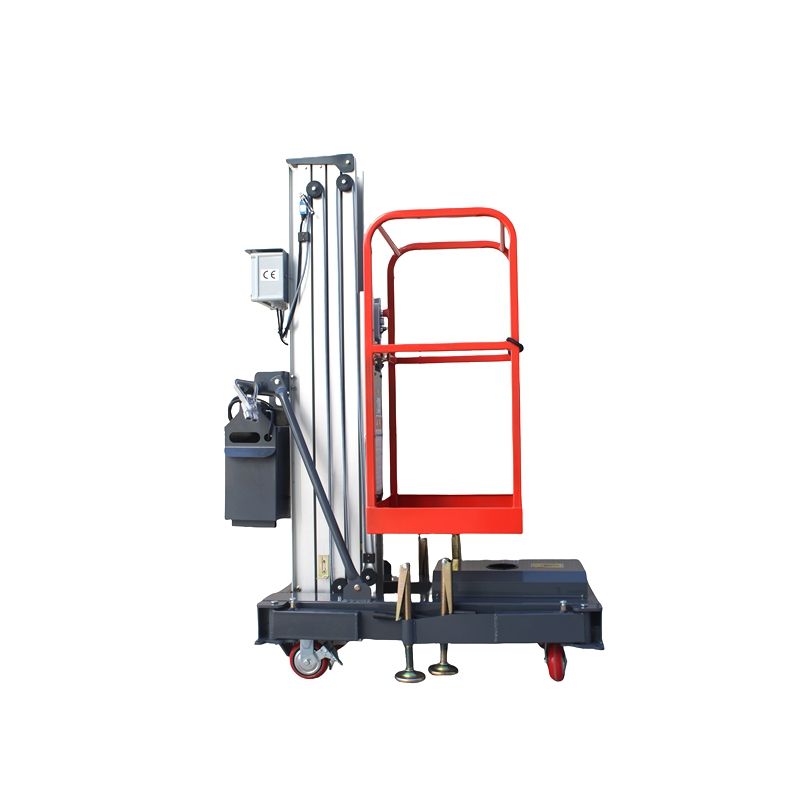

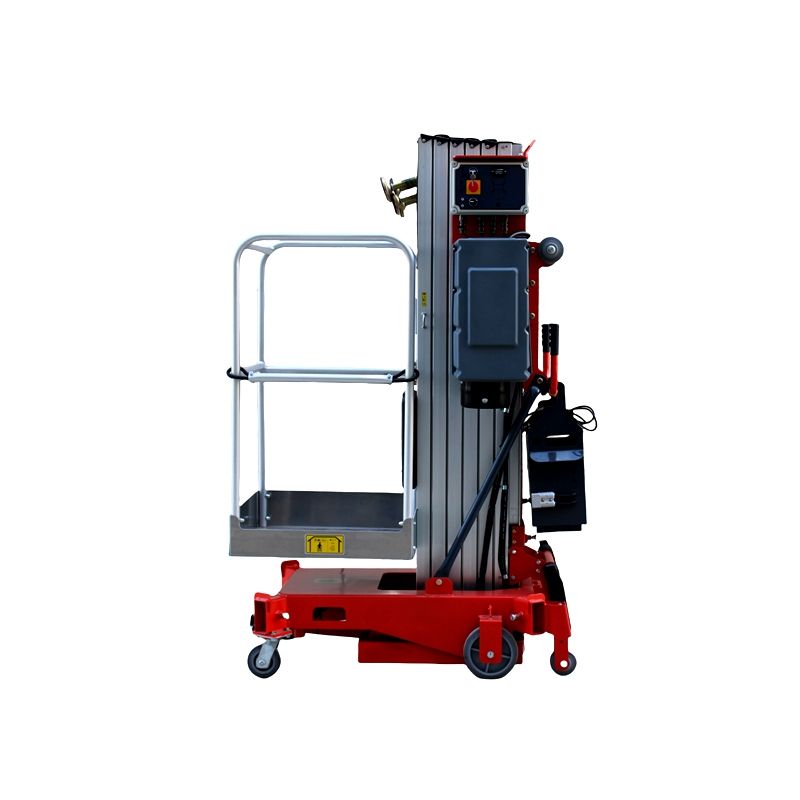

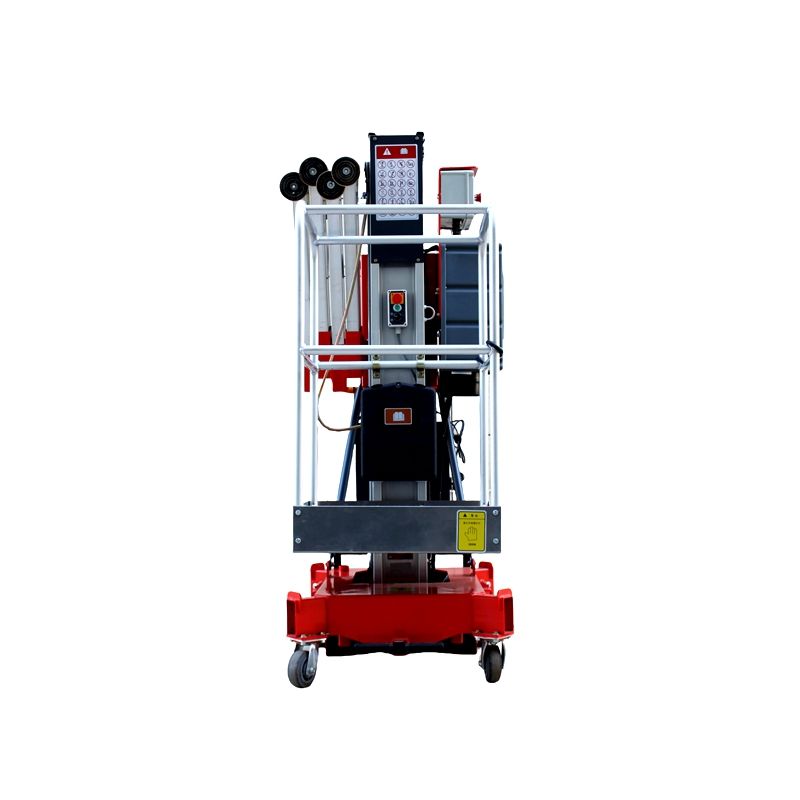

ATWY1-6 Single-Column Outrigger Mobile Aluminum Platform: The 6.2m Platform Height Expert for Narrow-Space Aerial Work

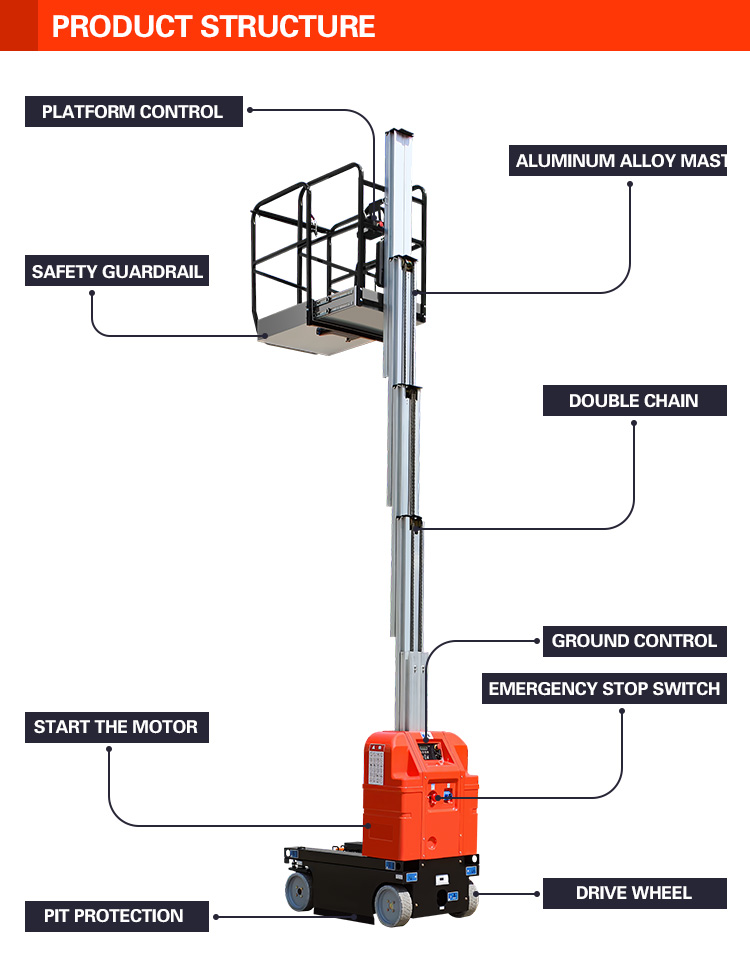

Outrigger Single-Column Structure: Perfect Balance of Aerial Stability and Spatial Flexibility

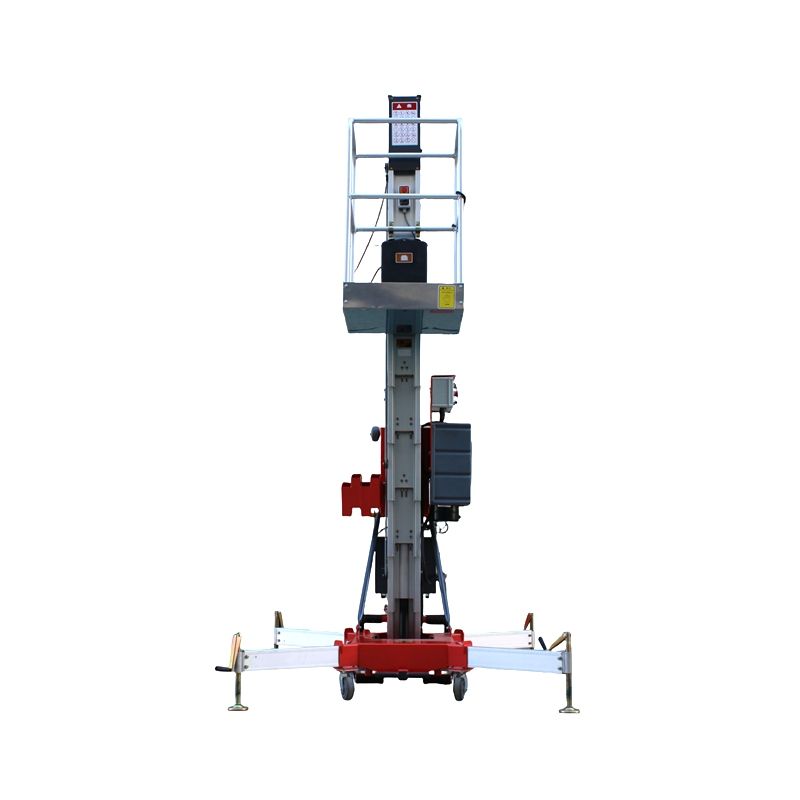

Engineered for medium-high altitude narrow scenarios, the ATWY1-6 features a high-strength 6063-T5 aluminum single-column outrigger framework, achieving an 8.2m maximum working height while stabilizing the platform load at 150kg (including personnel and tools). With an ultra-compact 1.26m×0.76m body and 1.99m retracted height, it navigates ≥0.8m-wide corridors and standard elevators (car size ≥1.3m×1.0m). The deployed 1.9m×1.8m mechanical-locked outrigger support range, enhanced by anti-tip moment design, ensures ≤15mm sway at 6.2m platform height, addressing the stability pain point of traditional single-column platforms. The 0.67m×0.66m non-slip work surface includes guardrail kickplates and 5kg-rated tool hooks for safe single-person precision operation.

Dual-Power Modes: Full-Environment Energy Adaptation Solution

The platform offers two independent power configurations to meet diverse energy needs:

AC Version: Compatible with global 380V/220V/110V power, driven by a 1.5kW asynchronous motor for hydraulic lifting, supporting continuous high-frequency use at fixed workpoints—ideal for automotive factory overhead equipment maintenance or mall dome lighting upkeep, operating indefinitely when plugged in.

DC Version (Optional): Equipped with a 12V battery and 1.5kW DC motor, supporting 6 hours of continuous operation (8 lifting cycles/hour). The 12V/15A smart charger completes a full charge in 5 hours, suitable for outdoor no-power scenarios (e.g., municipal streetlight maintenance, construction site temporary lifting), freeing users from cable constraints.

Both power versions use a hydraulic pump station, with lifting speed ≤12sec/m (6.2m platform in ~74 seconds) and controlled descent via flow control valve to avoid ground impact, protecting precision equipment and operators.

Triple Safety Protection System: Zero-Risk Assurance for Aerial Work

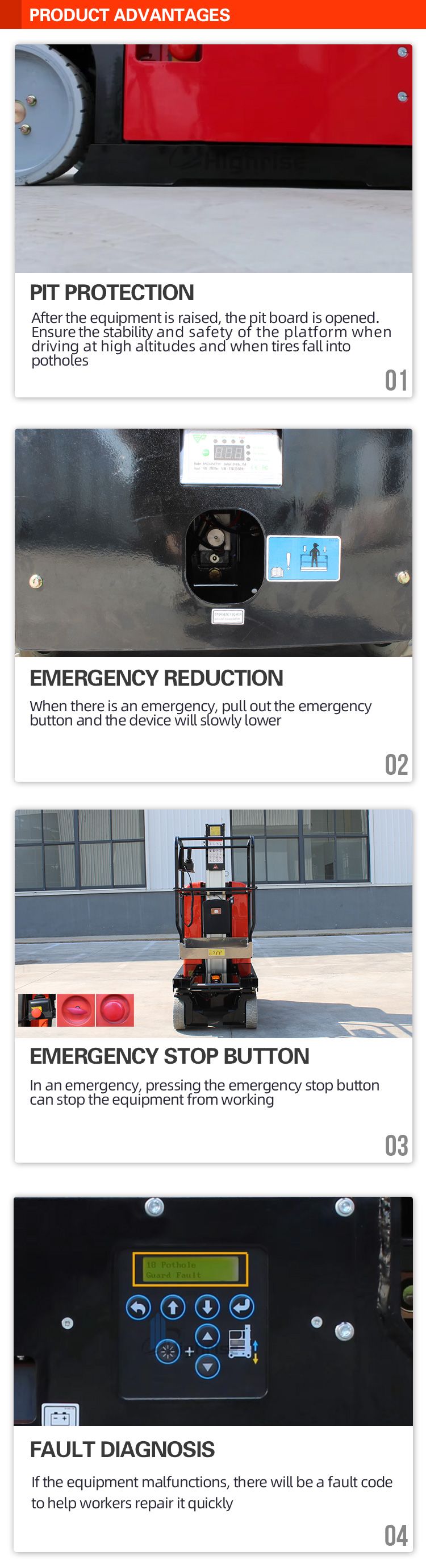

Structural Safety: Outriggers lock doubly with mechanical pins, integrated level gauge monitors support surface tilt in real time, triggering audio-visual alarms over 3°; hydraulic system cuts off lifting power and alarms when load exceeds 165kg (110% of rating) to prevent tipping.

Operational Safety: IP65-rated emergency stop buttons on both ground and platform control panels allow manual pump descent during power outages; dual limit switches at mast top/bottom prevent over-travel, hydraulic lock engages instantly in case of oil pipe rupture, complying with GB/T 27548-2011 and CE machinery safety standards.

Material Safety: Anodized aluminum structure enhances corrosion resistance 3x over steel platforms, suitable for humid environments (ships, food factories); spark-free material meets safety requirements for flammable areas.

Full-Scene Application Adaptation: From Precision Workshops to Outdoor Complex Terrains

Indoor Ultra-Narrow Operations: 8m library bookshelf organization (0.76m width fits between shelves), electronics factory cleanroom overhead pipe calibration (anti-static aluminum), 8m hotel guestroom ceiling maintenance (1.99m retracted height fits guest elevators).

Outdoor Mobile Work: DC version with Φ200mm rubber wheels pushes easily on light gravel, ideal for municipal bridge inspection or residential building facade cleaning; outrigger support stays stable on ≤5° slopes or soft ground.

Commercial Scene Customization: Replaceable non-slip outrigger pads (optional) protect marble/wood floors without scratches, meeting high standards of malls and exhibition halls.

Human-Centric Design and Low Maintenance Cost

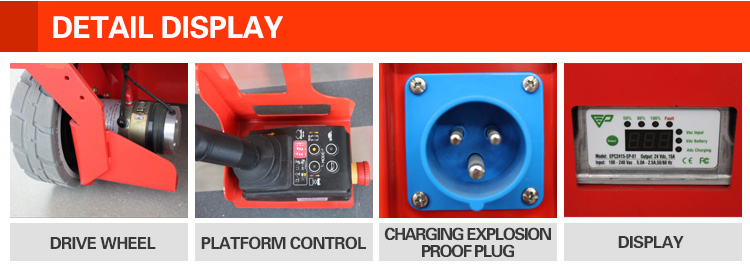

Control Experience: AC version’s electromagnetic directional valve and DC version’s DC contactor both support jog lifting with ±30mm positioning for precise tasks like lighting alignment; platform handrail integrates speed control knob for adaptable operation.

Portable Transition: Folding handle on body allows easy single-person short-distance movement; quick-release outriggers deploy/retract within 30 seconds, boosting multi-site operation efficiency.

Maintenance Advantages: Maintenance-free self-lubricating bearings reduce 90% of daily upkeep, sealed hydraulic tank blocks dust, cutting annual maintenance costs by 35% compared to similar products; built-in fault indicator feedbacks motor temperature/battery status for quick troubleshooting.

With a 6.2m platform height, 150kg load capacity, and 0.76m ultra-narrow body, the ATWY1-6 sets a benchmark for narrow-space medium-high aerial work. Dual-power configurations cover fixed/off-grid scenarios, triple safety protections ensure worry-free operation, and aluminum lightweight design balances durability and portability. Optional accessories—rain cover, platform extension, wireless remote—support custom explosion-proof/low-temperature solutions for manufacturing, commerce, and municipal sectors, redefining the performance boundaries of single-column outrigger platforms.
