6 m Compact Safe Single-Column Aluminum Platform For Sale

Aluminium Alloy Lifting Platform​

Short Description:

6 m single-column aluminum platform for solo use, 8 m working height, 150 kg load, and 7-layer safety system. Swivel-leg design fits narrow spaces, dual power for indoor/outdoor—compact, safe, quick deploy for commercial maintenance, home projects, and silent venues....


  • MODEL: ATWP1 - 6
  • Loading Capacity: 150 kg
  • Occupants: 1
  • Max. Working Height: 8.00 m
  • Max. Platform Height: 6.00 m
  • Overall Length: 1.34 m
  • Overall Width: 0.85 m
  • Overall Height: 1.99 m
  • Platform Dimension: 0.60 m×0.55 m
  • Outrigger coverage: 1.7 m×1.67 m
  • Lifting Motor: 0.75 KW
  • Weight(AC): 325 kg
  • DC (Optional): 12 V/80 Ah
  • Lifting Motor (Optional): 1.5 KW
  • Charger: 12 V/15 A

Product Detail

Product Description

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

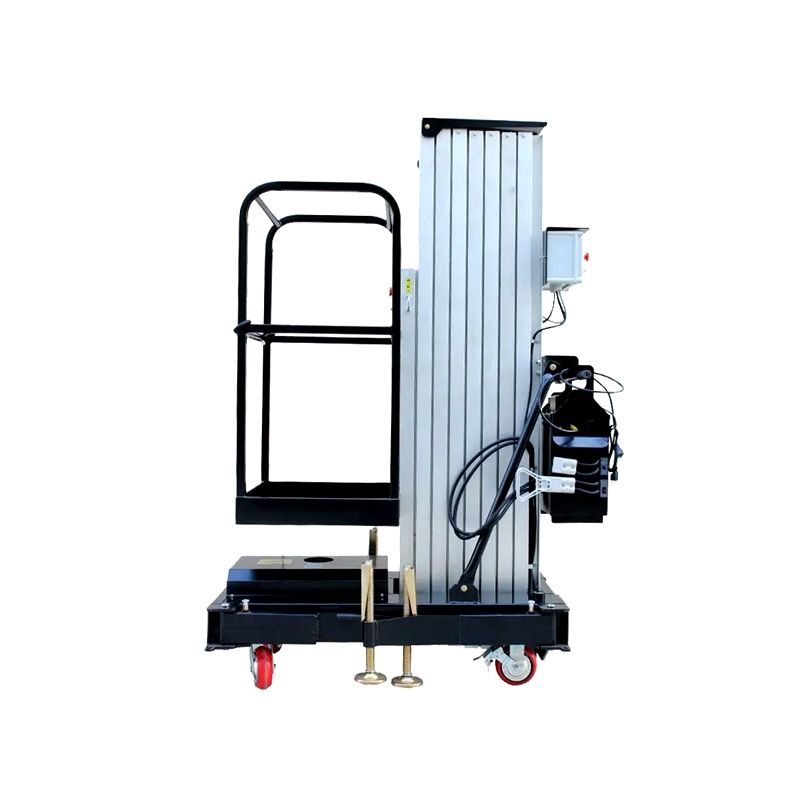

ATWP1-6 Single-Column Swivel-Leg Mobile Aluminum Platform: 6m Safe & Efficient Solution for Single-Person Aerial Operations

Lightweight Single-Column Swivel-Leg Architecture: Balance of Compact Design and Stable Support

The ATWP1-6 features a single-column swivel-leg structure constructed from high-strength 6061-T6 aluminum alloy, offering a 6m maximum platform height and 8m working height with a 150kg rated load optimized for single-person aerial tasks. The 0.6m×0.55m non-slip work platform is equipped with foldable guardrails and tool hooks, adapting to single-operator use with small equipment. With retracted dimensions of 1.34m×0.85m×1.99m, it navigates through ≥0.9m-wide indoor corridors and residential elevators (car size ≥1.4m×1.1m). The deployed 1.7m×1.67m swivel-leg support forms a stable triangular base, limiting platform sway to ≤10mm at 6m height—compliant with GB/T 27548-2011 safety standards for aerial work equipment.

Seven-Layer Safety Protection System: Full-Process Operational Safety Assurance

Operational Safety

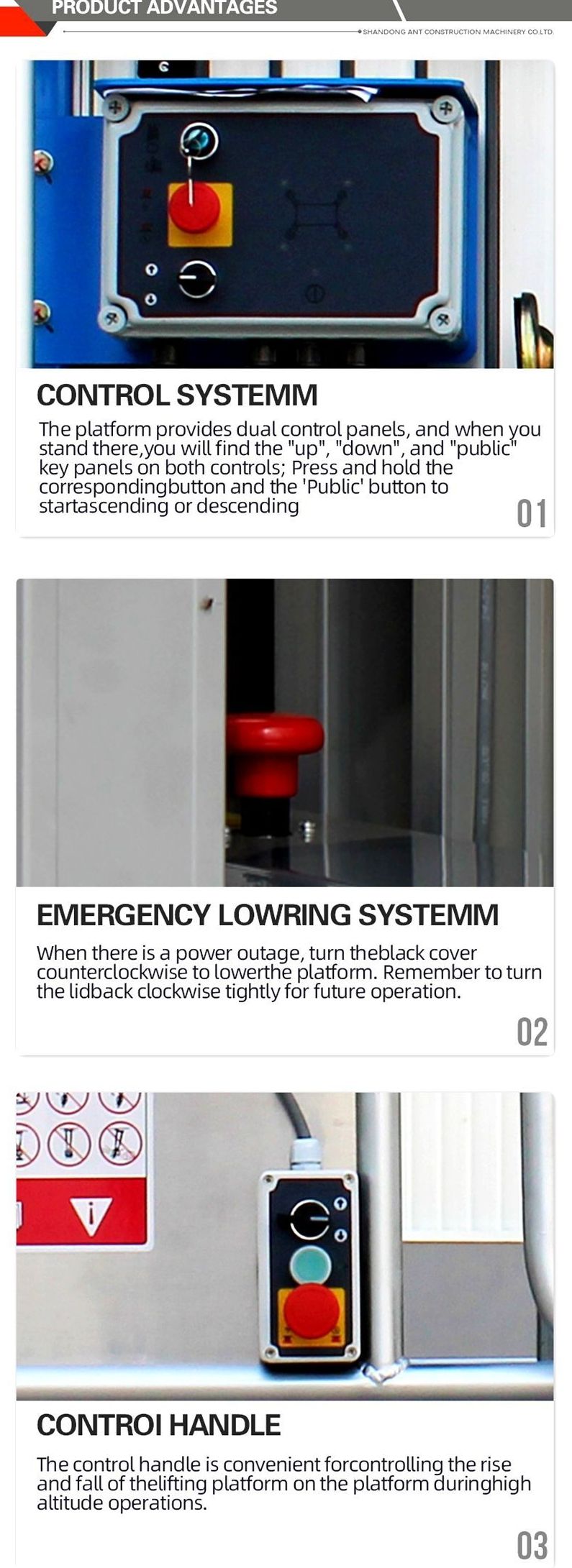

Anti-Misoperation Buttons: Dual-start protection requires simultaneous pressing of the power and function keys to activate lifting/lowering, preventing accidental activation.

Self-Locking Platform Gate: A 1.1m-high guardrail with an auto-locking safety gate disables lifting if unclosed, eliminating fall hazards.

Emergency Stop Buttons: Red emergency stop switches on both ground and platform control panels (IP65 waterproof) cut all power within 0.5 seconds.

Structural Safety

Level Indicator: Real-time tilt angle display triggers audio-visual alarms and restricts lifting when exceeding 3°, ensuring a flat support surface.

Hydraulic Pipe Explosion-Proof System: Pressure sensors in hydraulic lines automatically lock cylinders in case of sudden bursts, preventing uncontrolled descent.

Emergency Descent System: Manual pump enables platform lowering to ground within 30 seconds during power outages or failures, supporting powerless emergency operations.

Transportation Safety

Standard Forklift Slots: 150mm×80mm forklift interfaces at the bottom allow quick handling by various forklifts, reducing manual handling risks.

Dual-Power Configuration: Adaptable to Indoor/Outdoor Scenarios

Standard AC Power

A 0.75kW motor supports 220V/110V input, delivering a 0.4m/s lifting speed—ideal for continuous power environments like malls and offices with no runtime anxiety.

Optional DC Power

Equipped with a 12V/80Ah maintenance-free battery pack (optional purchase), a 1.5kW motor enables 5 hours of operation (12 lifting cycles/hour). The 12V/15A charger fully recharges in 6 hours, adapting to off-grid scenarios like outdoor billboard installation and courtyard streetlight maintenance—free from power cable constraints.

Ergonomic Optimization: Enhanced Single-Operator Convenience

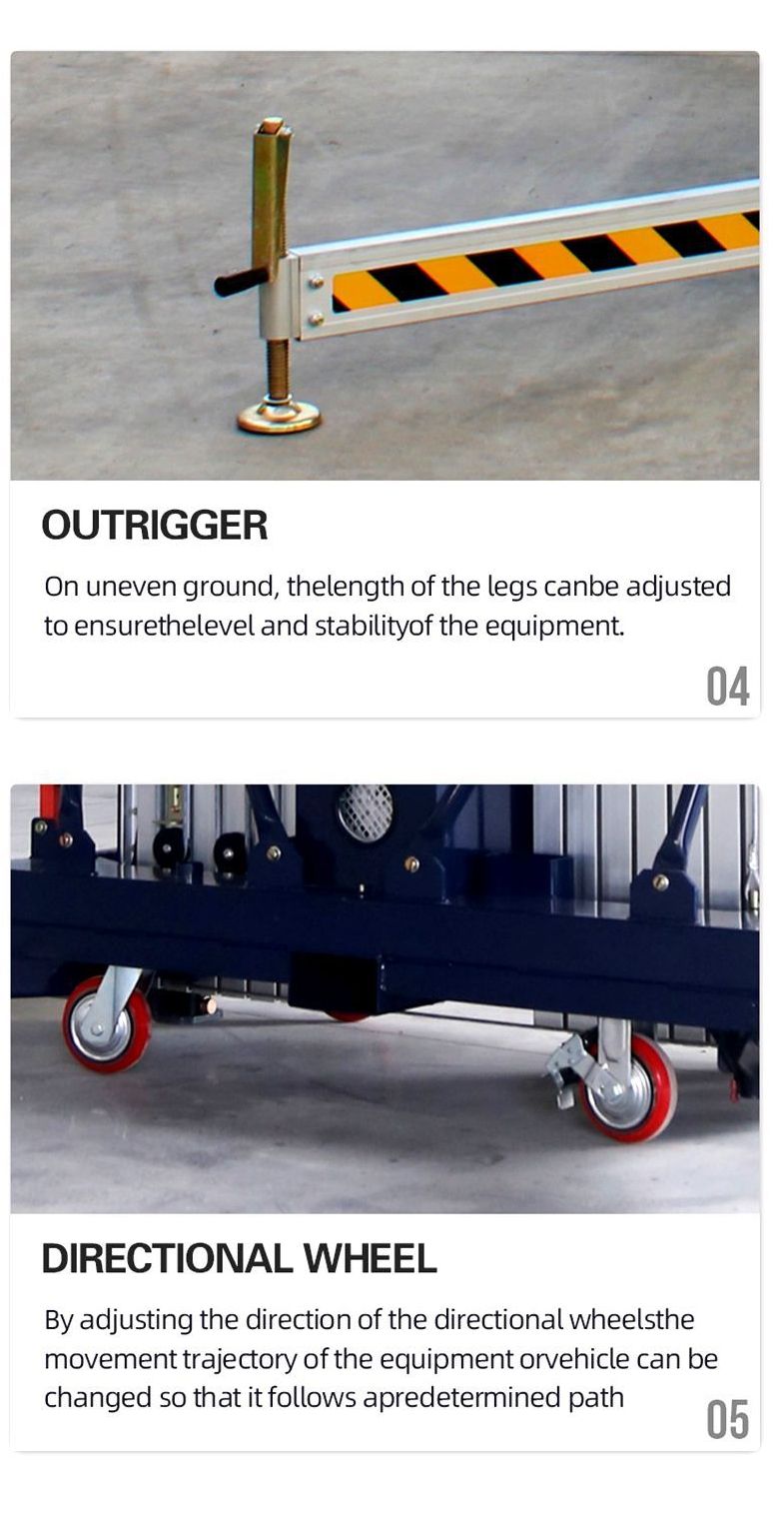

Quick Swivel-Leg Deployment

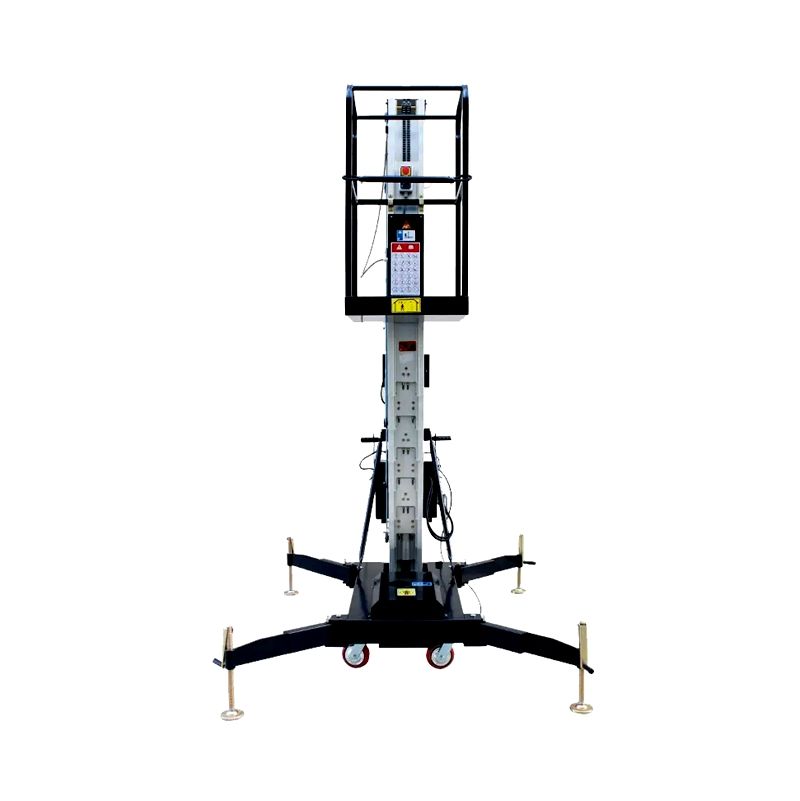

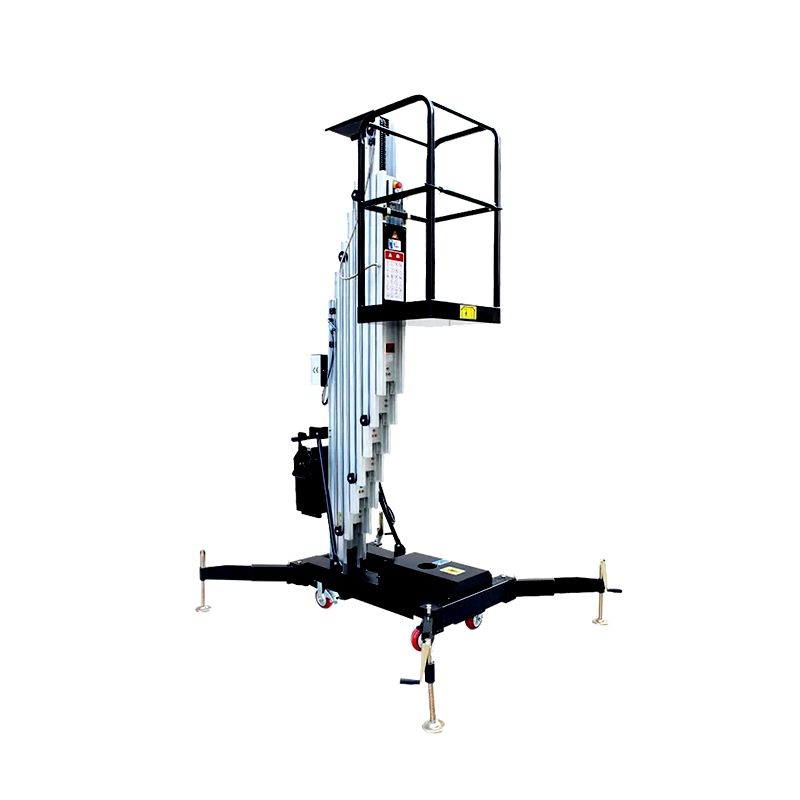

Both swivel legs adjust via lever handles, allowing single-person deployment/retraction within 90 seconds. The support area saves 20% floor space compared to traditional outrigger structures, suitable for narrow areas.

Precise Control Experience

The platform handrail integrates stepless speed control buttons (0.2–0.4m/s adjustable) with ±25mm positioning accuracy, meeting fine-operation needs like lighting installation and circuit maintenance.

Low-Noise Design

The hydraulic system maintains noise within 70dB—15% lower than similar equipment—suitable for silent venues like hospitals and libraries.
