12m Compact Single-Column Outrigger Aluminum Lift for Aerial Work Buy

Aluminium Alloy Lifting Platform​

Short Description:

This 12 m aluminum platform with outriggers Dual AC/DC power suits indoor/outdoor tasks, featuring overload protection and compact design. Easy elevator access and stable operation for factory maintenance, municipal work, and commercial installations—ideal for single-operator efficiency....


  • MODEL: ATWY1 - 12
  • Max. Working Height: 14 m
  • Max. Platform Height: 12 m
  • Loading Capacity: 120 kg
  • Occupants: 1
  • Platform Dimension: 0.67 m×0.66 m
  • Overall Height: 2.78 m
  • Overall Width: 0.76 m
  • Outrigger coverage: 1.42 m
  • WEIGHT - AC: 2.4 m×2.2 m
  • WEIGHT - DC: 520 kg
  • Power source - AC: 572 kg
  • AC Motor: 1.5 KW
  • DC (Optional): 12 V
  • DC motor: 1.5 KW
  • Charger: 12 V/15 A

Product Detail

Product Description

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

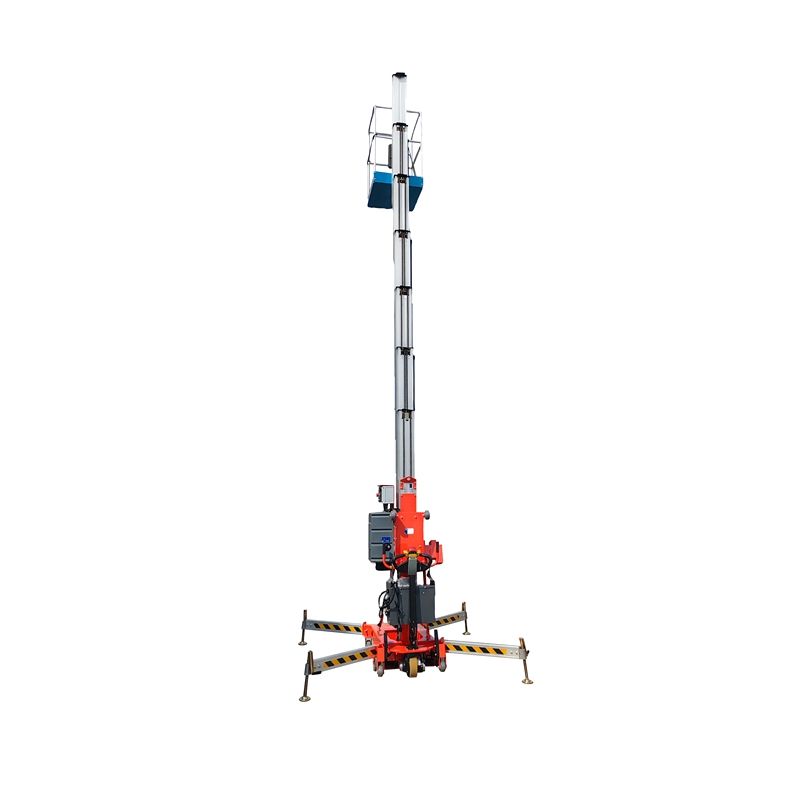

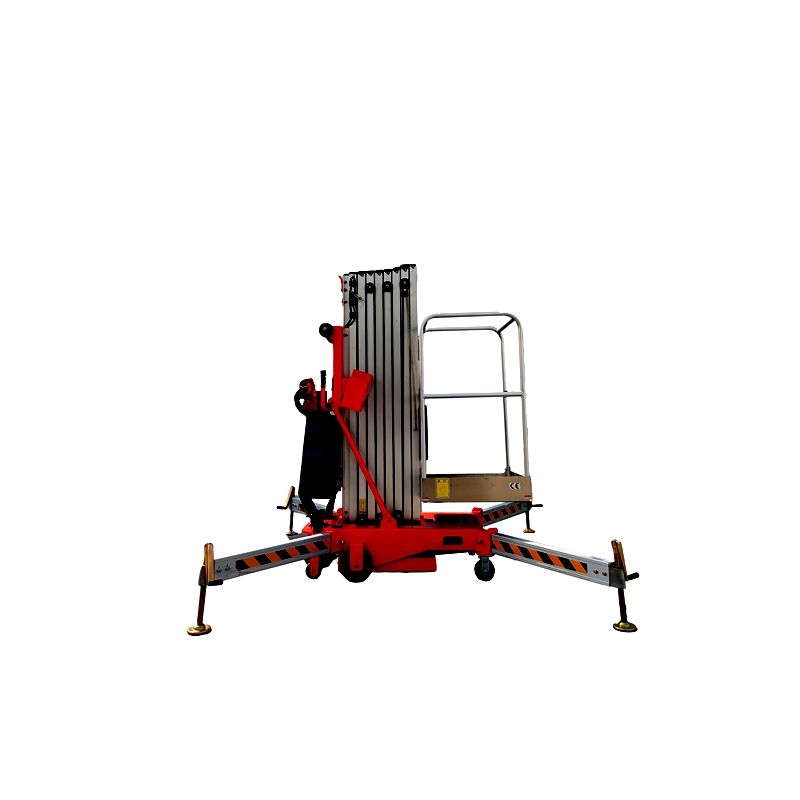

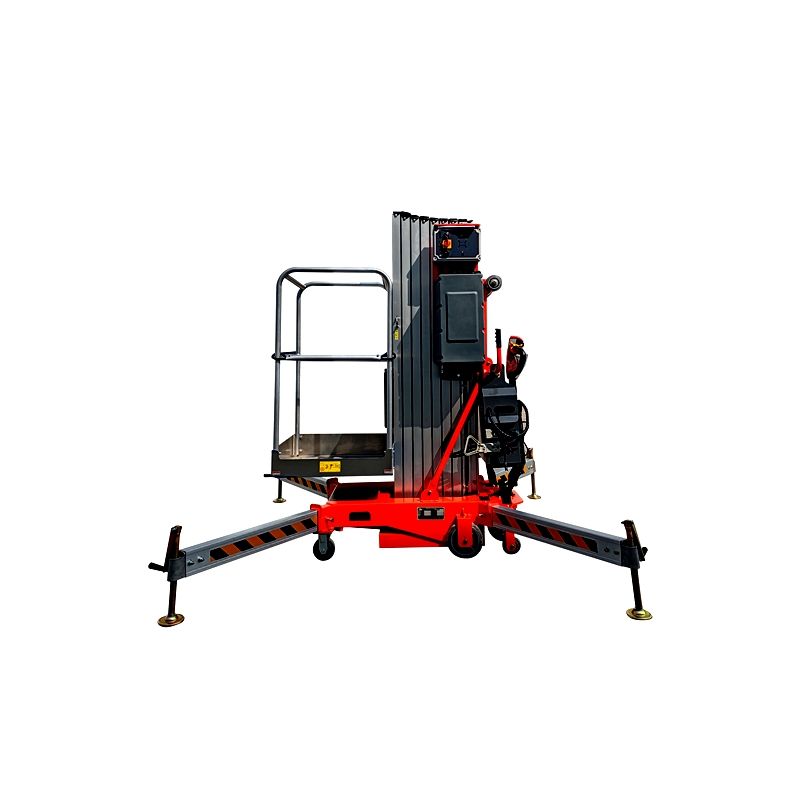

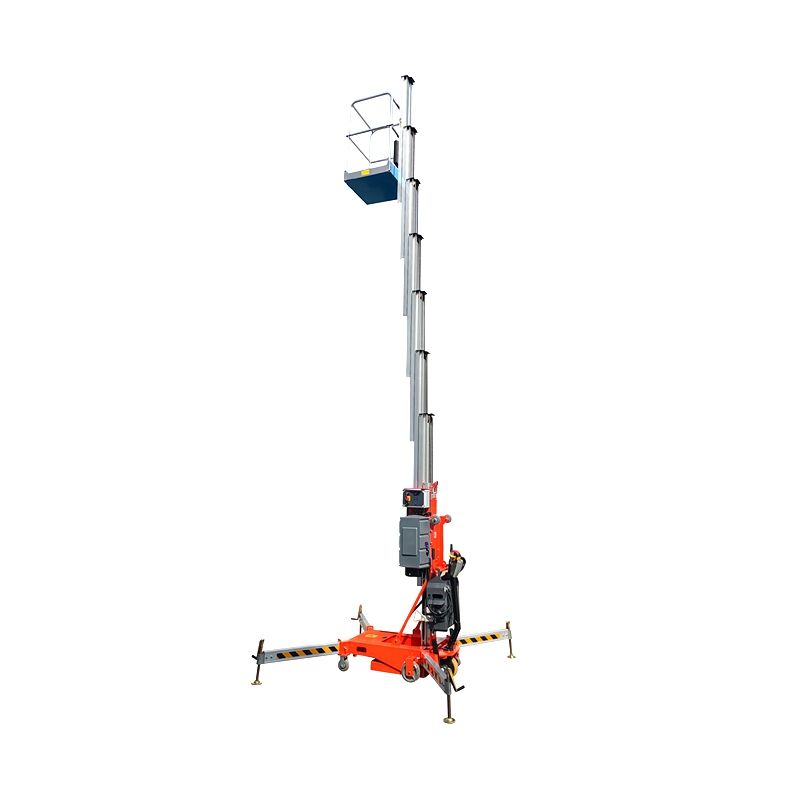

ATWY1-12 Single-Column Outrigger Mobile Aluminum Platform: Compact and Efficient Solution for 12m Aerial Work

High-Strength Single-Column Outrigger Architecture: Balance of Aerial Stability and Spatial Flexibility

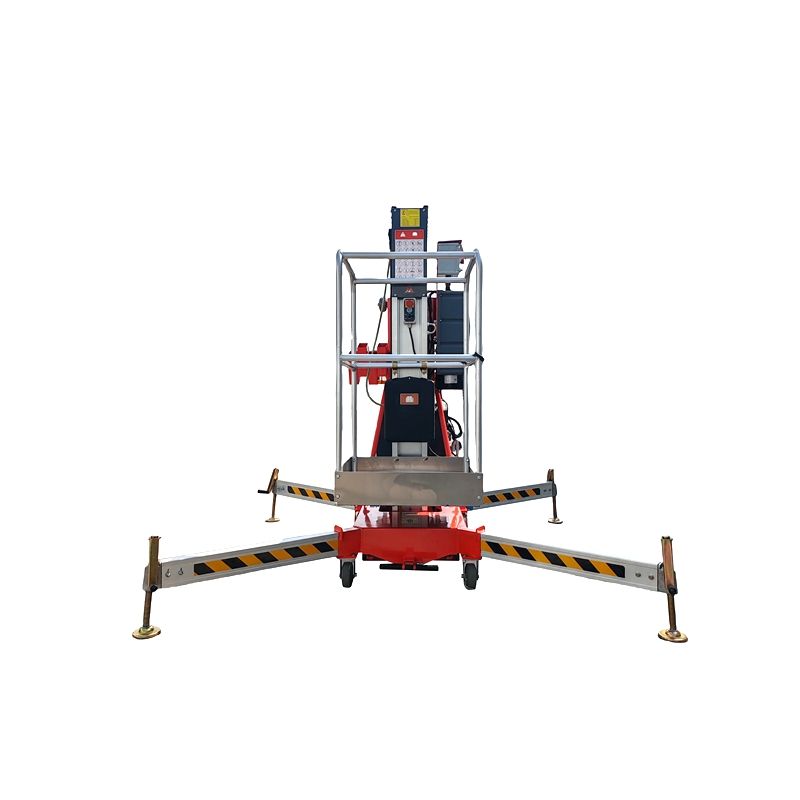

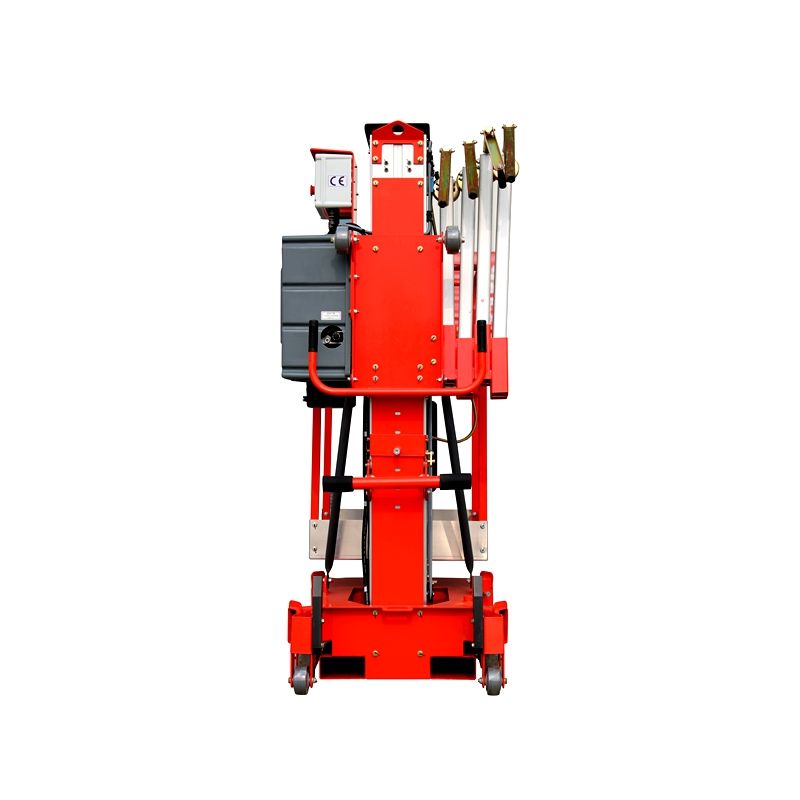

The ATWY1-12 features a single-column outrigger structure constructed from high-strength aluminum alloy, achieving a 14m maximum working height and 12m platform height while maintaining an overall weight of 520kg (AC version)/572kg (DC version)—balancing lightweight design with structural integrity. The retracted dimensions are 1.42m (L) × 0.76m (W) × 2.78m (H), allowing passage through ≥0.8m-wide corridors and most industrial elevators for easy access to narrow indoor/outdoor spaces. The deployed outrigger coverage of 2.4m × 2.2m forms a stable triangular support via mechanical locking, effectively distributing loads during aerial operations to ensure smooth operation at 120kg load capacity, meeting the needs of single-operator medium-high altitude tasks with tools. The 0.67m × 0.66m non-slip work platform includes guardrails and kickplates for basic aerial operation safety.

Dual-Power Adaptation System: Full-Scene Energy Solution

The platform offers two power configurations to suit different operational environments:

AC Power (Standard): Supports 380V/220V/110V power input, driven by a 1.5kW AC motor for the hydraulic lifting system. Ideal for fixed-power scenarios like factories and warehouses, it enables high-frequency continuous operation for tasks such as production line overhead equipment maintenance and warehouse high-bay racking inventory.

DC Power (Optional): Adopts a 1.5kW DC motor with 12V power supply, paired with a 12V/15A charger (separate battery pack required). Suitable for outdoor off-grid environments, it supports flexible mobile operations for municipal streetlight maintenance and construction site temporary lifting, eliminating cable constraints.

The hydraulic drive system ensures smooth lifting/descending, with speeds adjusting intelligently based on load to balance efficiency and safety.

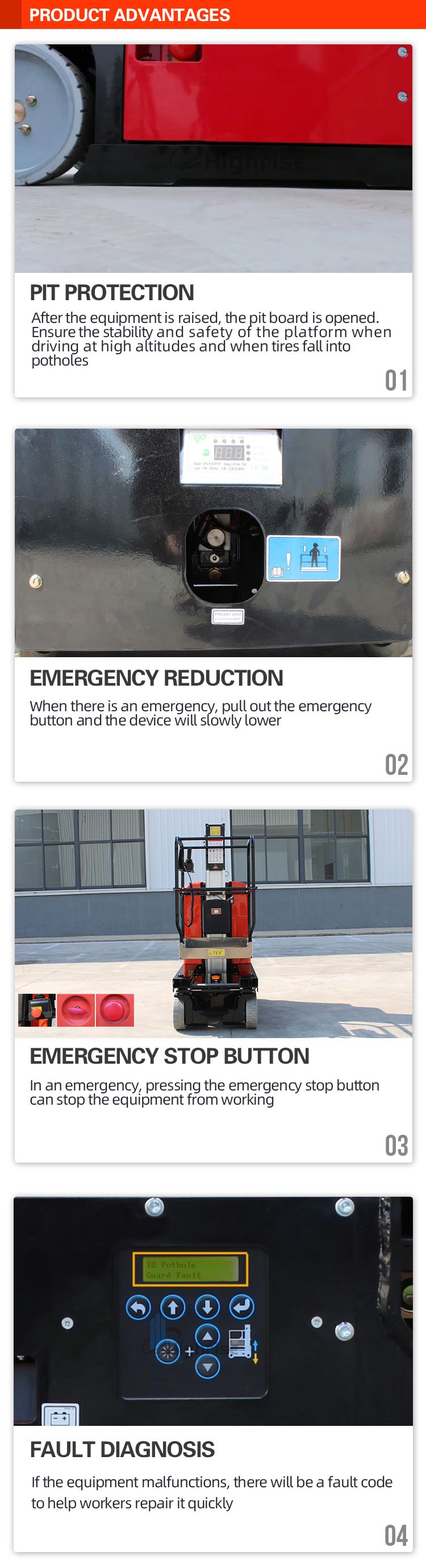

Basic Safety and Operation Design

The platform is equipped with multiple basic safety features:

Overload Protection: The hydraulic system automatically restricts upward movement when the load exceeds 120kg to avoid overload risks.

Emergency Stop: Dual-control panels (ground/platform) feature emergency stop buttons for quick equipment locking in emergencies.

Limit Switches: Top and bottom mast limit switches prevent over-travel, ensuring operational boundary safety.

The outriggers feature manual deployment/retraction, allowing single operators to complete setup/retrieval in 1 minute. Universal wheels enable convenient short-distance movement, enhancing multi-site transition efficiency.

Core Performance Parameters

Working Height: 14m maximum working height, 12m platform height, suitable for medium-high altitude equipment maintenance, installation, and cleaning tasks.

Load Capacity: 120kg rated load, supporting single-operator tasks with tools, ideal for lightweight aerial operations.

Spatial Dimensions: Compact body design allows passage through narrow corridors; deployed outriggers cover a larger ground area for enhanced anti-tip stability.

Application Scenarios

Industrial Scenarios: Pipe maintenance and equipment debugging in factory workshops, especially around space-constrained production lines; high-bay racking inventory and maintenance in warehouses, with a narrow body navigating between racks.

Commercial & Municipal Use: Aerial decoration installation and lighting replacement in malls and hotels, compatible with elevator transport for high-rise operations; streetlight maintenance and traffic sign replacement in municipal projects, with the DC version supporting independent off-grid work.

Construction Sites: Temporary lifting for exterior wall painting, window installation, and other tasks on small construction projects, with outriggers stabilizing on flat ground.

Core Advantages

Height-Load Balance: 12m platform height meets medium-high altitude needs, with 120kg load capacity suitable for single-operator tool carrying, avoiding cost waste from over-engineering.

Dual-Power Flexibility: AC/DC configurations cover on-grid/off-grid scenarios, reducing dependency on specific power sources and expanding application ranges.

Compact Portability: Narrow-body and lightweight design address the challenge of traditional aerial equipment in tight spaces, ideal for frequent mobile tasks.

Basic Safety Assurance: Load restriction, limit protection, and dual-control emergency stops provide essential safety for single-operator tasks, minimizing operational risks.

Ordering Information

Standard Configuration: Includes AC power system, mechanical outriggers, dual-control panels, and basic safety devices.

Optional Accessories: DC power module (requires separate battery pack).

The equipment undergoes strict load and stability testing before delivery to ensure core performance parameters meet standards, suitable for medium-high altitude operations in manufacturing, commercial, and municipal sectors.

The ATWY1-12 stands as a reliable choice for medium-high altitude narrow-space work, balancing safety, efficiency, and cost-effectiveness with practical performance and compact design—ideal for users prioritizing height, portability, and power flexibility.
