ATWY2-10 Dual-Column Outrigger Mobile Aluminum Platform: 10m Two-Person 250kg Aerial Work Solution

Dual-Column Outrigger Architecture: Balance of 12m Working Height and Stable Support

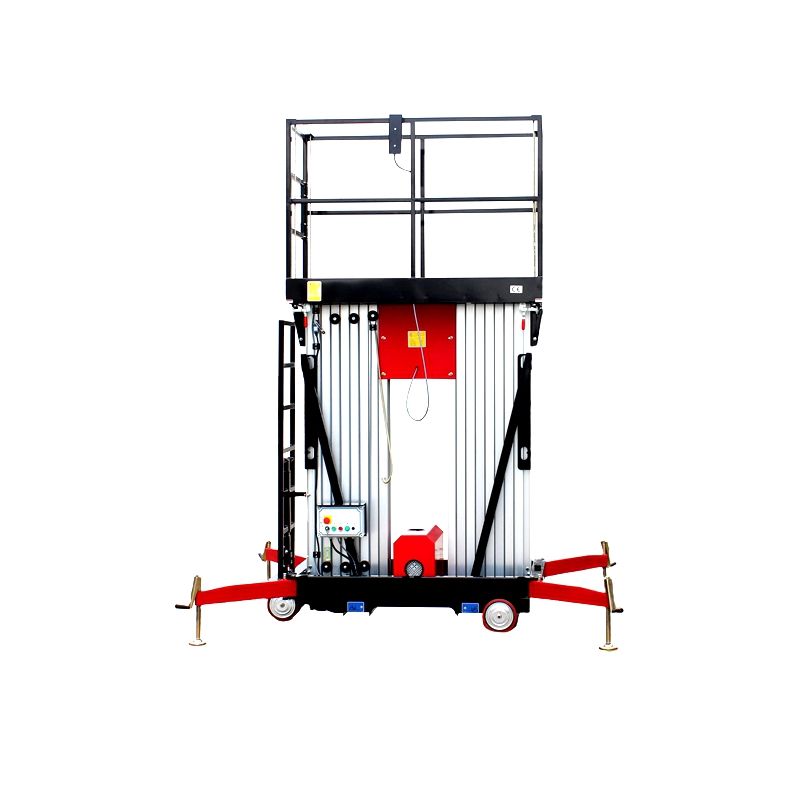

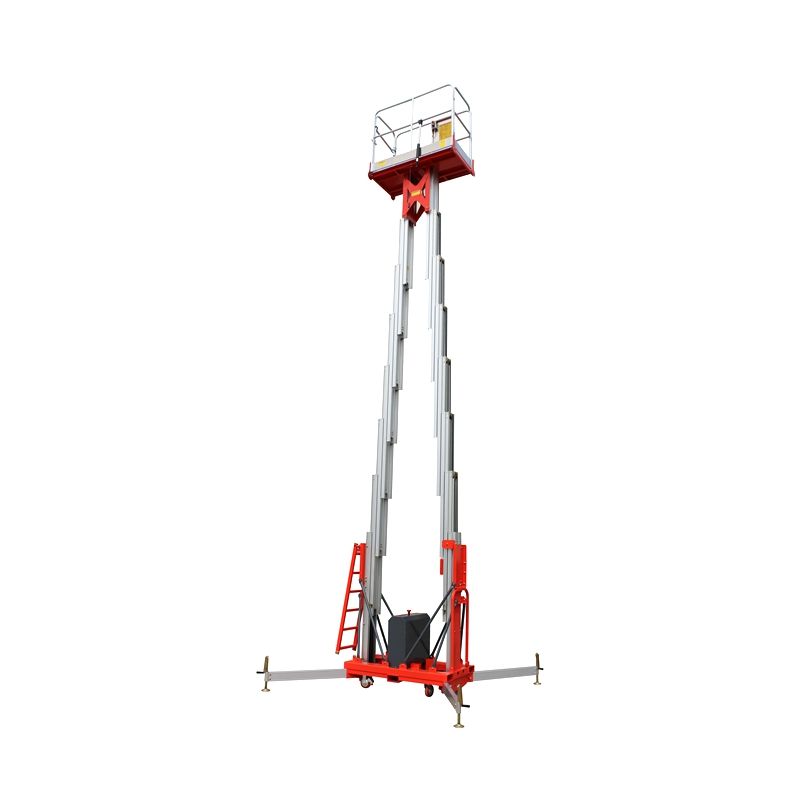

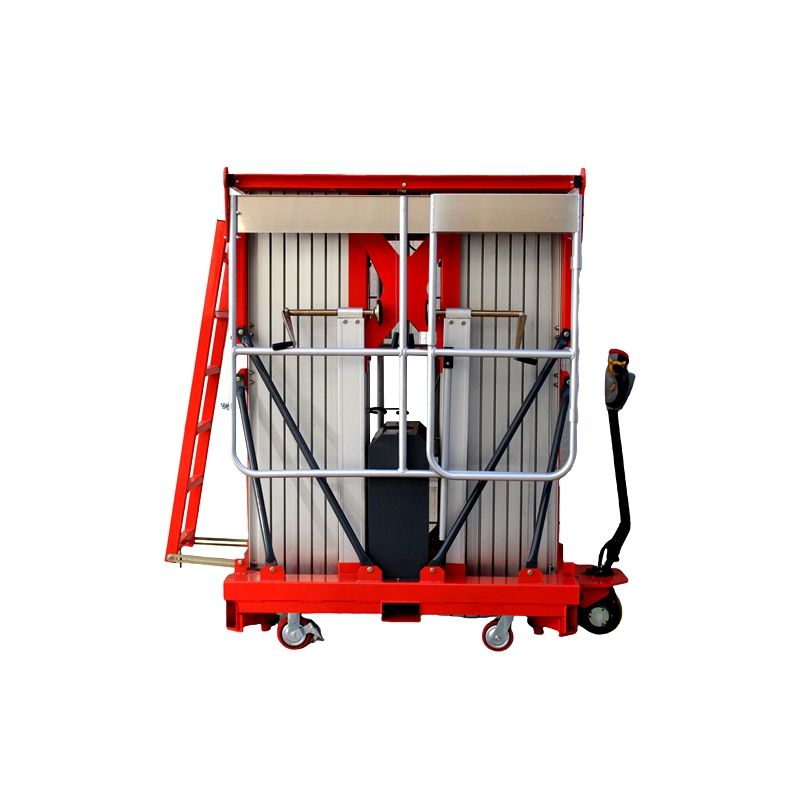

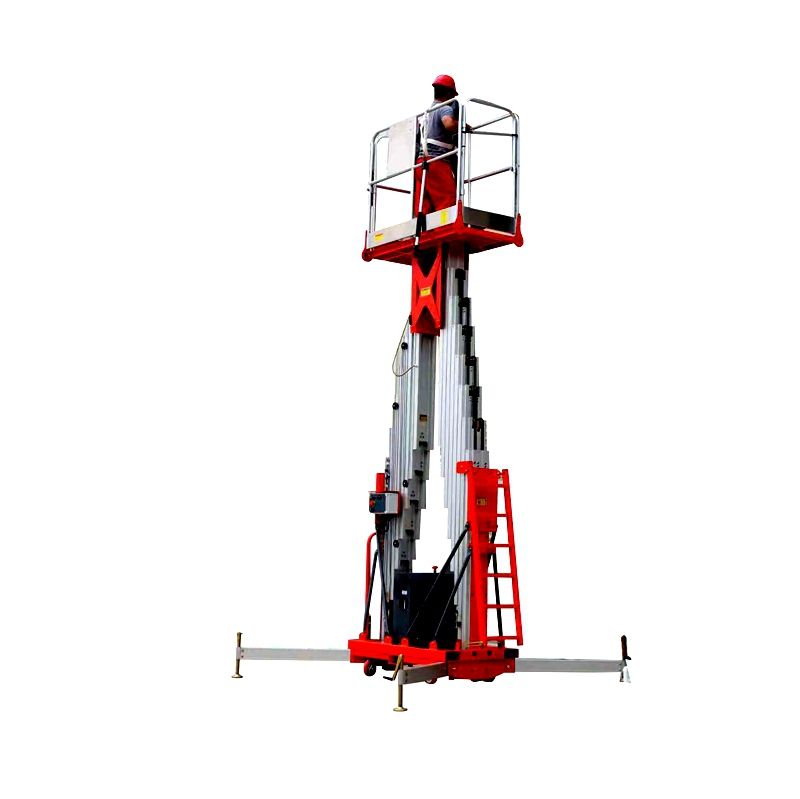

The ATWY2-10 adopts a dual-column outrigger structure, achieving a 12m maximum working height and 10m platform height with a 250kg rated load for 2-person collaborative operations. The 1.45m×0.7m non-slip work platform adapts to two-person tool placement, while the retracted body dimensions (1.48m×0.81m×1.99m) allow passage through ≥0.9m-wide corridors and standard elevators (car size ≥1.5m×1.1m). The deployed 2.3m×2.2m outrigger coverage forms a stable base, with platform sway ≤12mm at full load—suitable for construction installation and equipment maintenance requiring stable support.

Full-Scene Dual-Power Hydraulic System

Industrial-Grade AC Power (Standard Configuration)

Supports 380V/220V/110V power input, driven by a 1.5kW motor to achieve 0.6m/s smooth lifting speed. Ideal for continuous power scenarios like factory production line maintenance and warehouse high-bay racking, enabling 24/7 operation.

DC Power System (Optional)

Powered by two 12V batteries, a 1.6kW DC motor drives the hydraulic pump station, supporting 4 hours of continuous operation (10 lifting cycles/hour at full charge). The 12V/15A charger completes a full charge in 6 hours, adapting to off-grid environments like municipal streetlight maintenance and construction sites—free from cable constraints.

The dual-cylinder synchronous lifting hydraulic system intelligently adjusts lifting speed according to load, with noise controlled within 78dB to meet indoor silent operation requirements.

Multi-Layer Safety Protection and Ergonomic Design

Structural Safety

Outriggers feature dual locking with mechanical pins and hydraulic locks. An audio-visual alarm triggers and disables lifting when the tilt angle exceeds 3°; power is automatically cut off when the load exceeds 275kg (110% of rating) to prevent overload tipping.

Operational Safety

Both ground and platform dual-control panels are equipped with IP65 waterproof emergency stop buttons. A manual pump enables emergency descent during power outages. Dual top limit switches prevent over-travel, and bottom buffer devices ensure work boundary safety.

Ergonomics

The platform handrail integrates 0.3–0.6m/s variable frequency speed control buttons with ±35mm positioning accuracy. Four universal load-bearing wheels support short-distance movement by two persons. The quick-release outrigger design allows deployment/retraction within 45 seconds by two persons—30% faster transition efficiency.
