16 m New High-Performance Dual-Column Aluminum Platform Top Choice

Aluminium Alloy Lifting Platform​

Short Description:

16 m dual-column aluminum platform AC/DC dual power adapts to high-rise maintenance, power line work, and indoor venues—narrow body for elevator access, quick deploy, safety-certified for efficient solo aerial operations....


  • MODEL: ATWY2 - 16
  • Max. Working Height: 18 m
  • Max. Platform Height: 16 m
  • Loading Capacity: 150 kg
  • Occupants: 1
  • Platform Dimension: 1.8 m×0.7 m
  • Overall Height: 2.68 m
  • Overall Width: 0.81 m
  • Overall Length: 1.88 m
  • Outrigger coverage: 2.9 m×2.4 m
  • WEIGHT - AC: 996 kg
  • WEIGHT - DC: 1046 kg
  • Power source - AC: 380 V/220 V/110 V
  • AC Motor: 1.5 KW
  • DC (Optional): 2 x 12 V
  • DC motor: 1.6 KW
  • Charger: 12 V/15 A

Product Detail

Product Description

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

Aluminium Alloy Lifting Platform

ATWY2-16 Dual-Column Outrigger Mobile Aluminum Platform: 16m Professional Solution for Single-Person Aerial Operations

Ultra-High Altitude Dual-Column Architecture: Breakthrough in 18m Working Height and Lightweight Design

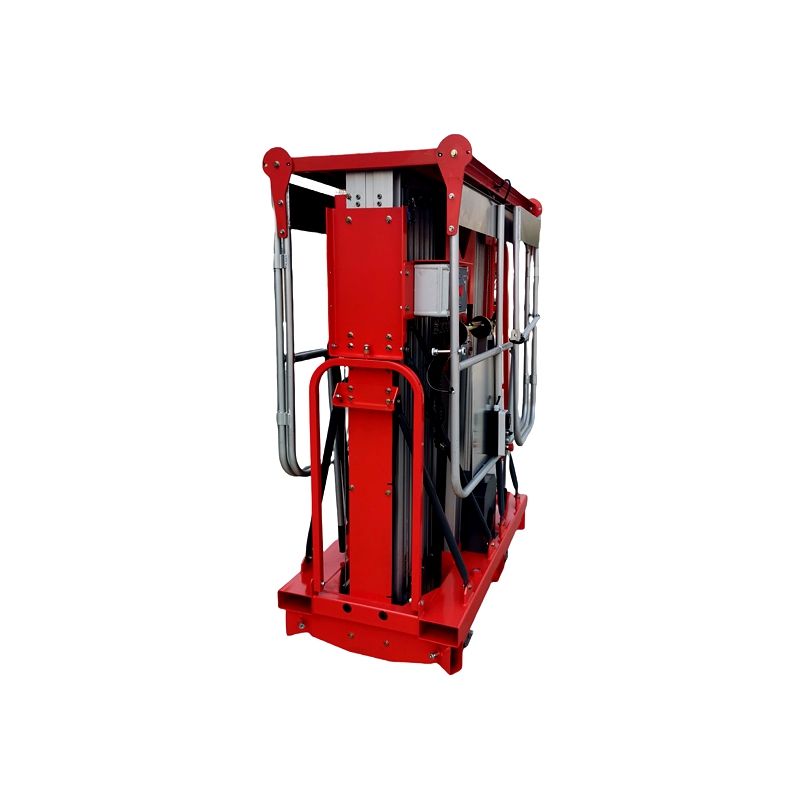

The ATWY2-16 features a dual-column outrigger high-strength aluminum alloy structure, achieving an 18m maximum working height and 16m platform height, with a 150kg rated load optimized for single-person aerial operations. The 1.8m×0.7m non-slip work platform is equipped with tool holders and material trays, adapting to single-person live-line work or fine installation needs. With retracted dimensions of 1.88m×0.81m×2.68m, it passes through standard construction elevators (car size ≥1.9m×1.1m). The deployed 2.9m×2.4m outrigger support forms a triangular stable structure, with platform sway ≤20mm at 18m height—compliant with GB/T 27548-2011 safety specifications for aerial work equipment.

Dual-Power Hydraulic System: Full-Scene Energy Adaptation Solution

Industrial-Grade AC Power (Standard Configuration)

Supports 380V/220V/110V wide-voltage input, driven by a 1.5kW motor to operate the synchronous belt hydraulic system, achieving a smooth lifting speed of 0.5m/s. Ideal for 8-hour continuous operations in scenarios like 16m-high lighting maintenance in indoor venues and 3D equipment maintenance in factories.

DC Power System (Optional)

Equipped with two 12V maintenance-free batteries, a 1.6kW DC motor drives the hydraulic pump station, enabling 5 hours of operation at full charge (6 lifting cycles/hour). The 12V/15A intelligent charger fully charges in 6 hours, adapting to off-grid environments like mountain power tower maintenance and outdoor communication base station repair—free from cable constraints for all-terrain operations.

The dual-cylinder asynchronous lifting technology automatically adjusts lifting speed based on load, with noise controlled within 75dB to meet silent operation requirements in hospitals, museums, and other quiet venues.

Single-Person Operation Safety System and Ergonomic Innovation

Intelligent Safety Protection

Outriggers use dual locking with mechanical pins and hydraulic locks. An audio-visual alarm triggers and disables lifting when the tilt angle exceeds 2.5°; a pressure sensor cuts power to prevent overload tipping if the load exceeds 165kg (110% of rating). The dual columns are equipped with laser limit devices for ±30mm positioning accuracy, and bottom buffer devices reduce landing impact.

Single-Person Operation Optimization

The platform handrail integrates one-key lifting buttons and emergency stop switches, with IP65 waterproof design for rainy operations. The ground control panel supports remote operation. Four universal load-bearing wheels combined with a power-assisted handle allow single-person short-distance movement. The quick-release outrigger design enables single-person deployment/retraction within 90 seconds—35% higher transition efficiency than similar products.
