ATWY2-8 Dual-Column Outrigger Mobile Aluminum Platform: Efficient Load-Bearing Solution for 8m Two-Person Aerial Work

Dual-Column High-Strength Architecture: The Golden Combination of 250kg Load and 10m Working Height

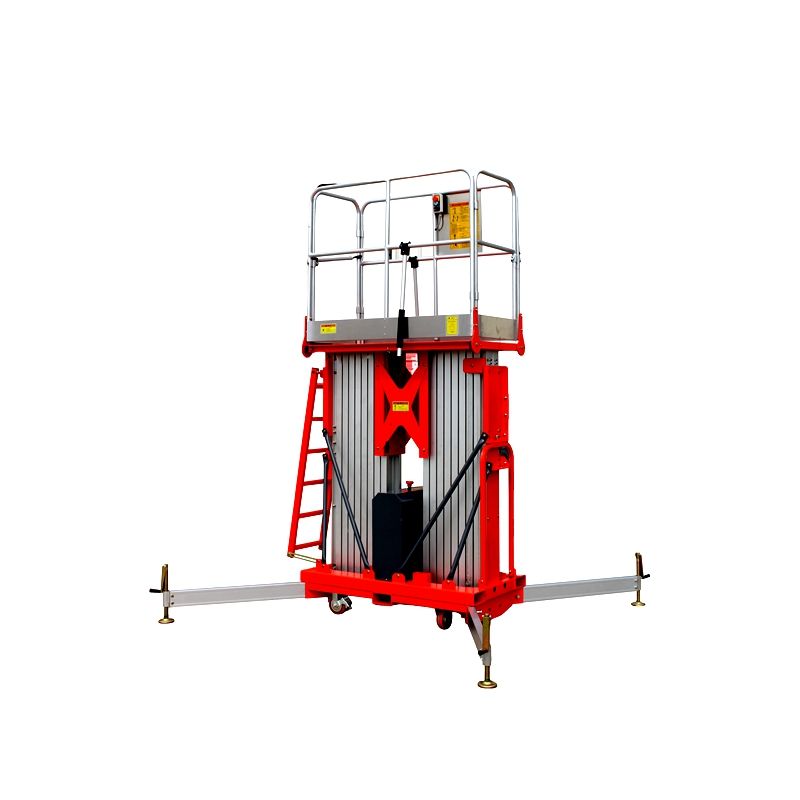

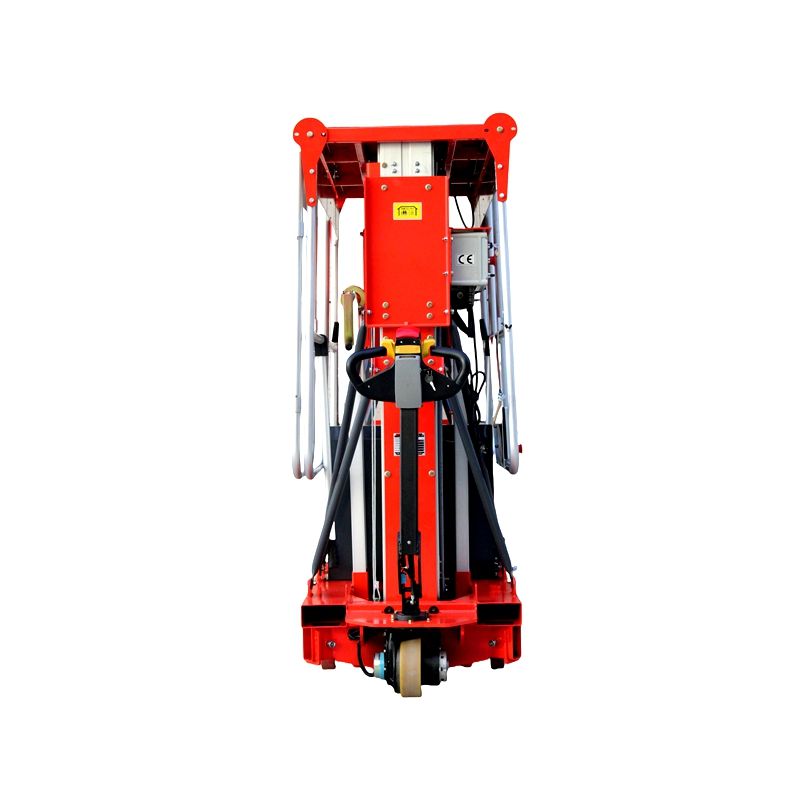

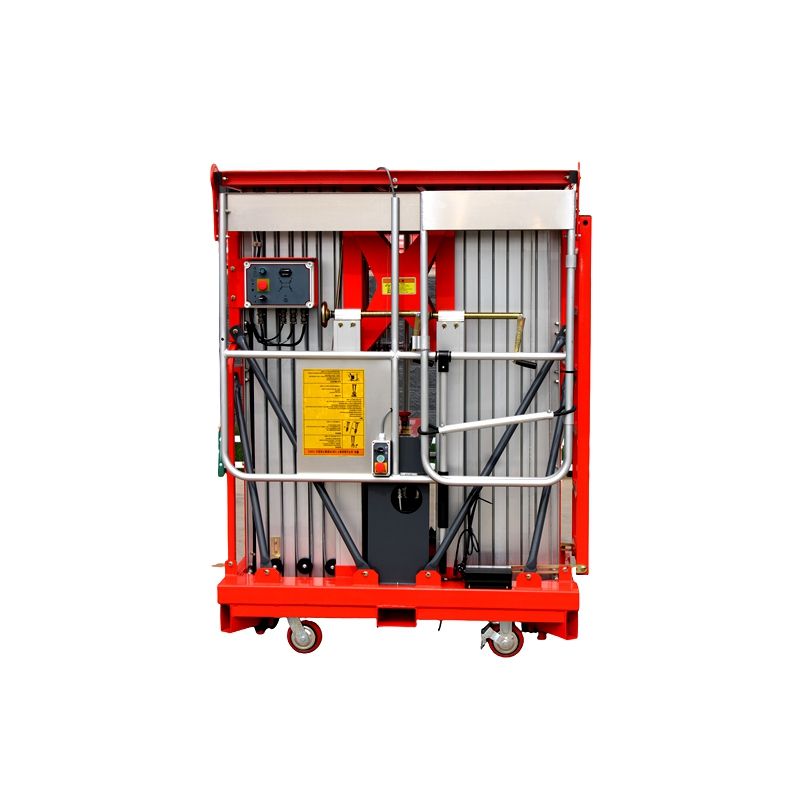

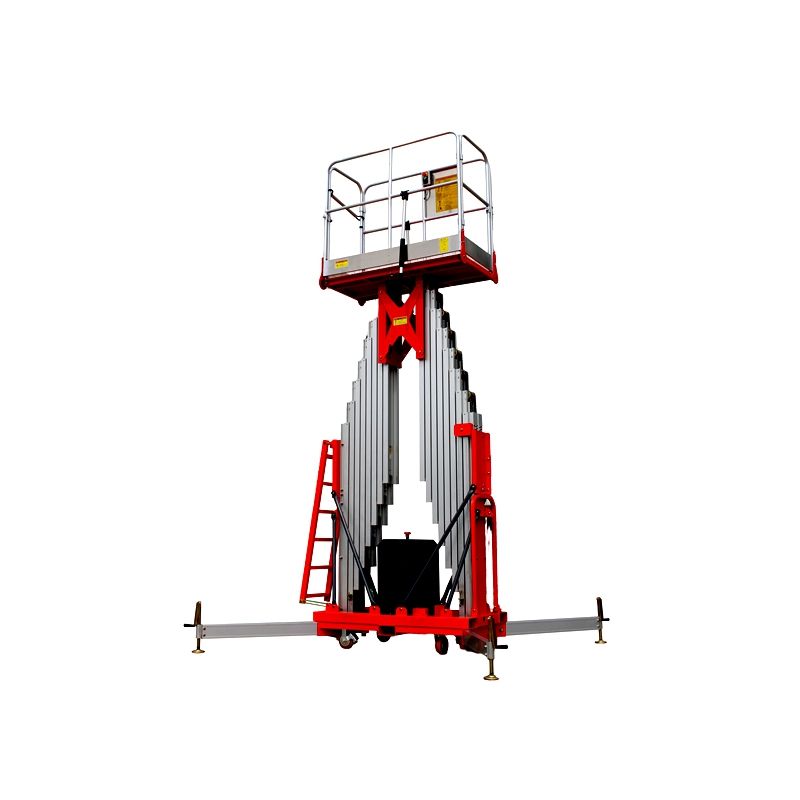

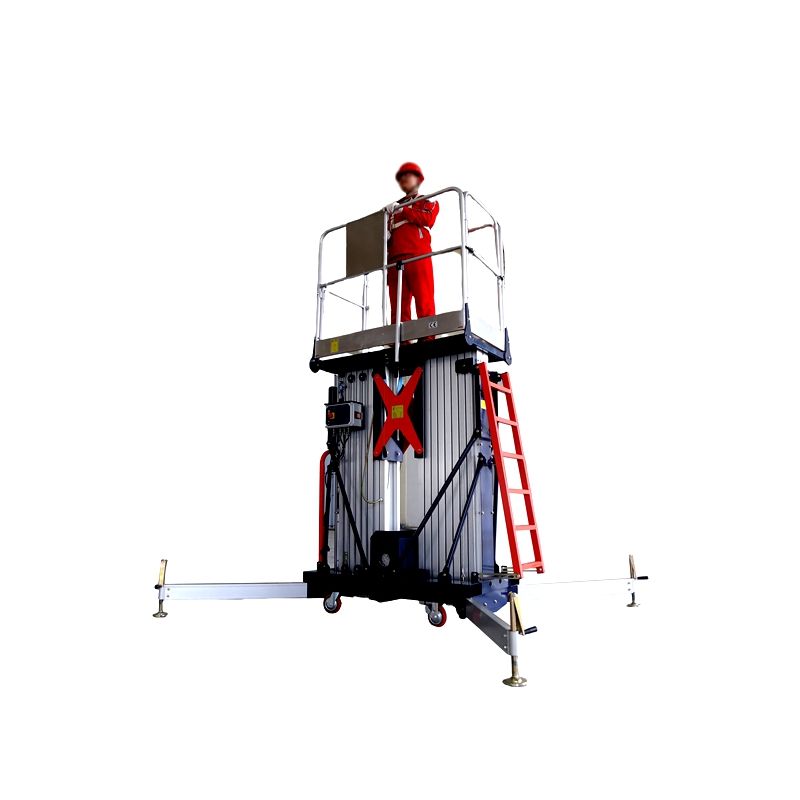

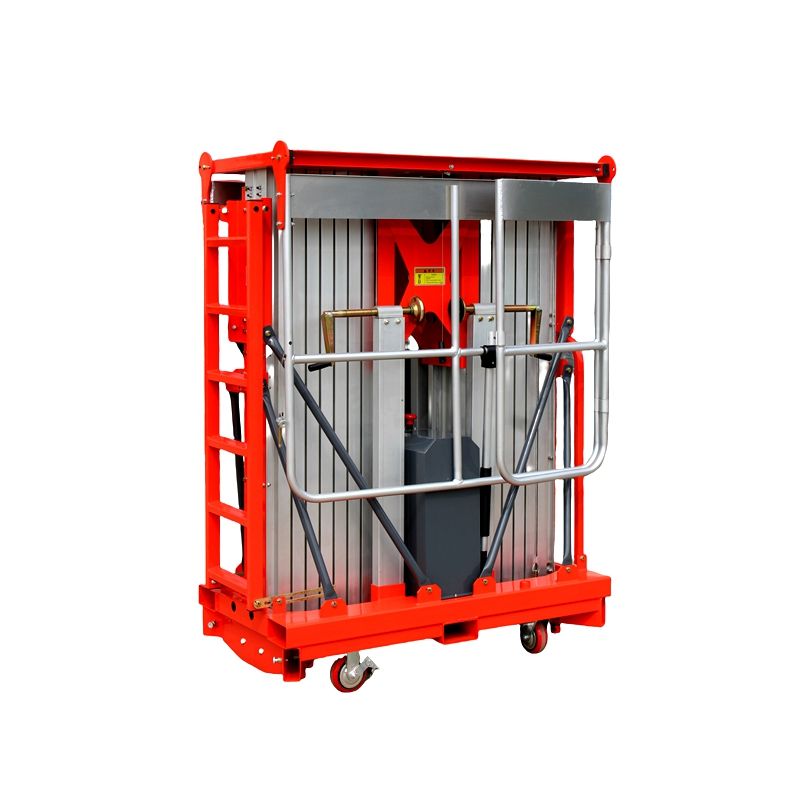

The ATWY2-8 features a dual-column parallel 6061-T6 aluminum alloy structure, strengthened by T6 heat treatment to achieve a tensile strength of 240MPa, increasing the anti-tip moment by 40% compared to single-column designs. It achieves a 10m maximum working height and 8m platform height while supporting 2-person collaborative operations with a 250kg rated load. The 1.45m × 0.7m non-slip platform offers 110% more area than single-column models, adapting to tool placement and aerial collaboration for two persons. The retracted body dimensions are 1.48m × 0.81m × 1.99m, allowing passage through ≥0.9m-wide corridors and standard freight elevators (car size ≥1.5m × 1.1m). The deployed 2.1m × 1.7m outrigger coverage forms a quadrilateral stable structure, with platform sway ≤12mm under 250kg load—suitable for fine operations like electromechanical installation and decoration.

Dual-Power Hydraulic Drive System: Full-Scene Energy Adaptation

Industrial-Grade AC Power (Standard Configuration)

Supports 380V/220V/110V three-phase/single-phase power input. A 1.5kW motor with synchronous belt drive achieves a smooth lifting speed of 0.6m/s, ideal for continuous operations such as factory production line maintenance and logistics warehouse two-person high-bay racking. It runs 24/7 when plugged in.

DC Power System (Optional)

Powered by two 12V batteries in series, a 1.6kW DC motor drives the hydraulic pump station, supporting 4 hours of continuous operation (10 lifting cycles/hour at full charge). The 12V/15A charger completes a full charge in 6 hours, adapting to outdoor municipal streetlight maintenance and construction site temporary lifting—free from cable constraints for mobile work.

The hydraulic system uses dual-cylinder synchronous lifting technology, intelligently matching lifting/descending speed to load weight with noise controlled within 78dB, meeting indoor silent operation requirements.

Multi-Layer Safety Protection and Operation Design

Structural Safety

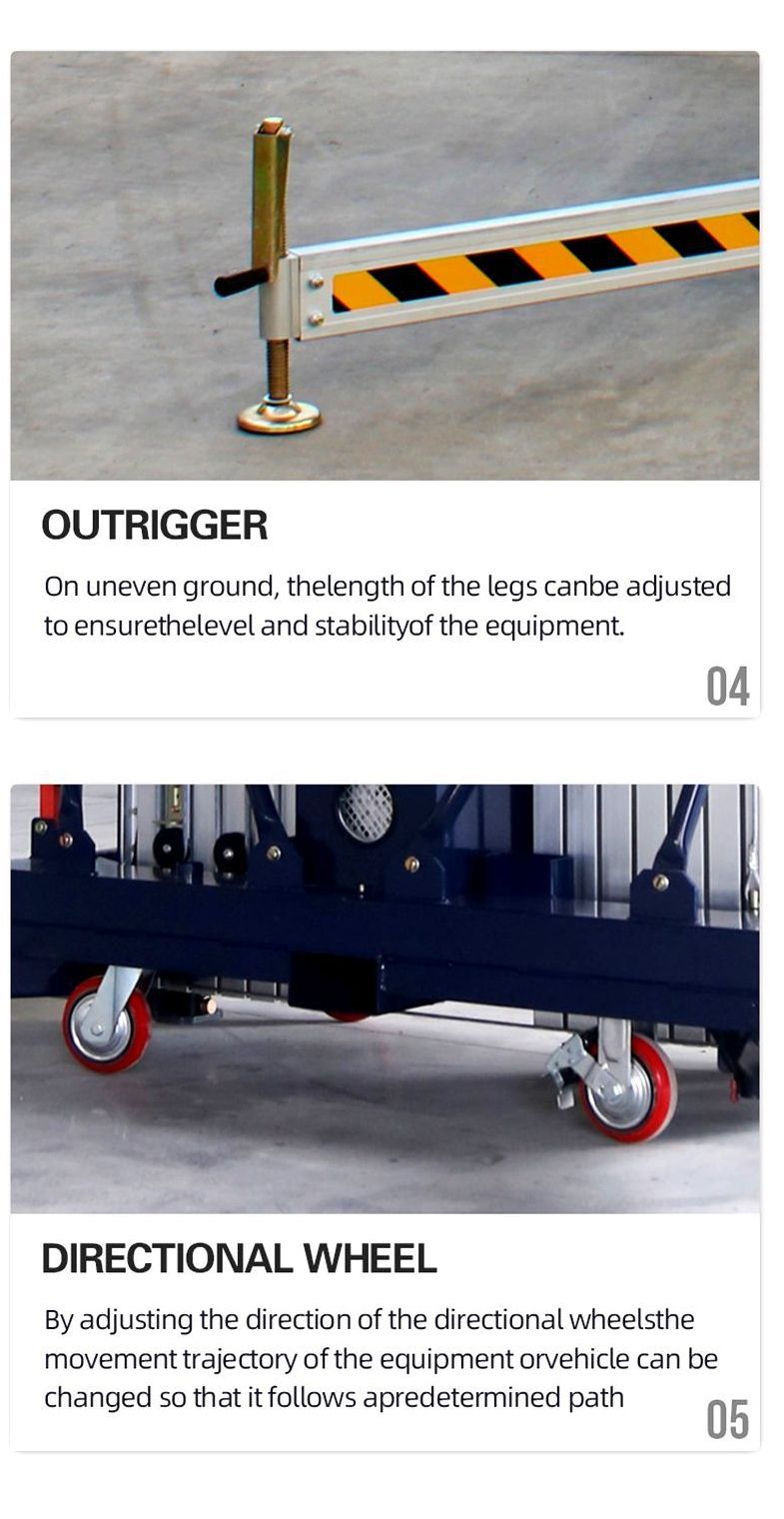

Outriggers lock doubly with mechanical pins and hydraulic locks. An audio-visual alarm triggers and disables lifting when the tilt angle exceeds 3°; a pressure sensor cuts power to prevent overload tipping if the load exceeds 275kg (110% of rating).

Operational Safety

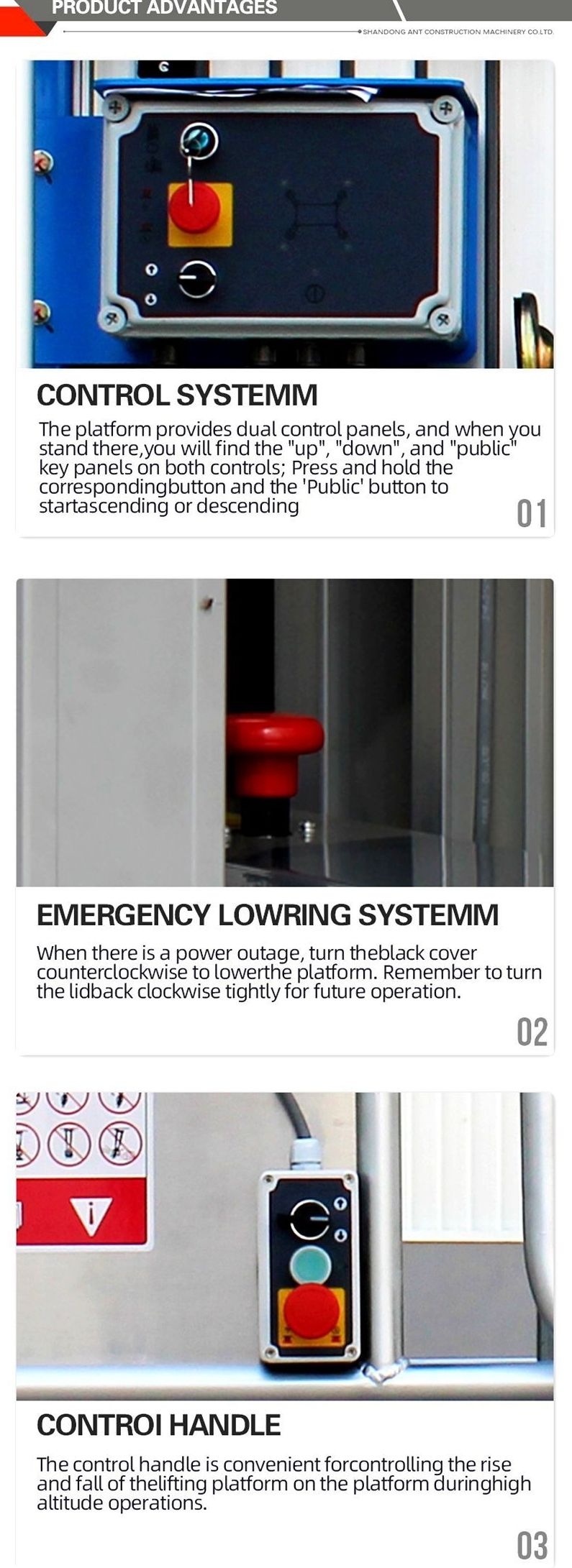

Both ground and platform dual-control panels feature IP65 waterproof emergency stop buttons. A manual pump enables emergency descent during power outages. Dual limit switches at the top of dual columns prevent over-travel, and bottom buffer devices avoid impact—compliant with GB/T 27548-2011 safety standards.

Ergonomics

The platform handrail integrates variable frequency speed control buttons (0.3–0.6m/s adjustable) with ±35mm positioning accuracy. Four universal load-bearing wheels allow two persons to push for short-distance movement. The quick-release outrigger design enables two persons to complete deployment/retraction within 45 seconds—30% more efficient than single-column platforms.
