ATWY2-12 Dual-Column Outrigger Mobile Aluminum Platform: 12m High-Altitude 200kg Two-Person Efficient Operation Solution

Dual-Column High-Strength Architecture: Technical Breakthrough in 14m Working Height and Stable Support

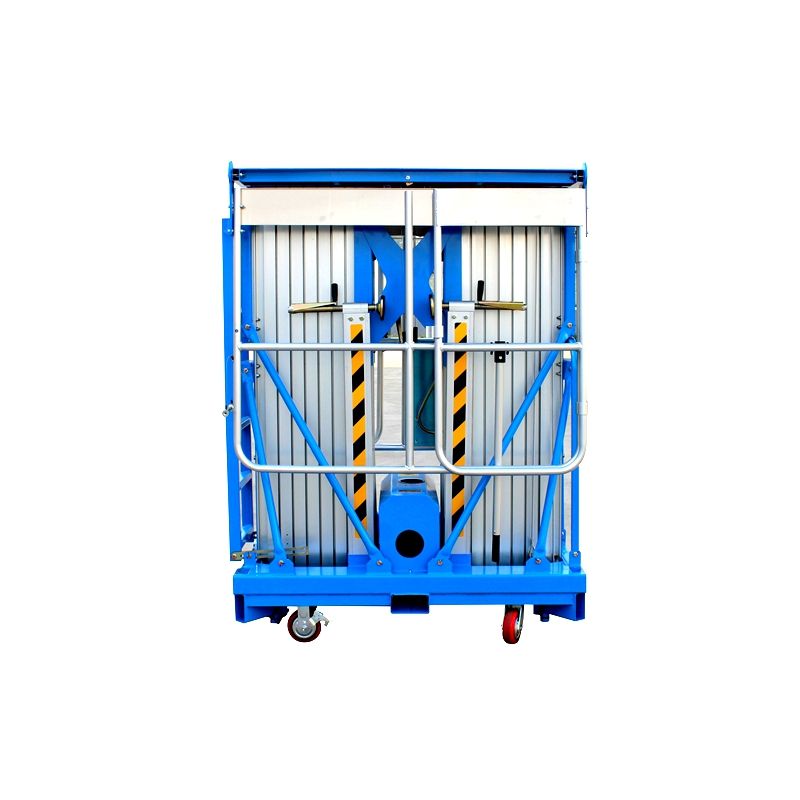

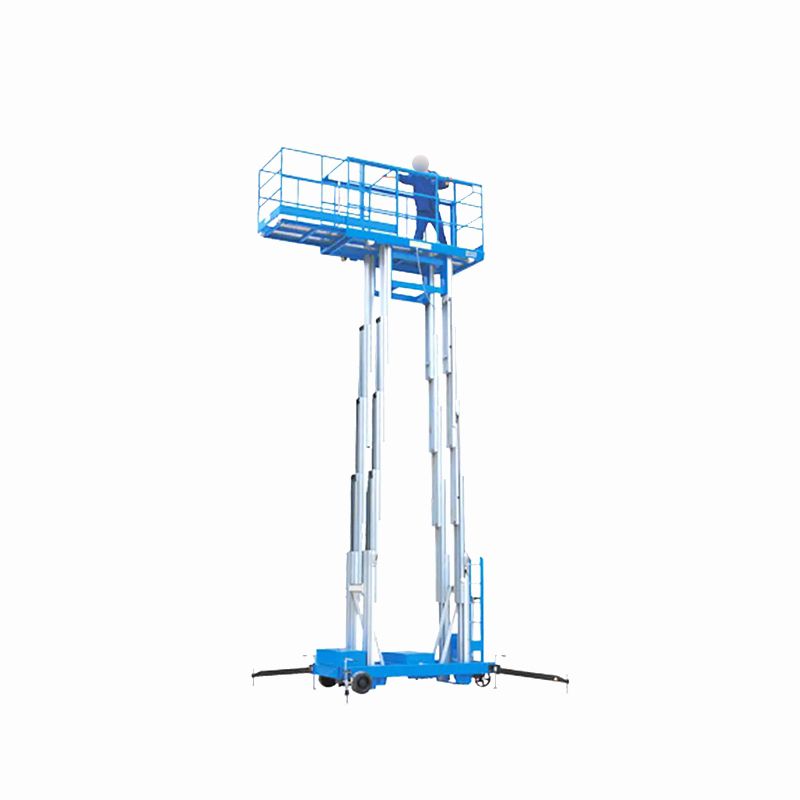

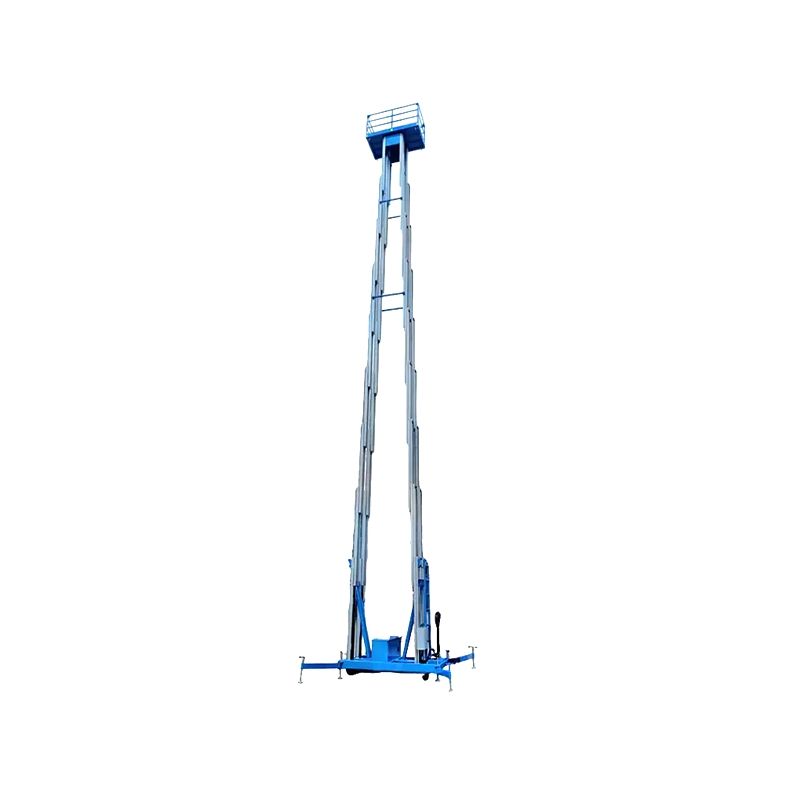

The ATWY2-12 features a dual-column outrigger structure, achieving a maximum working height of 14m and platform height of 12m, with a rated load capacity of 200kg for two-person collaborative operations. The 1.45m×0.7m non-slip work platform accommodates tool placement for two operators, while the retracted dimensions of 1.48m×0.81m×1.99m allow passage through corridors ≥0.9m wide and standard elevators (car size ≥1.5m×1.1m). The deployed outrigger coverage of 2.5m×2.4m forms a stable quadrilateral base, limiting platform sway to ≤15mm at full load—ideal for high-rise building exterior construction and large venue equipment installation.

Full-Scene Dual-Power Hydraulic System: Energy Adaptability Upgraded

Industrial-Grade AC Power (Standard Configuration):

Supports wide voltage input of 380V/220V/110V, driven by a 1.5kW motor to achieve a smooth lifting speed of 0.6m/s. Suitable for continuous power scenarios such as 3D equipment maintenance in factory workshops and 14m-high racking operations in logistics warehouses, enabling 24/7 continuous operation.

DC Power System (Optional):

Powered by two 12V batteries in series, a 1.6kW DC motor drives the hydraulic pump station, supporting 4 hours of continuous operation (8 lifting cycles per hour at full charge). The 12V/15A charger completes a full charge in 6 hours, adapting to off-grid environments like outdoor bridge maintenance and mountainous area power facility repairs—free from cable constraints for mobile operations.

The dual-cylinder synchronous lifting hydraulic system features intelligent load sensing technology, automatically adjusting lifting speed according to load with noise controlled within 78dB to meet indoor silent operation requirements.

Multi-Layer Safety Protection and Ergonomic Innovation

Structural Safety:

Outriggers feature dual locking with mechanical pins and hydraulic locks. An audio-visual alarm triggers and disables lifting when the tilt angle exceeds 3°; a pressure sensor cuts power to prevent overload tipping if the load exceeds 220kg (110% of rating), complying with GB/T 27548-2011 safety standards.

Operational Safety:

Both ground and platform dual-control panels are equipped with IP65 waterproof emergency stop buttons. A manual pump enables emergency descent during power outages. Dual top limit switches prevent over-travel, and bottom buffer devices reduce impact—ensuring work boundary safety.

Ergonomics:

The platform handrail integrates 0.3–0.6m/s variable frequency speed control buttons with ±35mm positioning accuracy. Four universal load-bearing wheels support short-distance movement by two persons. The quick-release outrigger design allows deployment/retraction within 50 seconds by two persons—25% faster transition efficiency than traditional single-column platforms.
