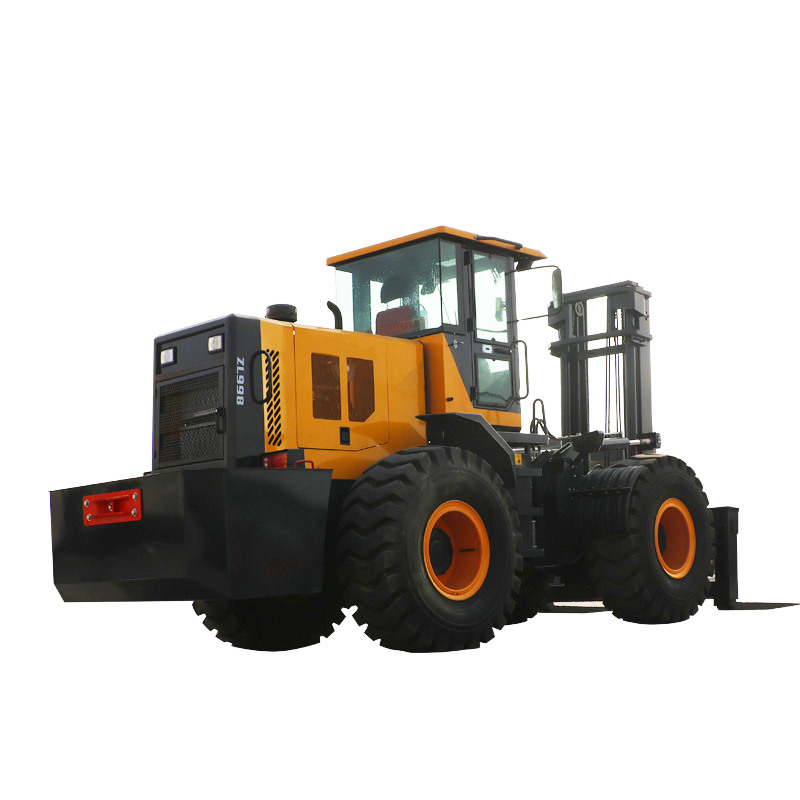

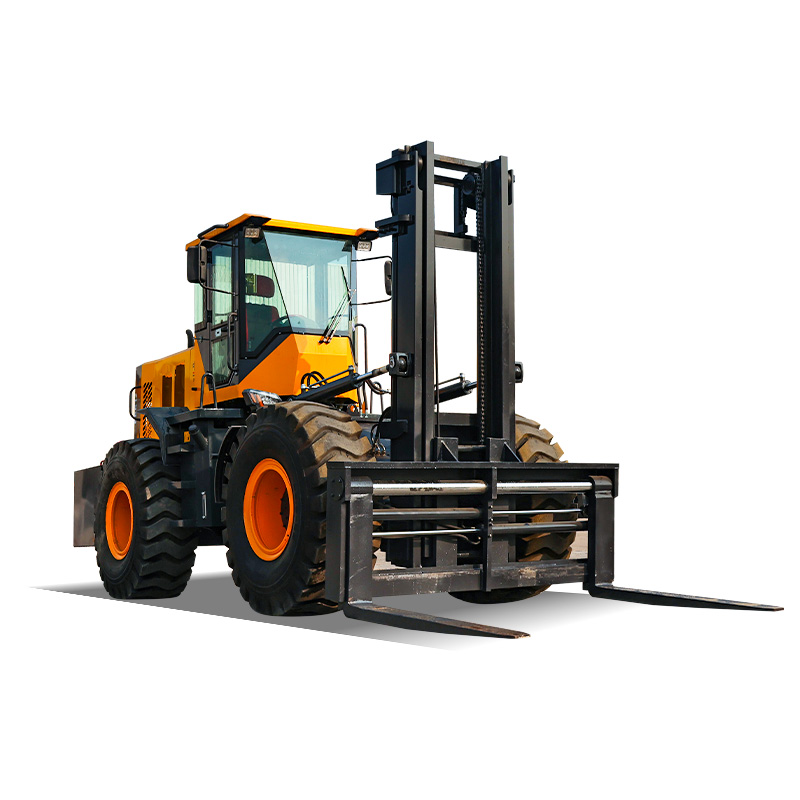

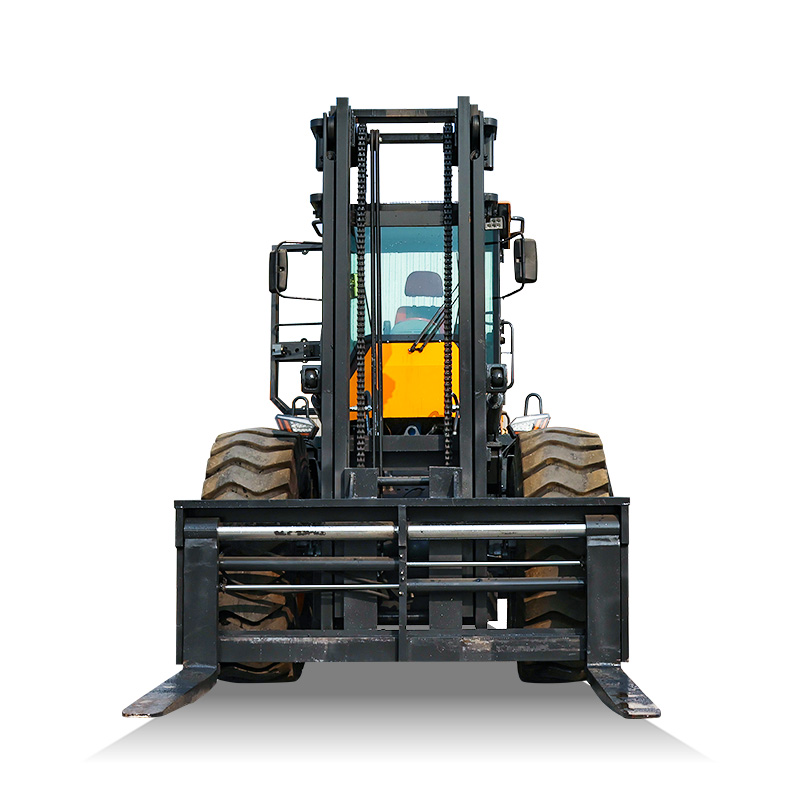

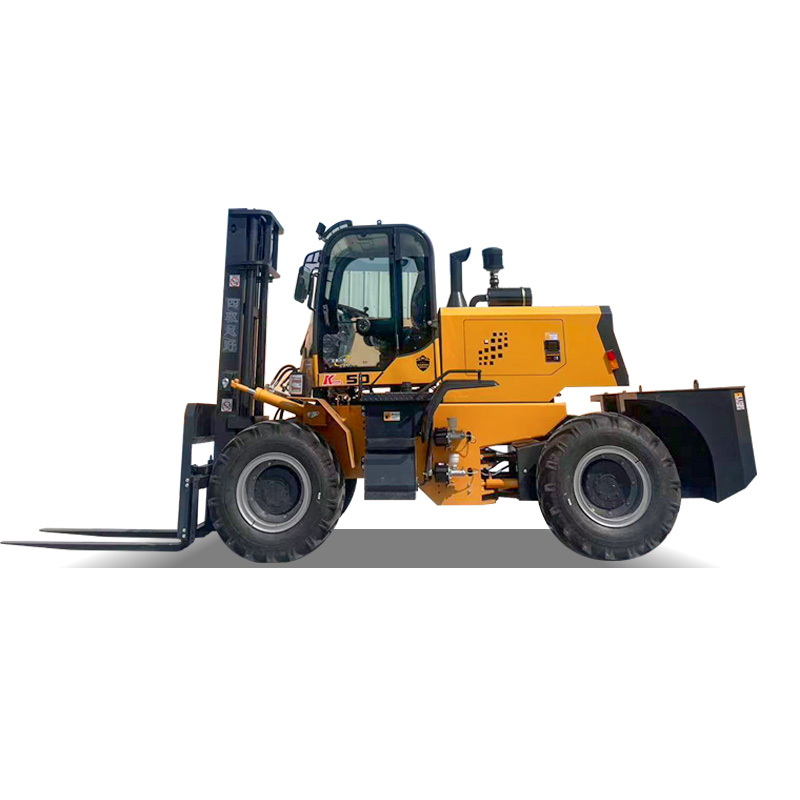

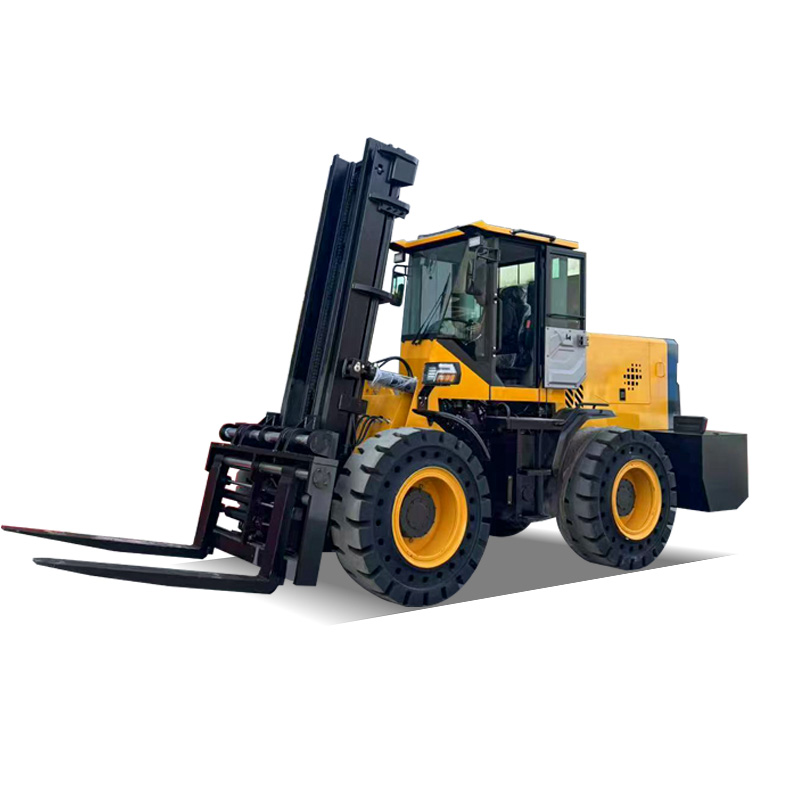

Ten-ton heavy-duty lifting - The pinnacle of the series

Rated lifting weight: 10000kg (10 tons), the maximum of the entire series

Lifting height: 4000 - 7000mm. Easily meet the requirements for extremely high stacking.

The length of the fork is 1520mm, suitable for transporting extremely large goods.

The width of the frame is 200mm, featuring the strongest frame structure in the entire series.

Leading Power - 6105 Turbocharged Engine

The 6105 turbocharged engine boasts the largest displacement and the highest power output across the entire series.

Euro 4 variable frequency technology, meeting the latest emission standards

The low-speed torque is extremely powerful. It can smoothly achieve heavy-load starting, climbing, and obstacle crossing with one continuous motion. (10-ton heavy load)

315 dual high-low speed torque converter transmission, with the largest specifications in the series, capable of withstanding the highest torque and achieving the most optimal transmission efficiency.

Giant tires - 23.5-25 all-terrain tires

23.5-25 giant tires, the largest size in the series

Ultra-deep pattern design, providing extremely strong grip on muddy, gravel, snowy and mining road surfaces.

The diameter and width of the tires have been significantly increased, and the ground clearance and off-road capability have been greatly enhanced.

Extremely strong in bearing capacity, suitable for vehicles with a self-weight and load capacity of 10 tons.

Extra-long wheelbase · Giant-sized body

Overall dimensions: 6100×1500/1550×2420×3300mm, maximum for the entire series

Axle spacing: 2950mm. The longest in the entire series. Excellent stability for heavy-duty driving.

28. Reinforced cast steel axle, the strongest axle in the entire series, with maximum impact resistance and load-bearing capacity

Off-road passability

Front end ground clearance: 300–380mm, excellent obstacle clearance capability

The maximum climbing angle is ≤ 35°, and it still has reliable climbing capability even when carrying a load of 10 tons.

Four-wheel drive, all-terrain adaptable

Self-weight and configuration

Overall weight: 12570kg (standard version) / 9570kg (lightweight version)

The standard version has extremely strong adhesion and is suitable for extremely harsh terrains.

The lightweight version is suitable for hardened surfaces such as ports and freight yards, reducing ground pressure.
