Short Description:

Strong Loading Capacity: Whether it‘s transporting small tools or installing heavy equipment, it can handle tasks with ease, meeting the heavy - load bearing needs of different work scenarios....

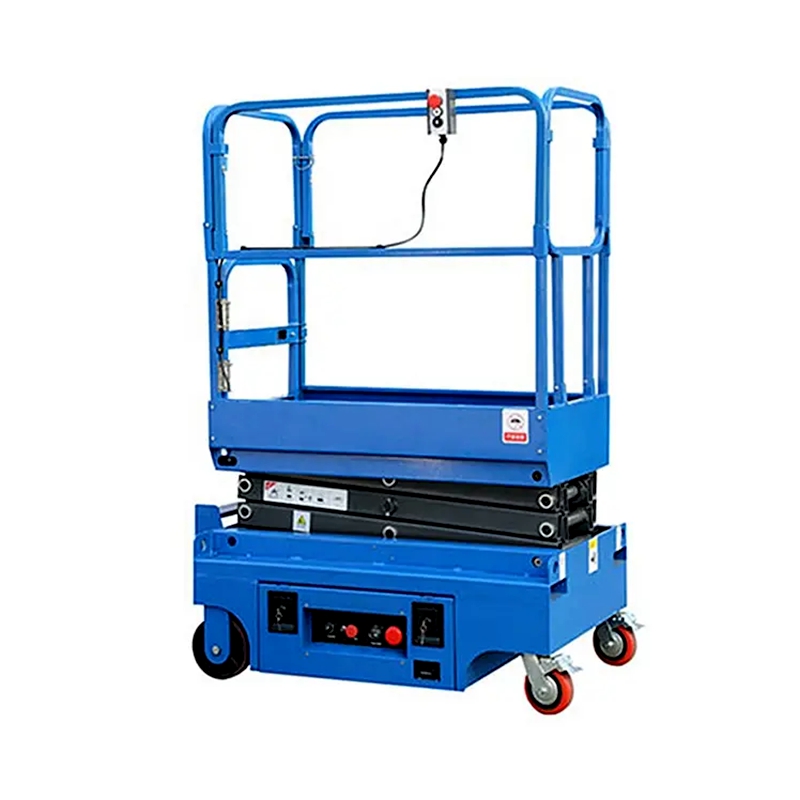

• Model: BJTJZD04-C
• Max. Working height: 6m
• Max. Platform height: 4m
• Working platform size(L × W × H): 1.29×0.7×1.05m
• Overall size (L × W × H, the guardrail is not folded): 1.43×0.76×2m
• Overall size (L × W × H, guardrail folded): 1.43×0.76×1.64m
• Platform extension size: 0.6m
• Min. ground clearance: 0.06/0.015m
• Wheelbase: 1.05m
• Rated load: 240kg
• Extended platform safe working load: 100kg
• Turning radius (inner wheel/outer wheel): 1.35m/0.3m
• Driving motor: 2×24VDC/0.5kw
• Lifting motor: 24VDC/0.8kw
• Lifting speed: 4 - 6m/min
• Machine travel speed (folded state): 4.0km/h
• Machine travel speed (lifting state): 0.5km/h
• Max. Gradeability: 25%
• Working maximum allowable angle: 2°/3°
• Drive wheel: ⌀230×80mm
• Front wheel: ⌀230×80mm
• Storage battery: 2×12V/80Ah
• Machine weight: 890kg
