Short Description:

Precise Operation Positioning: During operation, relying on a stable structure and precise control, it can achieve precise positioning, improving the accuracy and efficiency of operations....

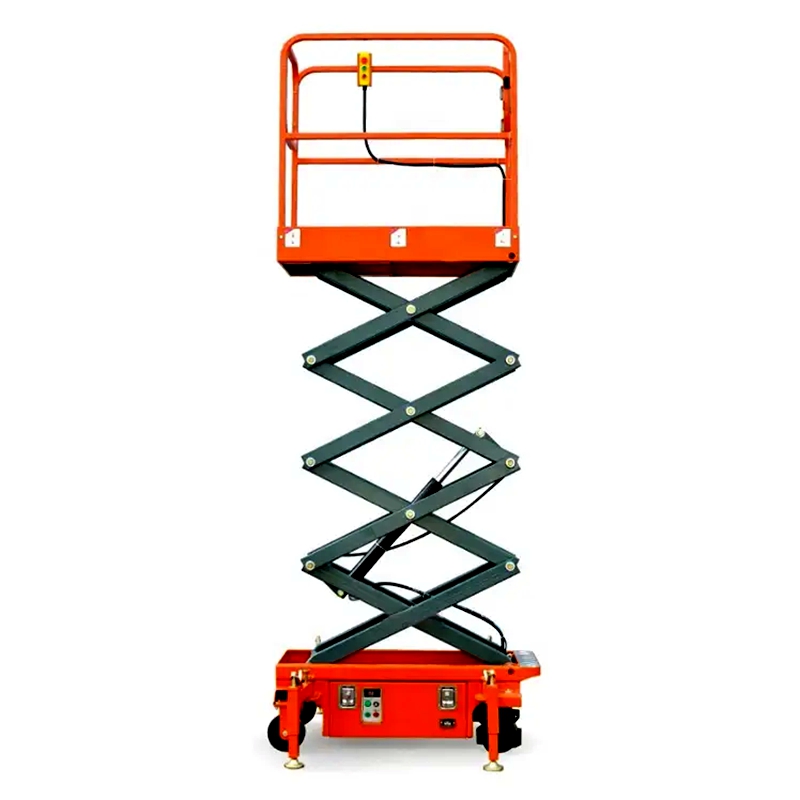

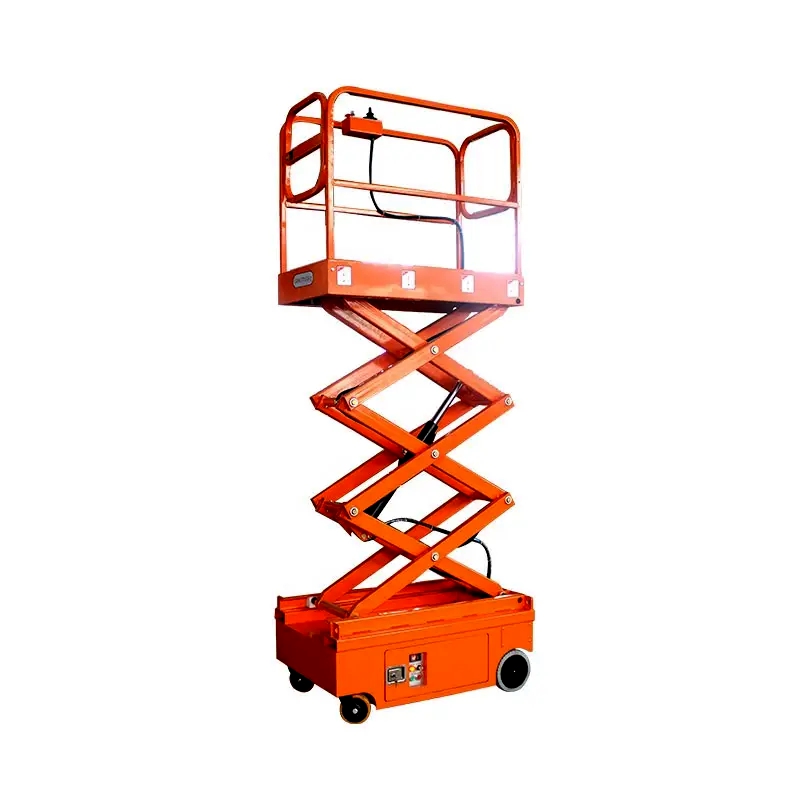

• Model: BJJZ06S-C
• Max. Working height: 7.8m
• Max. Platform height: 5.8m
• Working platform size(L × W × H): 1.67×0.74×1.1m
• Overall size (L × W × H, the guardrail is not folded): 1.85×0.8×2.22m
• Overall size (L × W × H, guardrail folded): 1.85×0.8×1.85m
• Platform extension size: 0.9m
• Min. ground clearance: 0.083/0.016m
• Wheelbase: 1.36m
• Rated load: 230kg
• Extended platform safe working load: 113kg
• Turning radius (inner wheel/outer wheel): 0/1.64m
• Driving motor: -
• Lifting motor: -
• Lifting speed: 3 - 5m/min
• Machine travel speed (folded state): 3.5km/h
• Machine travel speed (lifting state): 0.8km/h
• Max. Gradeability: 25%
• Working maximum allowable angle: 1.5°/3°
• Drive wheel: ⌀305×100mm
• Front wheel: ⌀305×100mm

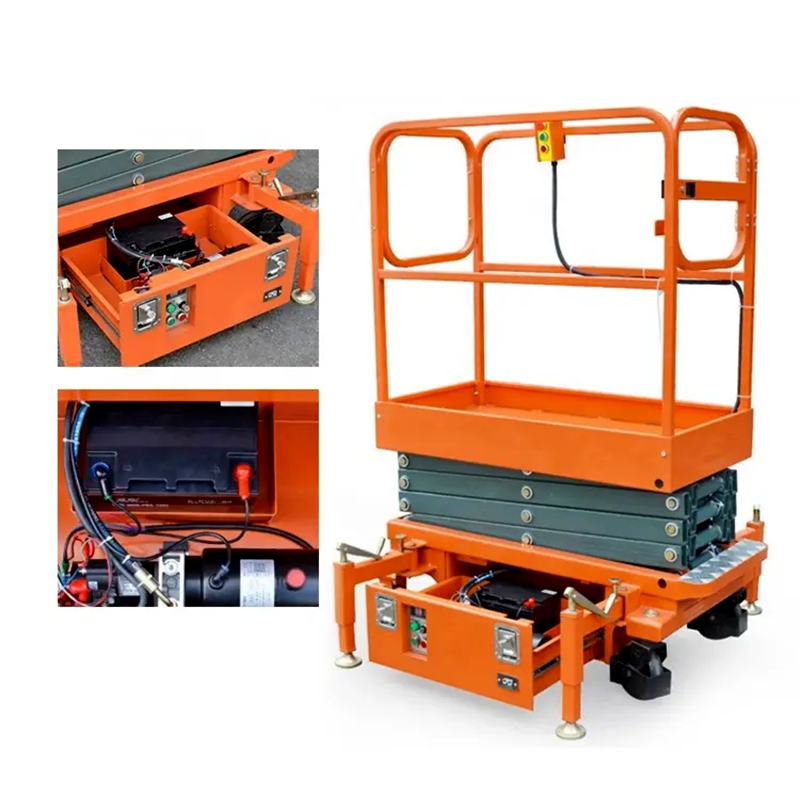

• Storage battery: 4 x 12V /83Ah, (Optional lithium - battery 24V/135Ah)
• Machine weight: 1620kg
