Short Description:

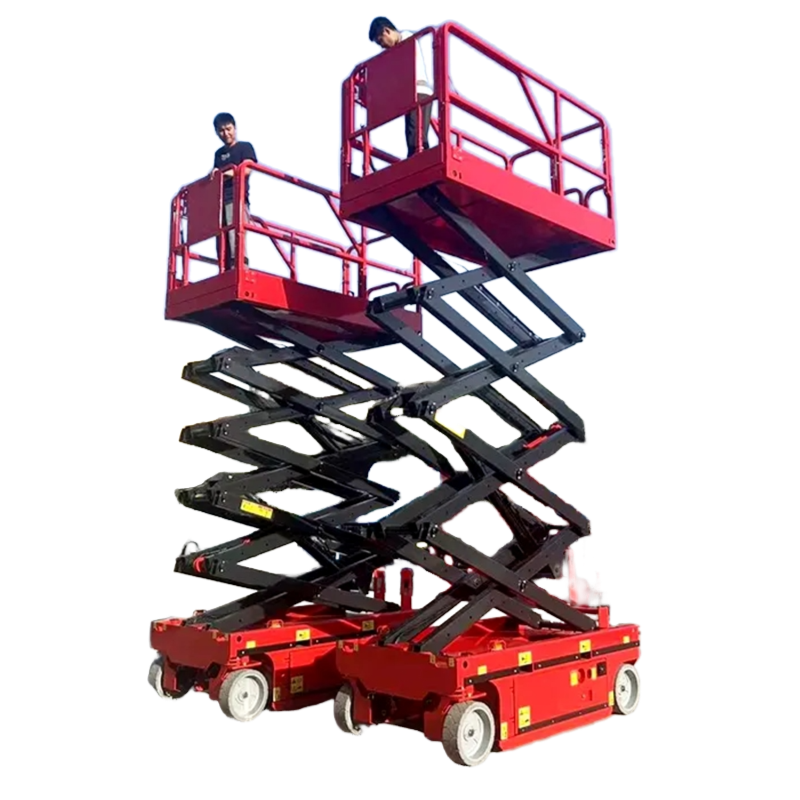

Flexible Multi - machine Collaboration Ability: Multiple devices can work simultaneously. By reasonably planning the work area, it improves construction efficiency and speeds up the project progress....

• Model: BJJZ06-C
• Max. Working height: 8.00m
• Max. Platform height: 6.00m
• Working platform size(L × W × H): 2.29×1.15×1.1m
• Overall size (L × W × H, the guardrail is not folded): 2.48×1.19×2.19m
• Overall size (L × W × H, guardrail folded): 2.48×1.19×1.68m
• Platform extension size: 0.9m
• Min. ground clearance: 0.1/0.02m
• Wheelbase: 1.89m
• Rated load: 550kg
• Extended platform safe working load: 113kg
• Turning radius (inner wheel/outer wheel): 0/2.2m
• Driving motor: -
• Lifting motor: -
• Lifting speed: 3 - 5m/min
• Machine travel speed (folded state): 3.5km/h
• Machine travel speed (lifting state): 0.8km/h
• Max. Gradeability: 25%
• Working maximum allowable angle: 1.5°/3°
• Drive wheel: ⌀381×127mm
• Front wheel: ⌀381×127mm
• Storage battery: 4×12V/103ah, (Optional lithium - battery 24V/230Ah)
• Machine weight: 2150kg
