Direct Sale Of 10 M Excellent Sleeve Type Vertical Lifting Platform

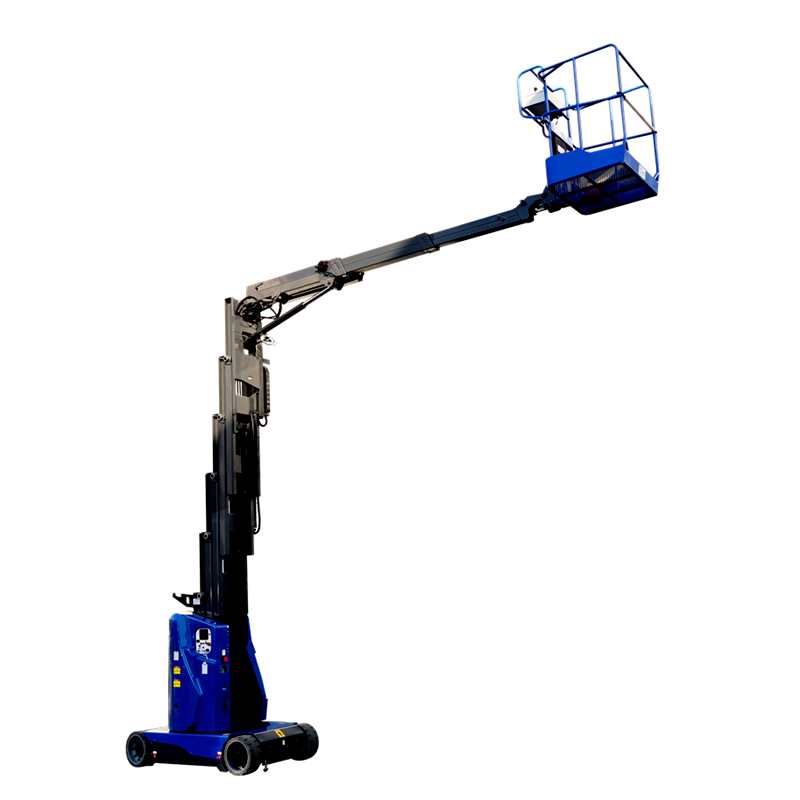

Sleeve Vertical Lifting Platform

Short Description:

Commercial & Public Facilities: Suited for mall advertisement installation, hotel chandelier maintenance, and airport terminal cleaning—operates flexibly without disrupting daily operations....


  • MODEL: ATWP13-7100-C
  • Max. Working Height: 12.65 m
  • Max. Platform Height: 10.65 m
  • Max. Horizontal Reach: 6.05 m
  • Overall Length: 3.72 m
  • Overall Width: 1.2 m
  • Overall Height (stowed): 1.98 m
  • Platform Dimension: 0.8*0.93 m
  • Ground Clearance(Stowed): 80 mm
  • Ground Clearance(Raised): 80 mm
  • Wheelbase: 1.55 m
  • Loading Capacity: 200 kg
  • Occupants: 2
  • Turret Rotation: 352°
  • Max.Working Slope: X - 2° Y - 2°
  • Travel Speed(Stowed): 3.6 km/h
  • Travel Speed(Raised): 0.7 km/h
  • Tyres: Φ406*178 mm
  • Driving Motor: 32 V/3.3 kw
  • Lifting Motor: 48 V/3 kw
  • Battery: 48 V/260 Ah
  • Charger: 48 V/35 A
  • Weight: 4980 kg

Product Detail

Product Description

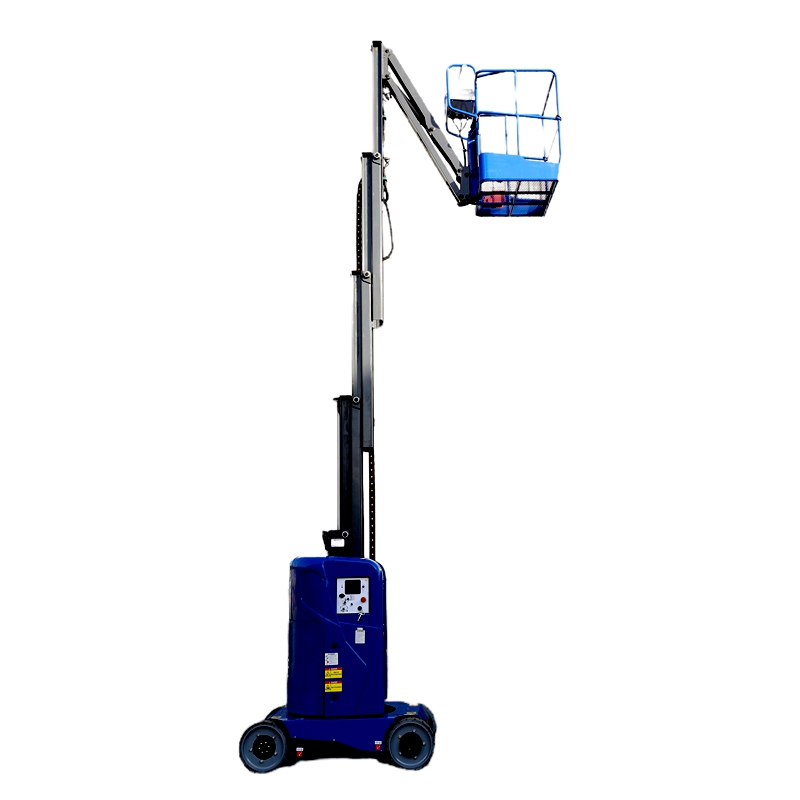

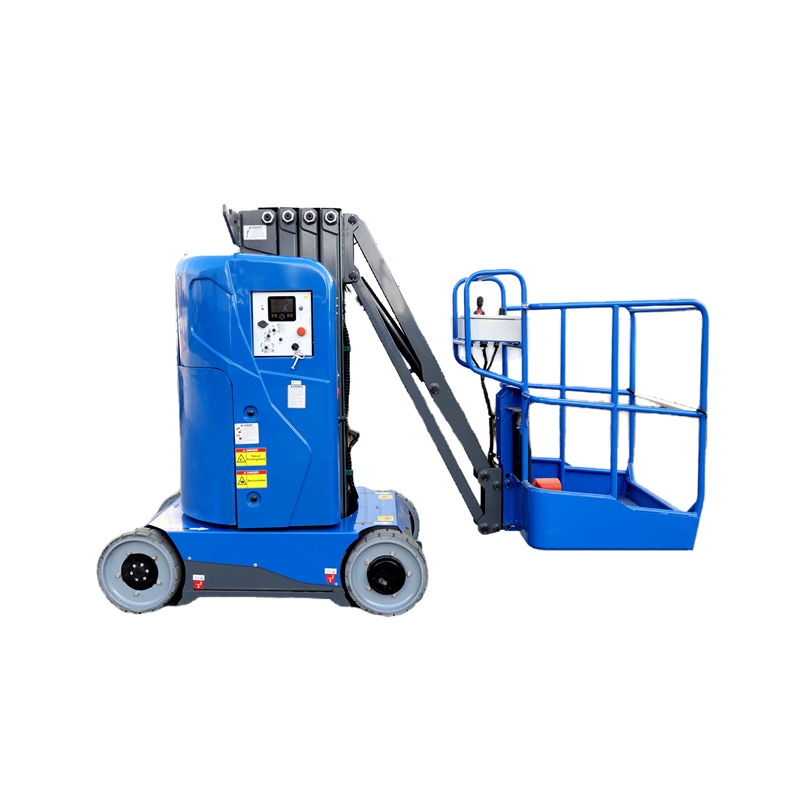

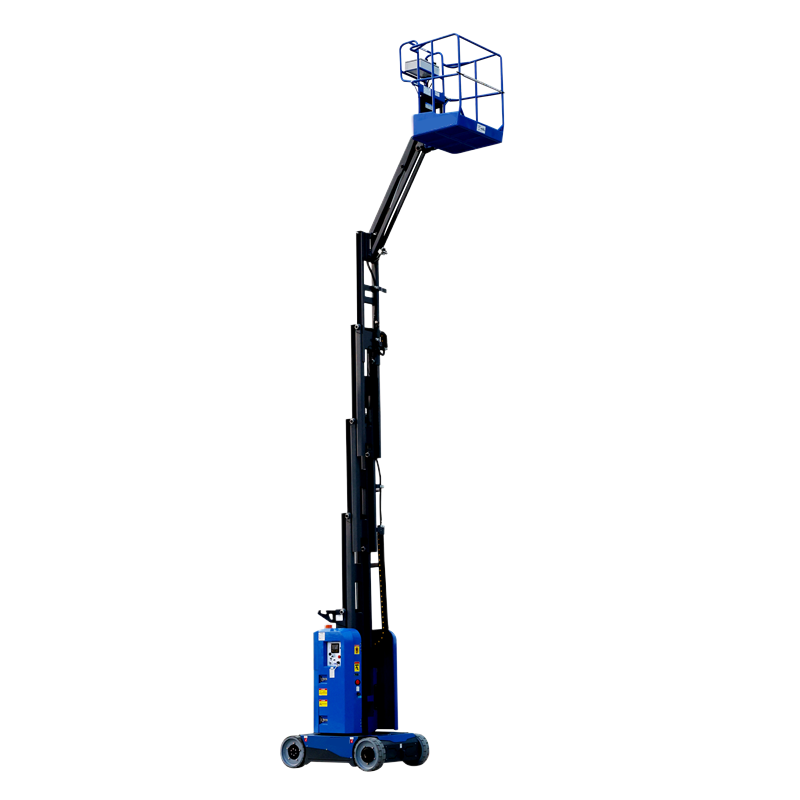

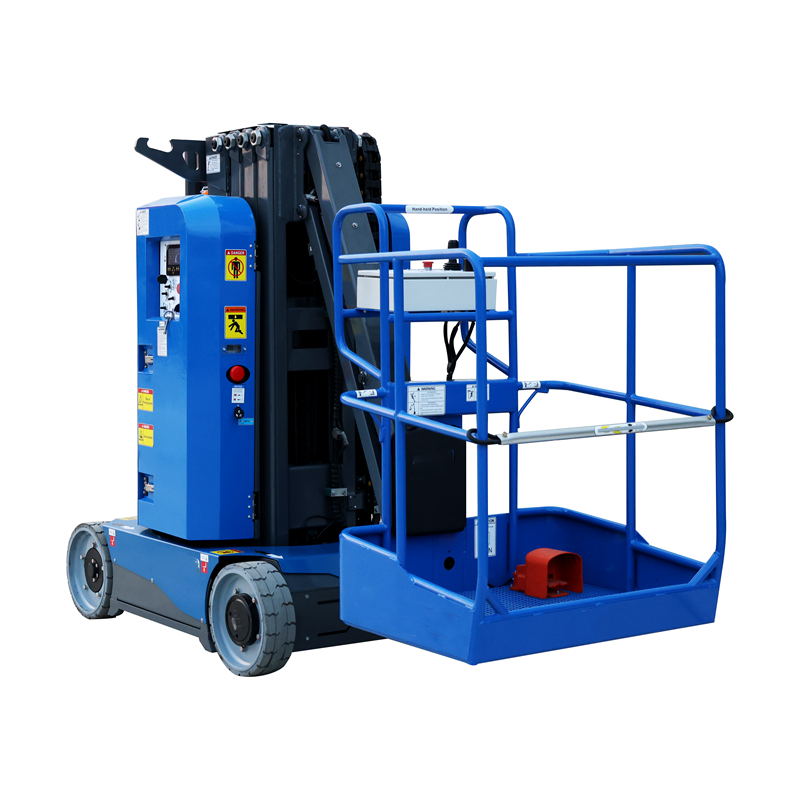

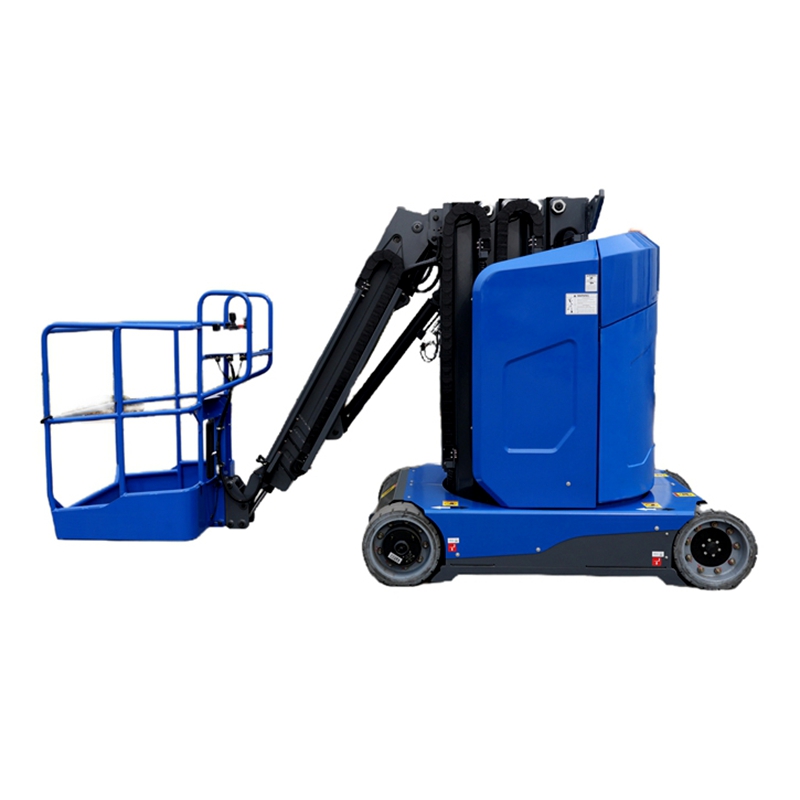

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Durability:Surface treatments like electrostatic spraying or galvanization resist corrosion and rust, enabling stable operation in extreme temperatures (-20°C to 60°C).

Environmental Adaptability:Dust- and water-resistant design (IP54 rating) suits dusty, wet, or outdoor environments.

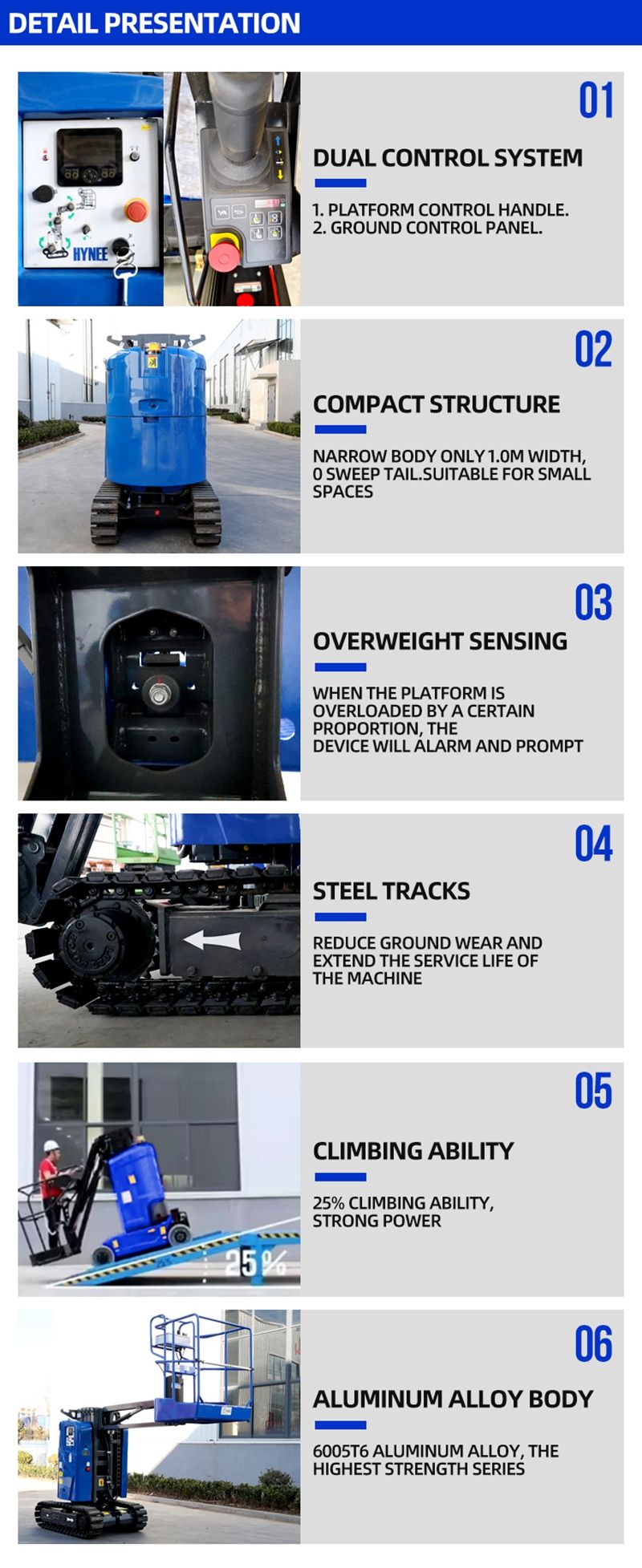

User-Friendly Control:Wireless remote control or integrated control panels support one-button lifting, speed adjustment, and position memory—operable by a single user.

Low Maintenance Costs:Modular component design allows quick replacement of wear parts, reducing repair time by 30%.
