Short Description:

Warehousing & Logistics: Integrates with racking systems for automated goods access, reducing labor costs and improving sorting efficiency....

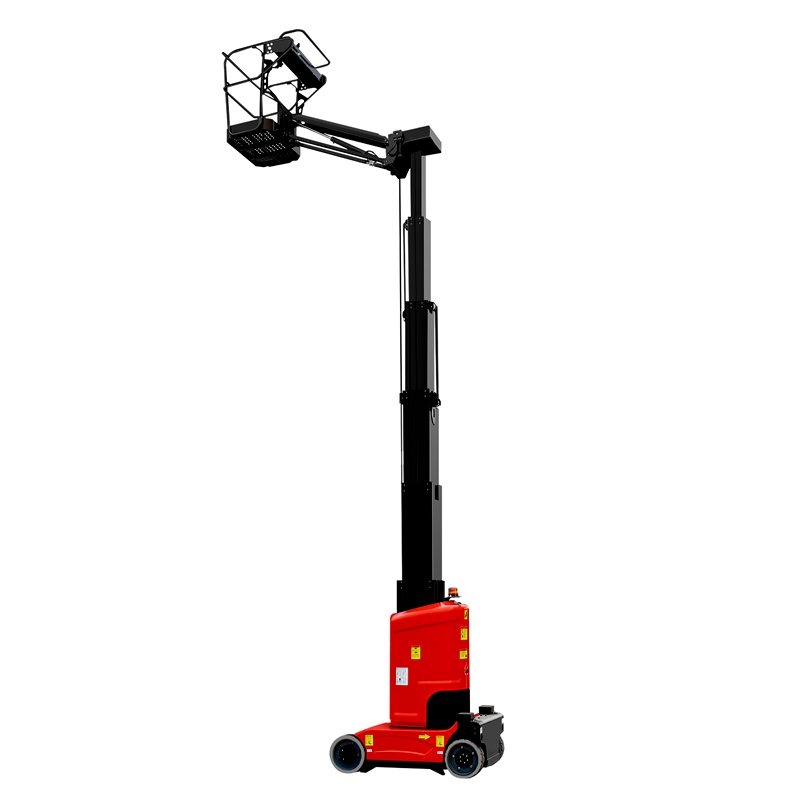

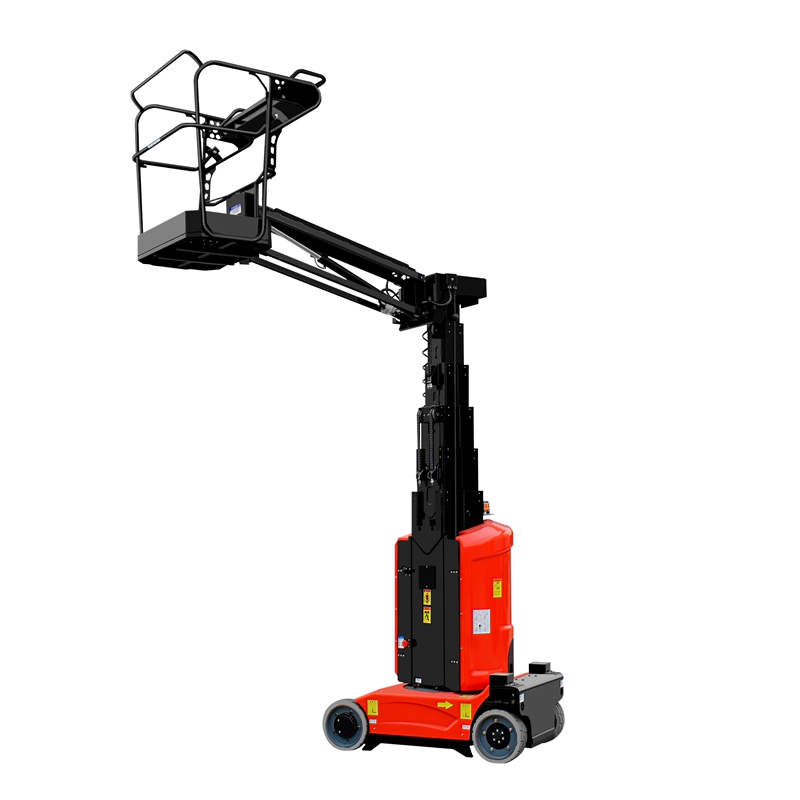

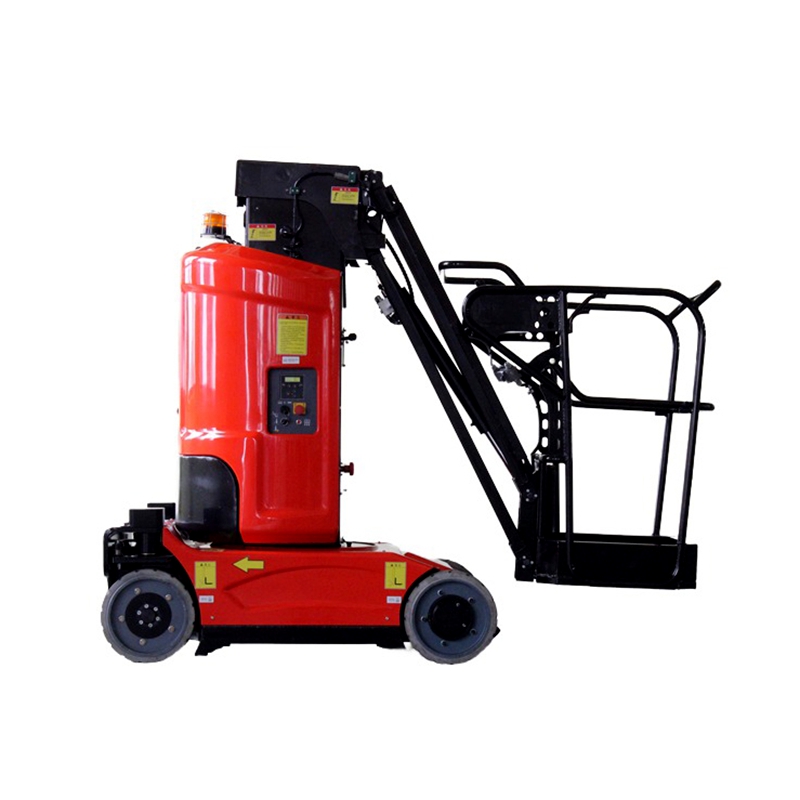

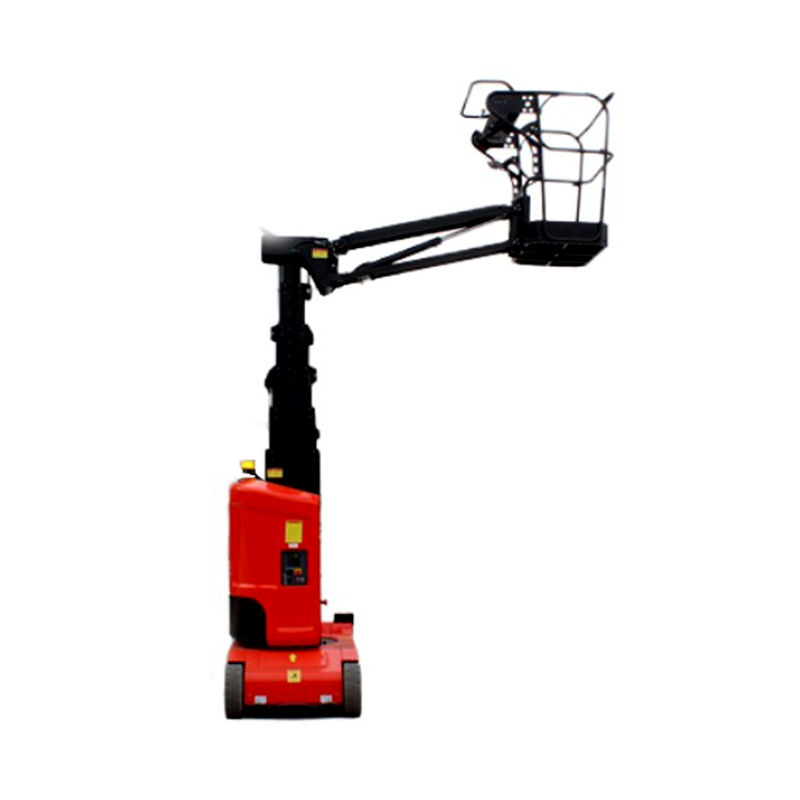

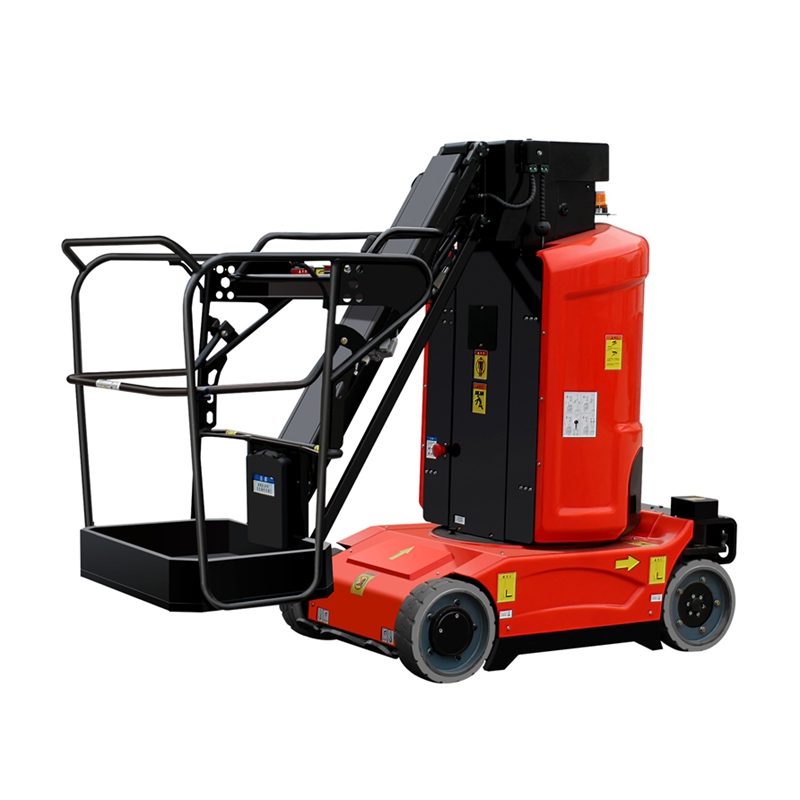

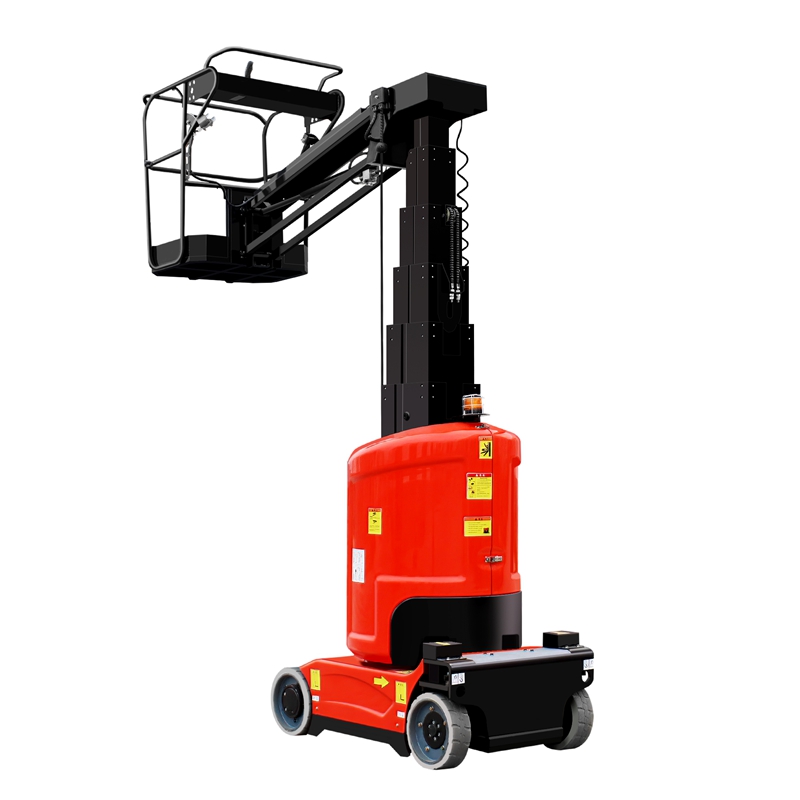

• MODEL: ATWP11.2-8100-C
• Max. Working Height: 11.2 m
• Max. Platform Height: 9.2 m
• Max. Horizontal Reach: 3 m
• Up and Over Height: 7.89 m
• Guardrail height: 1.1 m
• Overall Length: 2.53 m
• Overall Width: 1.0 m
• Overall Height (stowed): 1.99 m
• Platform Dimension: 0.62*0.87 m
• Ground Clearance(Stowed): 70 mm
• Ground Clearance(Raised): 70 mm
• Wheelbase: 1.22 m
• Loading Capacity: 200 kg
• Occupants: 2
• Turning Radius(Inside/Outside): 0.23/1.65 m
• Turret Rotation: 345°
• Jib Movement: 130°
• Travel Speed(Stowed): 4.5 km/h
• Travel Speed(Raised): 0.5 km/h
• Up/Down Speed: 42/33 s
• Max. Working Slope: X - 2°, Y - 2°
• Tyres: Φ381*127 mm
• Driving Motor: 24 V/0.9 kW
• Lifting Motor: 24 V/3 kW
• Battery: 24 V/240 Ah
• Charger: 24 V/30 A
• Weight: 2950 kg
