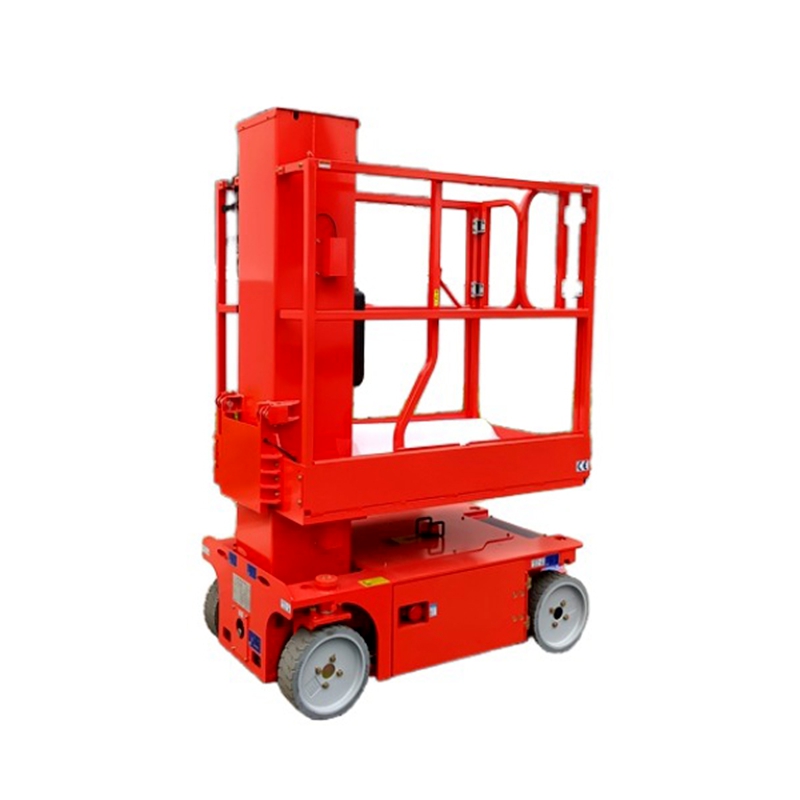

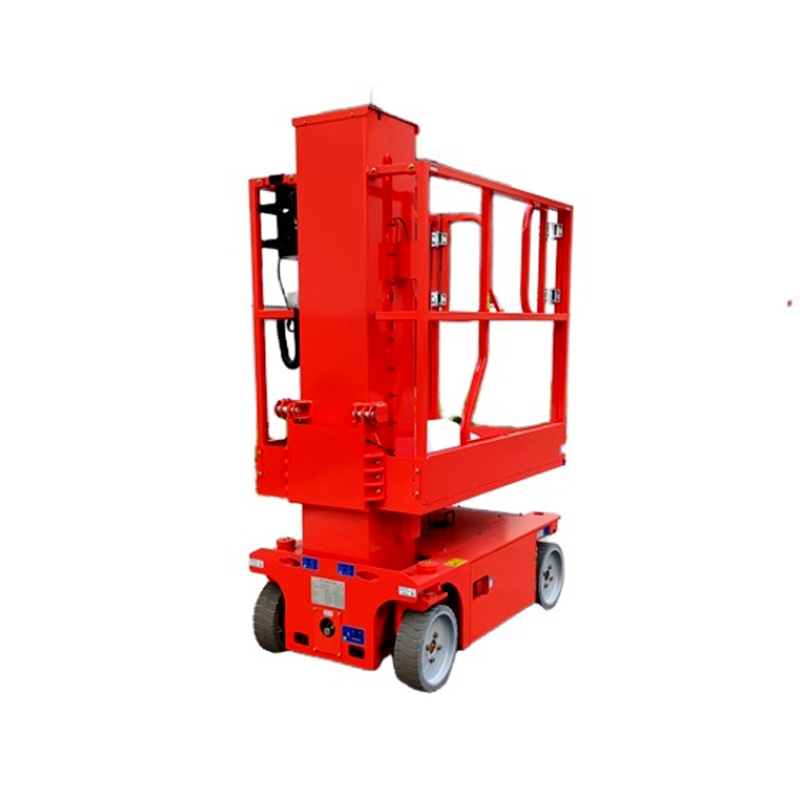

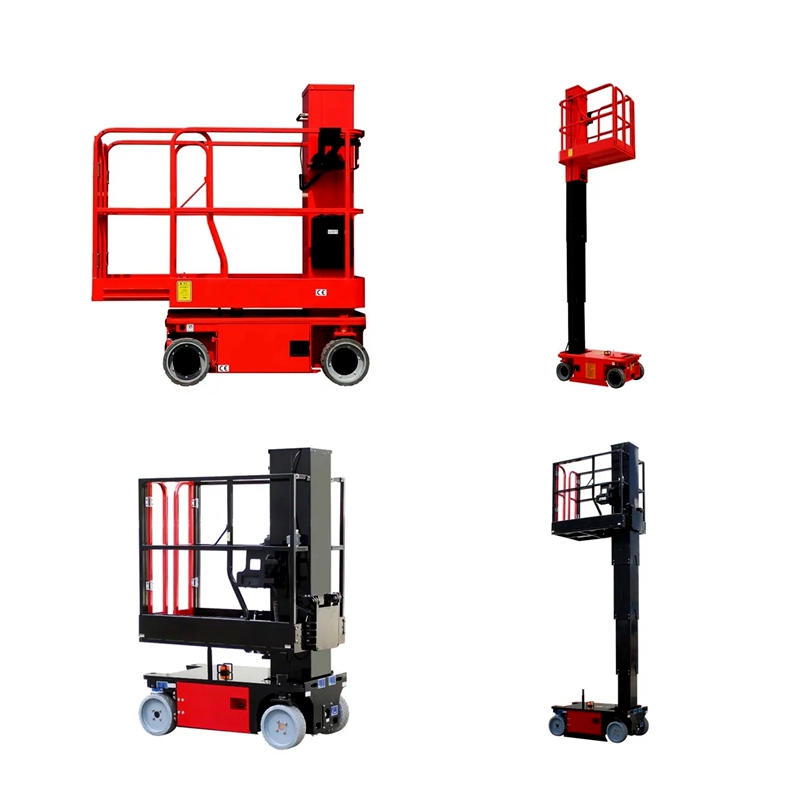

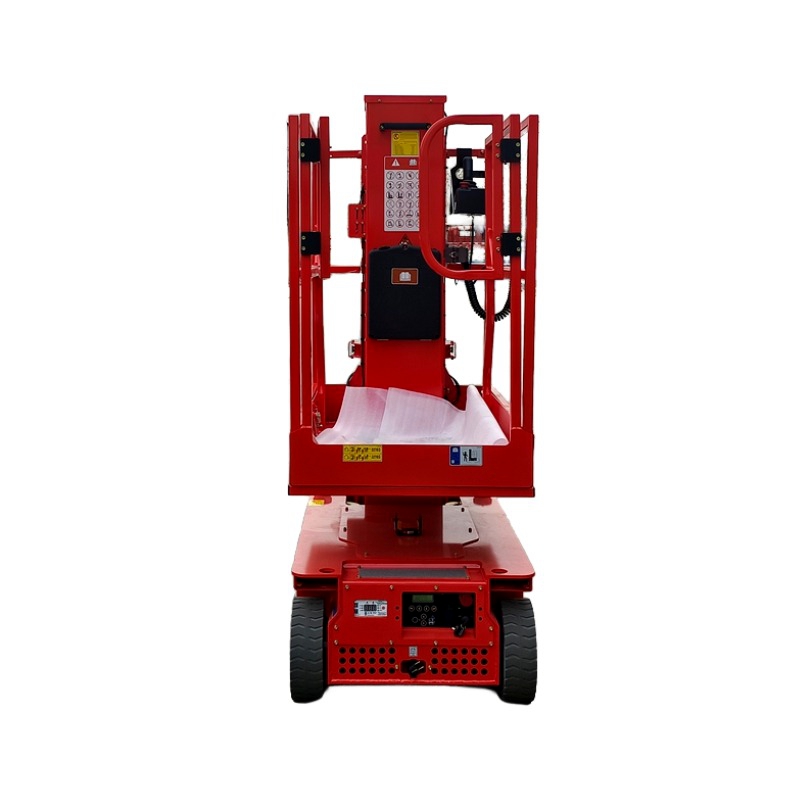

4.58 M Lightweight Design Sleeve Type Mast Lift Spot Supply

Sleeve Vertical Lifting Platform

Short Description:

Sleeve-Type Mast Lift Platform: Equipped with emergency descent valve & non-marking tires, single-operator control ensures safe, efficient aerial work—ideal for high-altitude tasks....


  • Model: ATM8-B
  • Max. Working Height: 4.58 m
  • Platform Load Capacity: 230 kg
  • Overall Dimensions: 1.38*0.76*1.67 m
  • Platform Dimensions: 1.035 m×0.76 m
  • Ground Clearance: 0.06 m
  • Battery: 2*12 V/150 Ah
  • Rise/Lower Speed: 12 s/16 s
  • Lifting/Stowed Travel Speed: 0.8 km/h/4 km/h
  • Gradeability: 25%
  • Overall Height: 1.9 m
  • Overall Weight: 700 kg

Product Detail

Product Description

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

This sleeve - type mast lift platform combines practical configurations with excellent features, offering an efficient and safe solution for aerial tasks. Equipped with an emergency descent valve to ensure safety during critical situations, its non - marking polyurethane tires ensure low rolling resistance and noise, carefully protecting the ground surface. With a level, control handle, and lower control system, it enables precise and convenient operation. It boasts an appealing design, compact size, light weight, and flexible mobility. The platform is equipped with a safety steel rope and protective device, ensuring more reassuring operation. Operable by a single operator via the handle, it streamlines the operation process and significantly boosts work efficiency, adapting to various aerial work scenarios.
