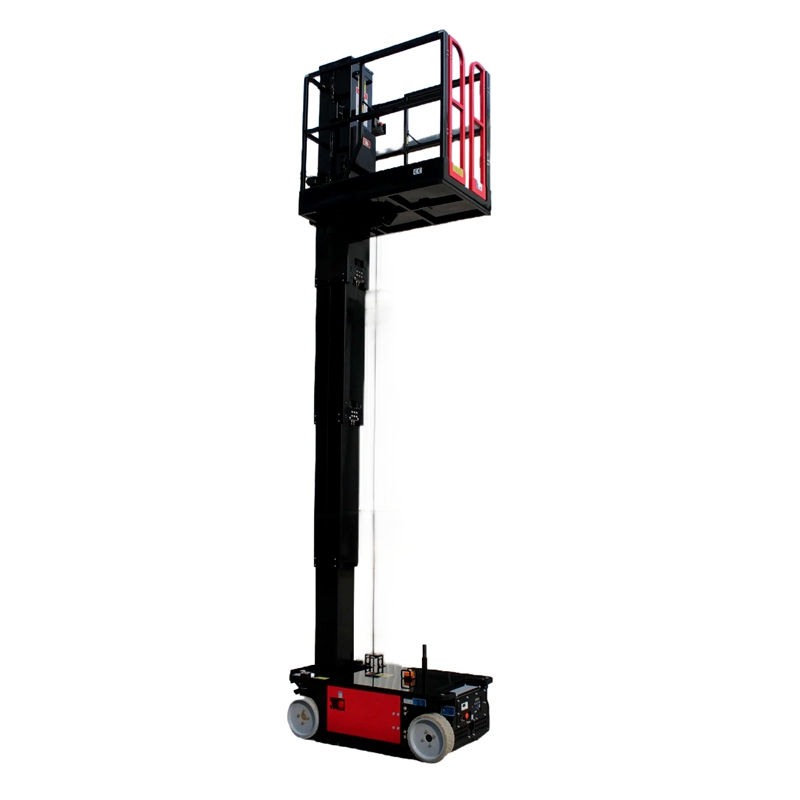

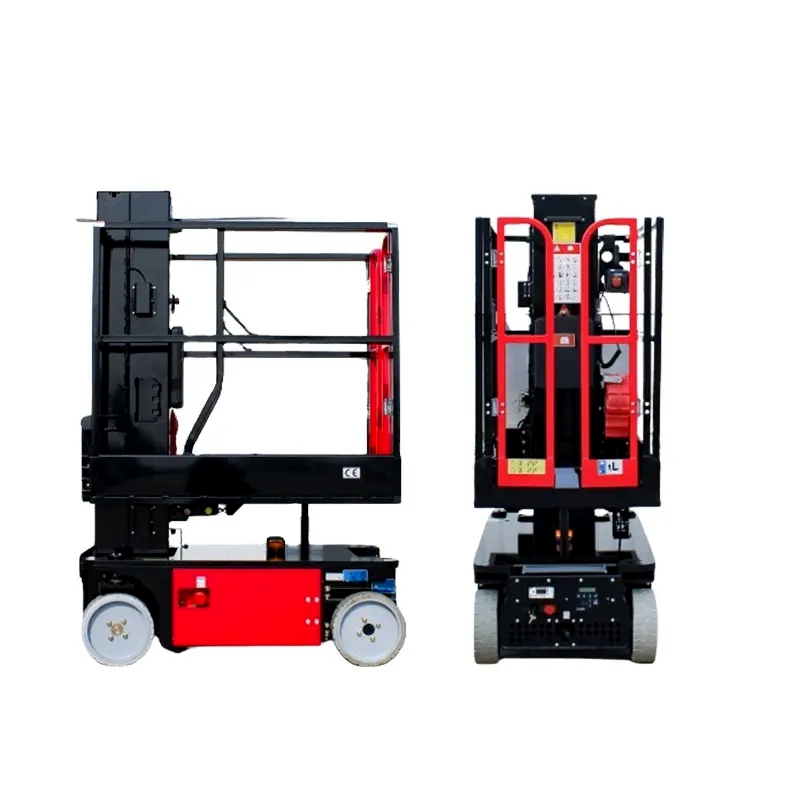

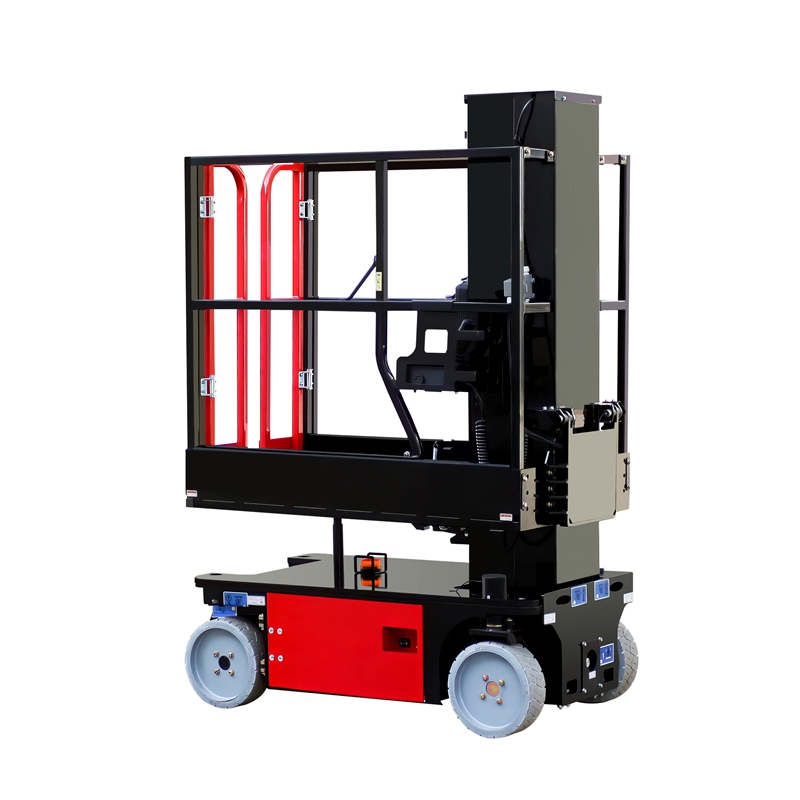

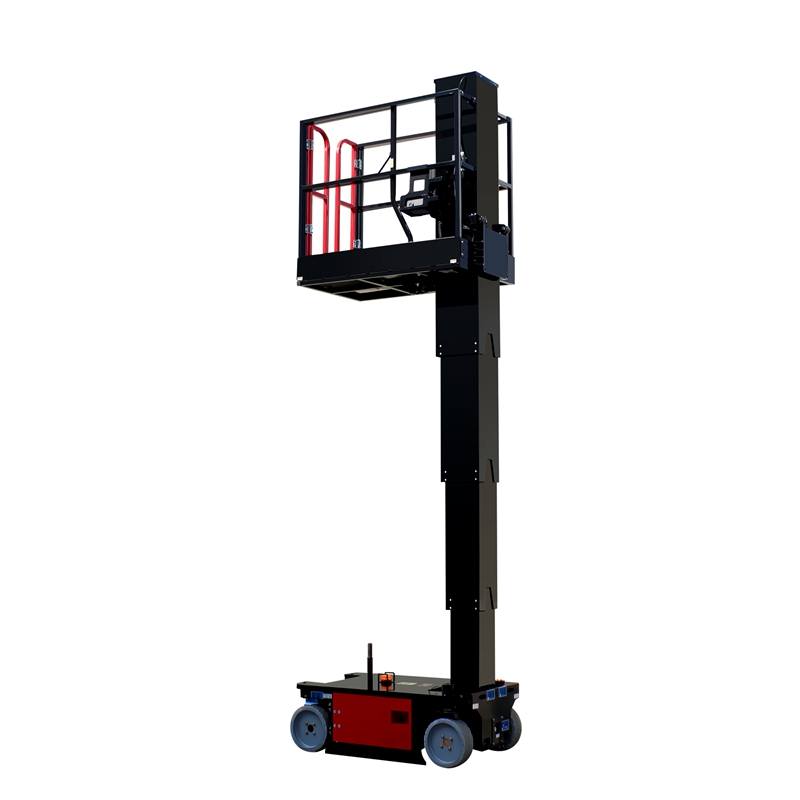

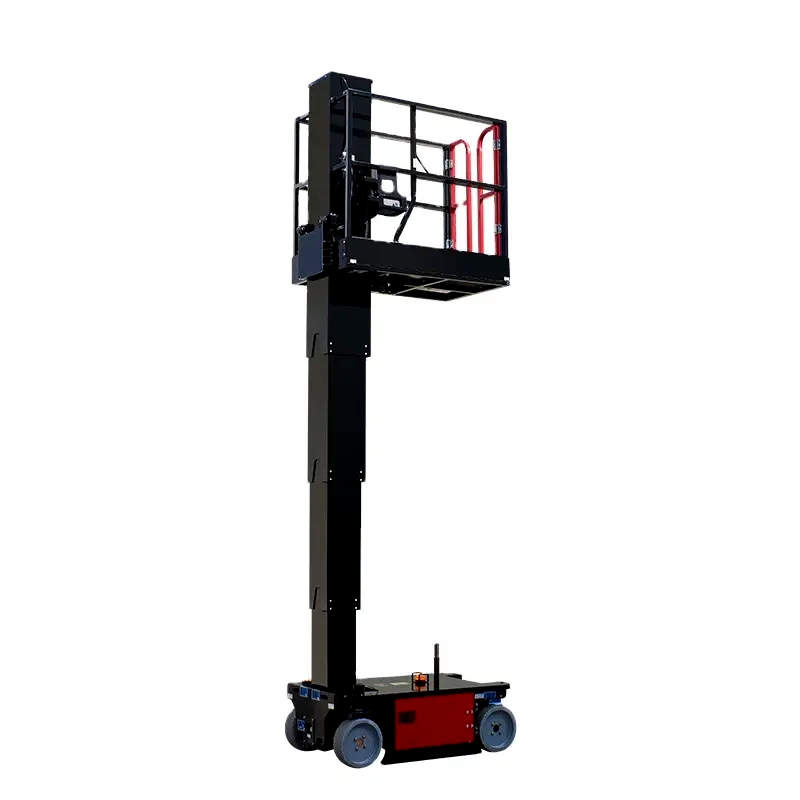

6 M High Quality​ Sleeve Type Mast lifting platform For Sell

Sleeve Vertical Lifting Platform

Short Description:

Seek a reliable high-altitude helper? Our Self-Propelled Vertical Mast, featuring proportional control, maneuvers easily,operations efficient and risk-free....


  • MODEL: ATWP6-6100
  • Max. Working Height: 8 m
  • Max. Platform Height: 6 m
  • Loading Capacity: 159 kg
  • Ext. Platform Capacity: 114 kg
  • Overall Length: 1.36 m
  • Overall Width: 0.81 m
  • Overall Height: 1.98 m
  • Platform Dimension: 1.28 m×0.70 m
  • Ext. Platform Length: 0.51 m
  • Wheel Base: 1.04 m
  • Inner Turning Radius: 0.3 m
  • Outer Turning Radius: 1.4 m
  • Travel Speed(Stowed): 4 km/h
  • Travel Speed(Raised): 1.1 km/h
  • Up/Down Speed: 52/53 sec
  • Gradeability: 25%
  • Drive Tyres: Φ305×100 mm
  • Drive Motors: 2×24 V DC/0.5 kW
  • Lifting Motor: 24 V DC/1.2 kW
  • Battery: 2×12 V/100 Ah
  • Charger: 24 V/15 A
  • Weight: 1160 kg

Product Detail

Product Description

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Engineered for precision and safety, our Self-Propelled Vertical Mast features a proportional control system that delivers seamless command over lifting, lowering, and movement—optimizing efficiency across complex tasks. Its automatic pothole protection system proactively detects ground hazards in real time, while full-stroke mobility paired with non-marking tires ensures smooth, mark-free navigation on any surface—from factory floors to rugged job sites.

Safety is embedded in every detail: integrated automatic braking, emergency descent/stop functions, explosion-proof hydraulic tubing, and intelligent fault diagnostics create a robust protective framework. This combination minimizes risks, enhances operational stability, and reduces downtime, making it the trusted choice for high-altitude applications in industrial, commercial, and logistics environments.
