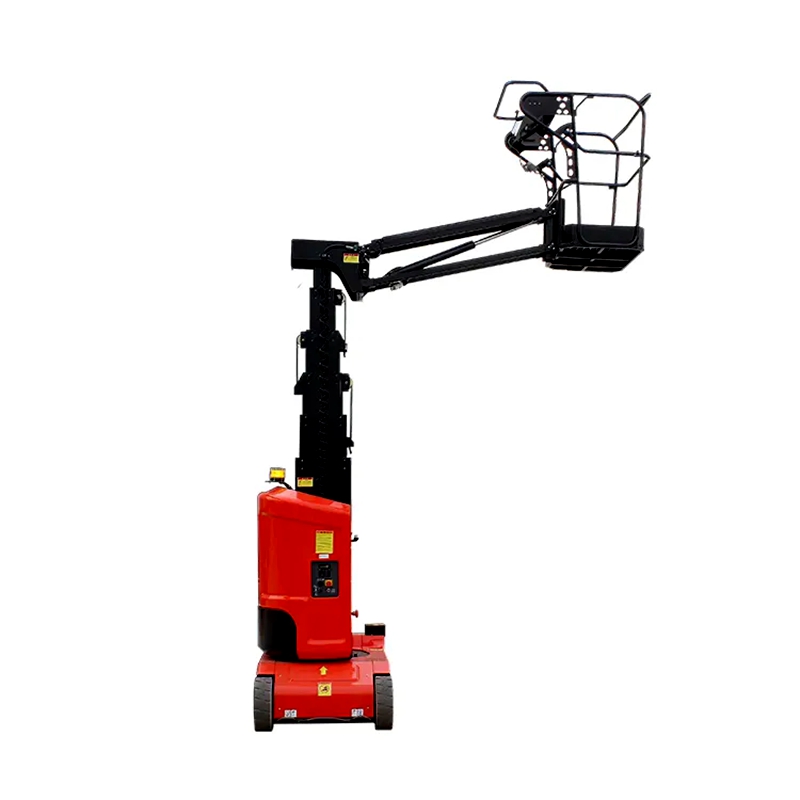

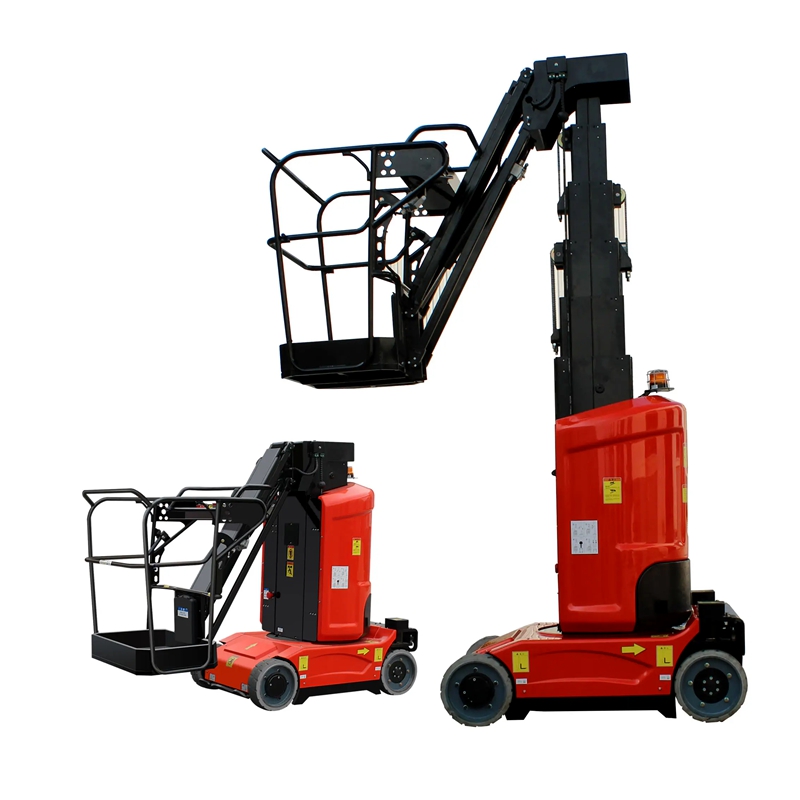

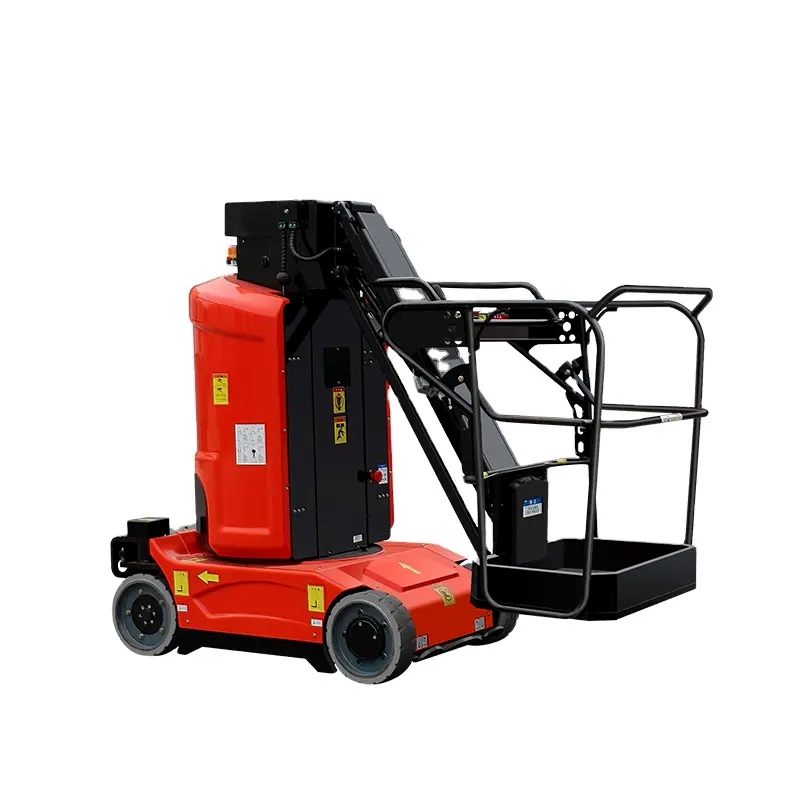

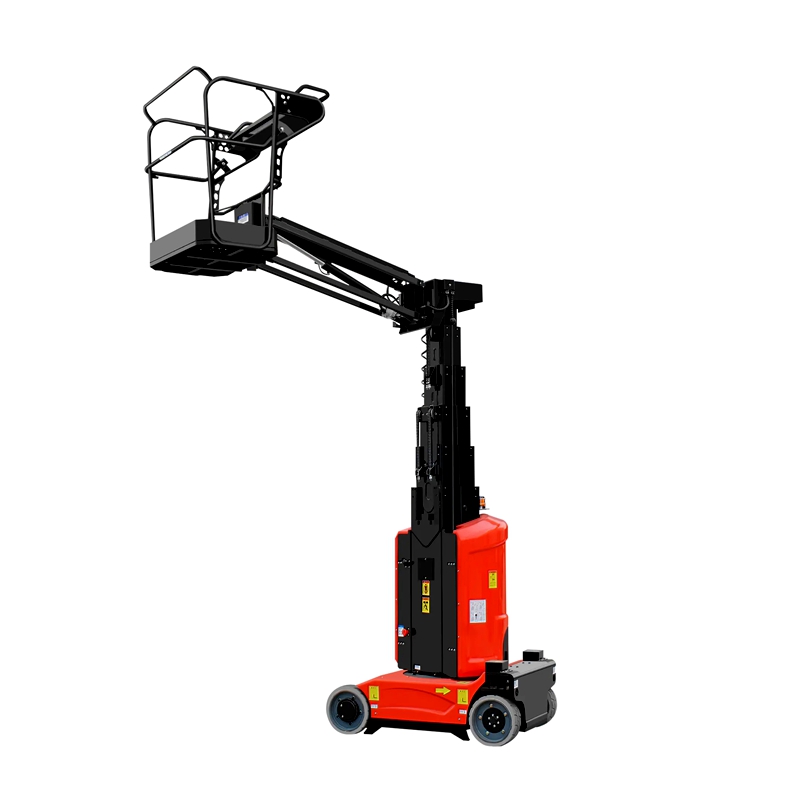

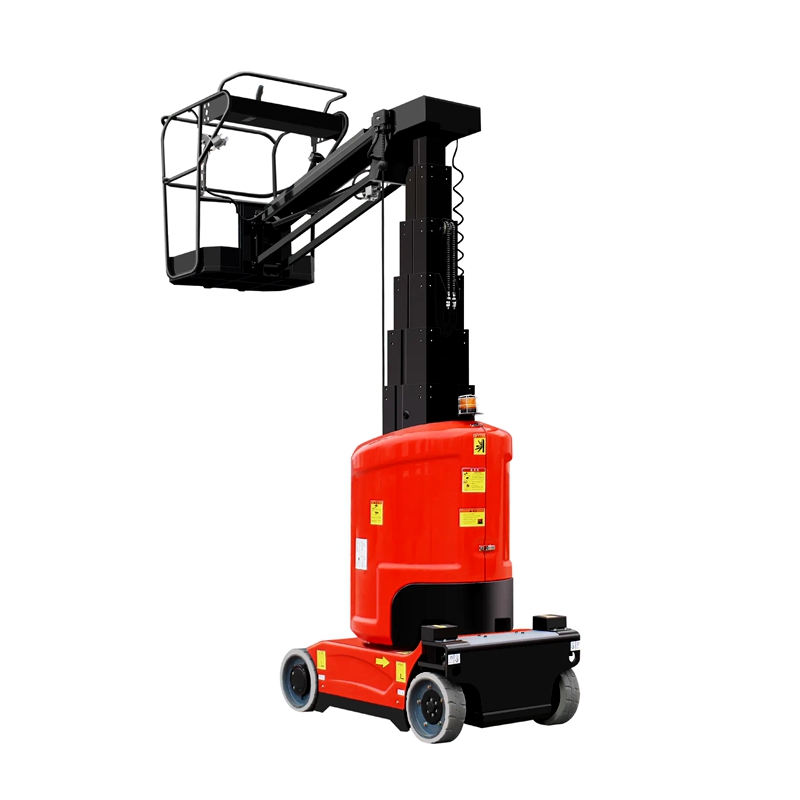

7.2 M High-Performance Industrial Self-Propelled Vertical Mast Lift Buy

Sleeve Vertical Lifting Platform

Short Description:

Self-Propelled Vertical Mast Lift: AC 4X2 for all-terrain. Proportional control, non-marking tires. Auto pothole/emergency protection—ideal for industrial/warehouse/commercial....


  • Model: ATFB9.2-B
  • Max. Working Height: 9.2 m
  • Max. Platform Height: 7.2 m
  • Max. Horizontal Reach: 3 m
  • Up and Over Height: 5.89 m
  • Guardrail Height: 1.1 m
  • Overall Length: 2.53 m
  • Overall Width: 1 m
  • Overall Height (stowed): 1.9 m
  • Platform Dimension: 0.62*0.87 m
  • Ground Clearance(Stowed): 70 mm
  • Ground Clearance(Raised): 19 mm
  • Wheelbase: 1.22 m
  • Loading Capacity: 200 Kg
  • Occupants: 2
  • Turning Radius(Inside/Outside): 0.23/1.65 m
  • Turret Rotation: 345°
  • Jib Movement: 130°
  • Travel Speed(Stowed): 4.5 km/h
  • Travel Speed(Raised): 0.5 km/h
  • Up/Down Speed: 42/38 s
  • Max. Working Slope: X - 2.5° Y - 2.5°
  • Tire: Φ381*127 mm
  • Driving Motor: 24 V/0.9 kW
  • Lifting Motor: 24 V/3 kW
  • Battery: 24 V/240 Ah
  • Charger: 24 V/30 A
  • Weight: 2950 Kg

Product Detail

Product Description

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

High-Performance Industrial Self-Propelled Vertical Mast Lift

Tech-Driven Precision & Uncompromised Safety

Equipped with AC drive wheels and a 4X2 drive system, this lift delivers robust power for all-terrain adaptability, enabling full-stroke travel even on complex surfaces. Proportional control technology ensures millimeter-precise lifting, lowering, and maneuvering, ideal for tasks demanding fine adjustments. The platform features a self-locking safety gate and dual safety cables, paired with automatic pothole protection and a tilt alarm system to proactively detect environmental hazards. A triple safety framework—explosion-proof hydraulic tubing, automatic braking, and emergency descent functions—combines with a fault diagnosis system and overload sensor to safeguard operators and equipment at every step.

Compact Design for Effortless Efficiency

Engineered with a lightweight, space-saving structure, the lift is easily controlled by a single operator via an integrated joystick, minimizing labor intensity. Non-marking polyurethane tires reduce rolling resistance and noise, making it perfect for sensitive indoor/outdoor surfaces without floor damage. Safety alerts like the operation buzzer, strobe light, and horn enhance worksite visibility, while the working timer and charging protection system optimize maintenance and extend service life.

Versatile Applications

Ideal for industrial manufacturing (equipment installation/maintenance), warehousing (rack operations), and commercial facilities (sign installation/curtain wall cleaning), especially in space-constrained or floor-sensitive environments. Its superior mobility and safety redefine high-altitude work efficiency.
