4.8 M Narrow Space Sleeve Type Mast Lift Wholesale Direct

Sleeve Type Mast Lift

Short Description:

All-terrain adaptability: non-marking tires + full mobility. Precise proportional control; auto pothole protection + emergency systems ensure safety....


  • MODEL: ATWP4.8-6100-C
  • Max. Working Height: 6.8 m
  • Max. Platform Height: 4.8 m
  • Loading Capacity: 227 kg
  • Ext. Platform Capacity: 114 kg
  • Overall Length: 1.36 m
  • Overall Width: 0.76 m
  • Overall Height: 1.98 m
  • Platform Dimension: 1.28 m×0.70 m
  • Ext. Platform Length: 0.51 m
  • Wheel Base: 1.04 m
  • Inner Turning Radius: 0.3 m
  • Outer Turning Radius: 1.4 m
  • Travel Speed(Stowed): 4 km/h
  • Travel Speed(Raised): 1.1 km/h
  • Up/Down Speed: 41.5/42 sec
  • Gradeability: 25%
  • Drive Tyres: Φ305×100 mm
  • Drive Motors: 2×24 V DC/0.5 kW
  • Lifting Motor: 24 V DC/1.2 kW
  • Battery: 2×12 V/100 Ah
  • Charger: 24 V/15 A
  • Weight: 980 kg

Product Detail

Product Description

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

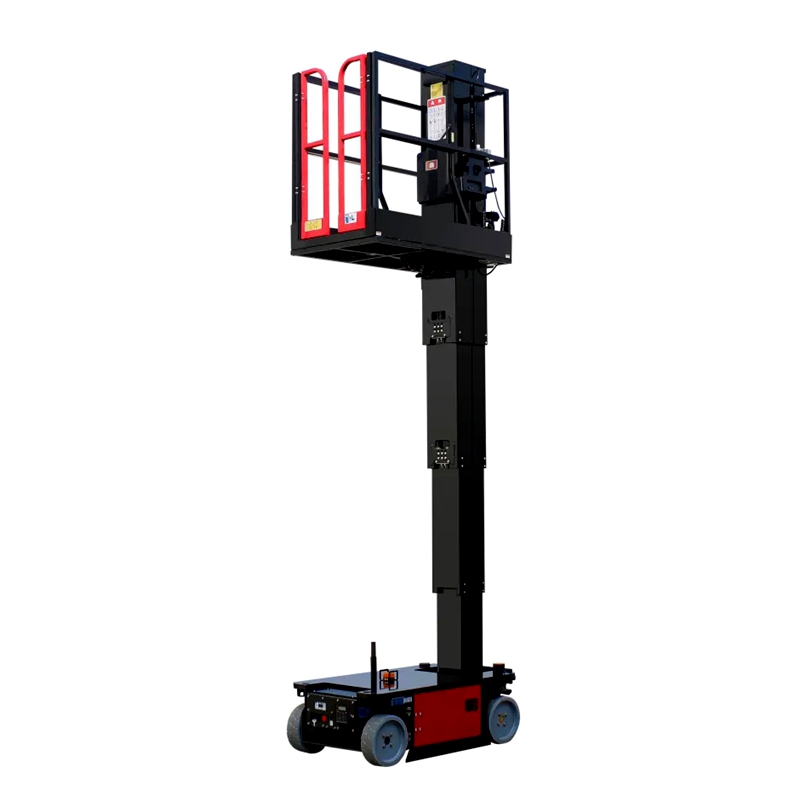

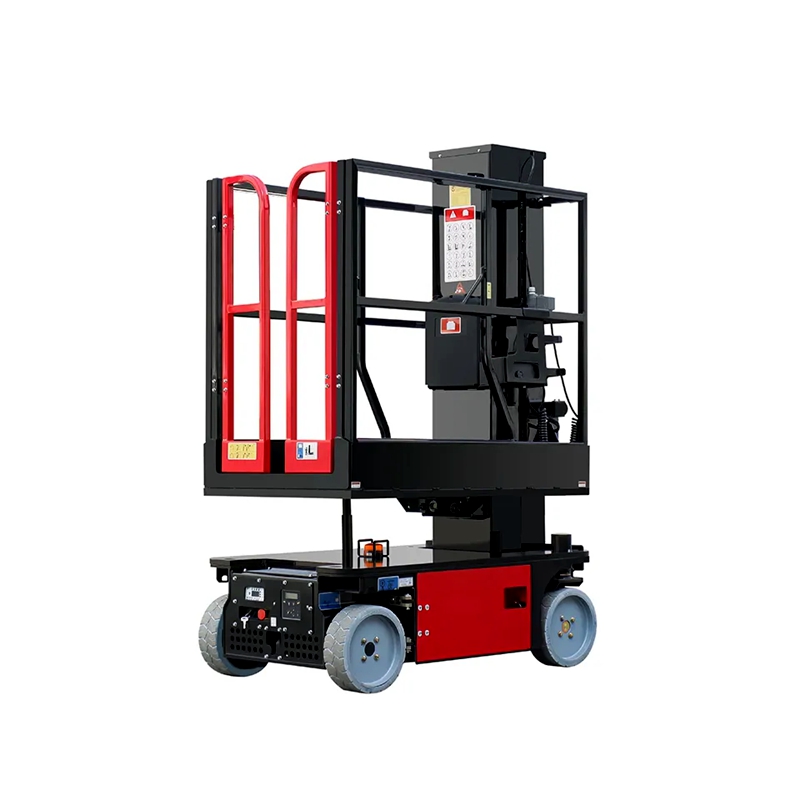

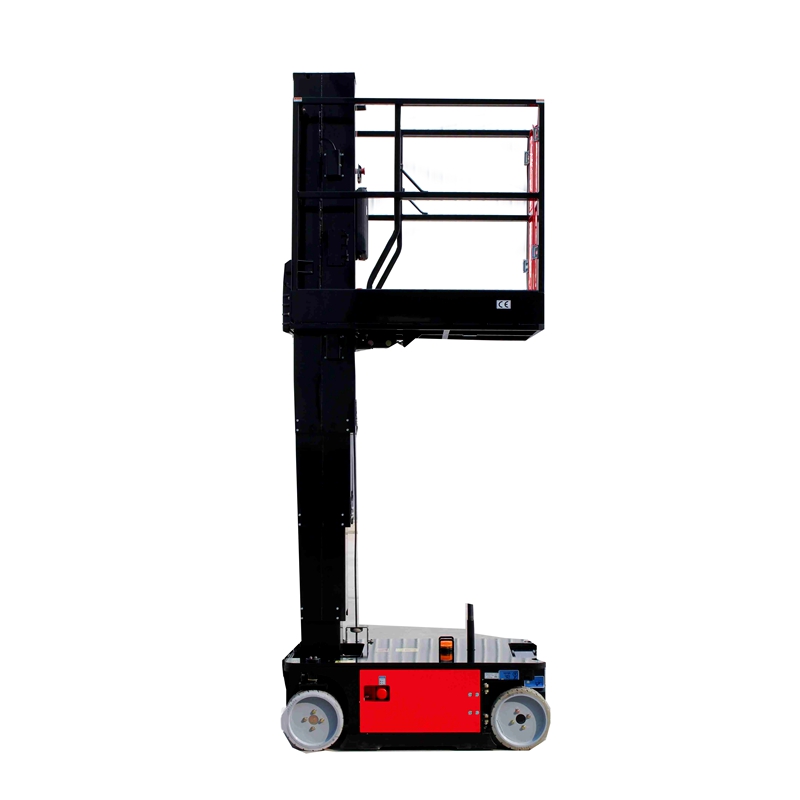

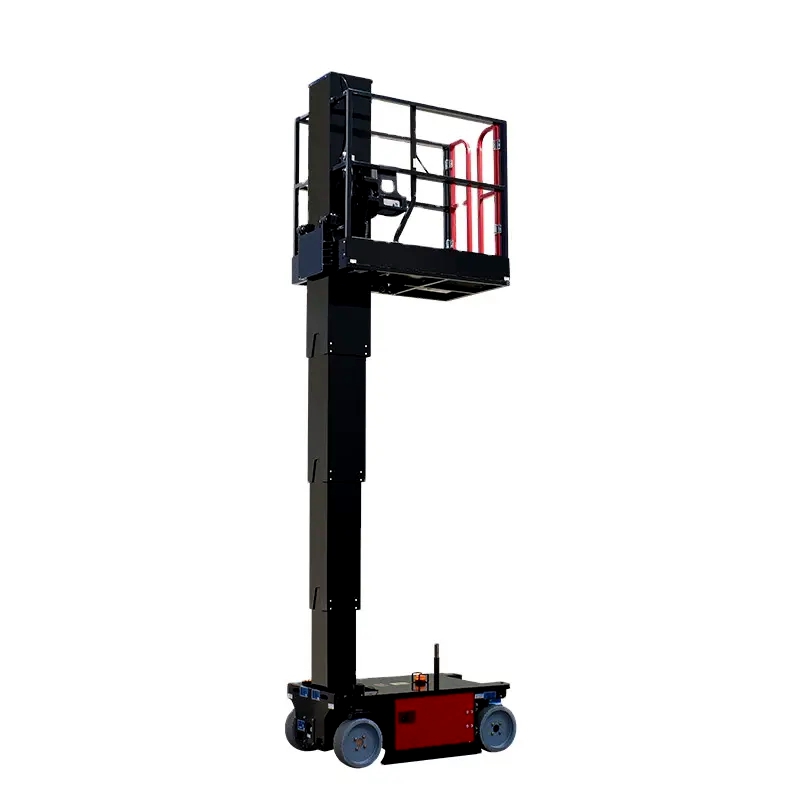

The Self-Propelled Vertical Mast leverages advanced proportional control technology to deliver precise, responsive operation, adapting seamlessly to the demands of diverse working environments—from intricate indoor tasks to rugged outdoor projects. Its integrated automatic pothole protection system proactively detects ground hazards, while full-stroke mobility and non-marking tires ensure seamless navigation across all surfaces—indoors, outdoors, or between delicate floors and rough terrain—without compromising stability or leaving traces.

Safety is engineered into every detail: the automatic braking system, emergency descent/stop functions, explosion-proof hydraulic tubing, and intelligent fault diagnostics work in tandem to create a comprehensive safety framework. This robust combination mitigates risks, minimizes downtime, and ensures consistent performance, safeguarding both operators and project timelines. Designed for industries demanding precision, reliability, and adaptability, this mast elevates productivity while setting new standards for operational safety.
