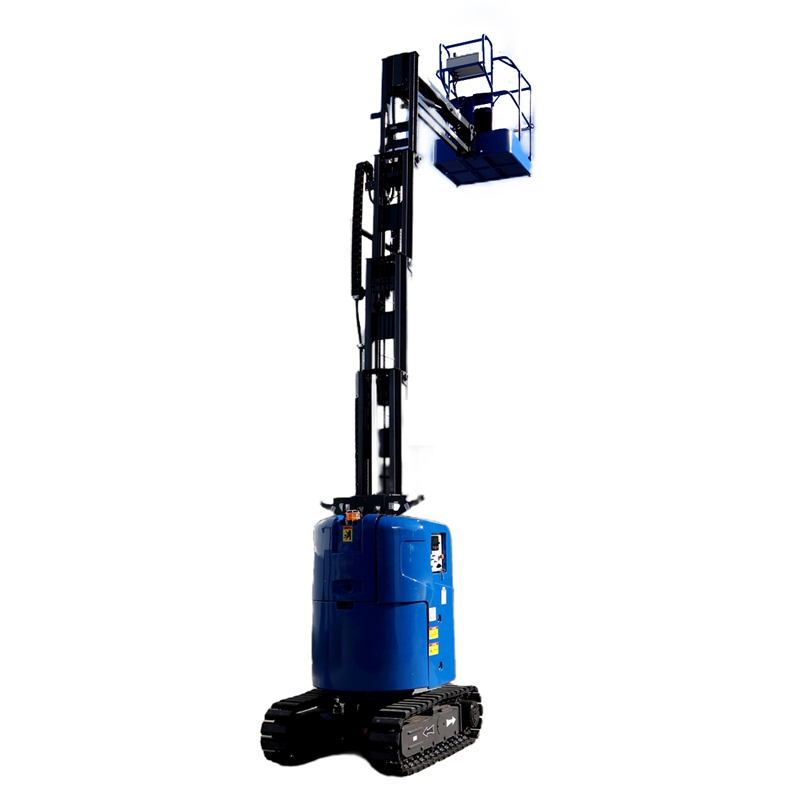

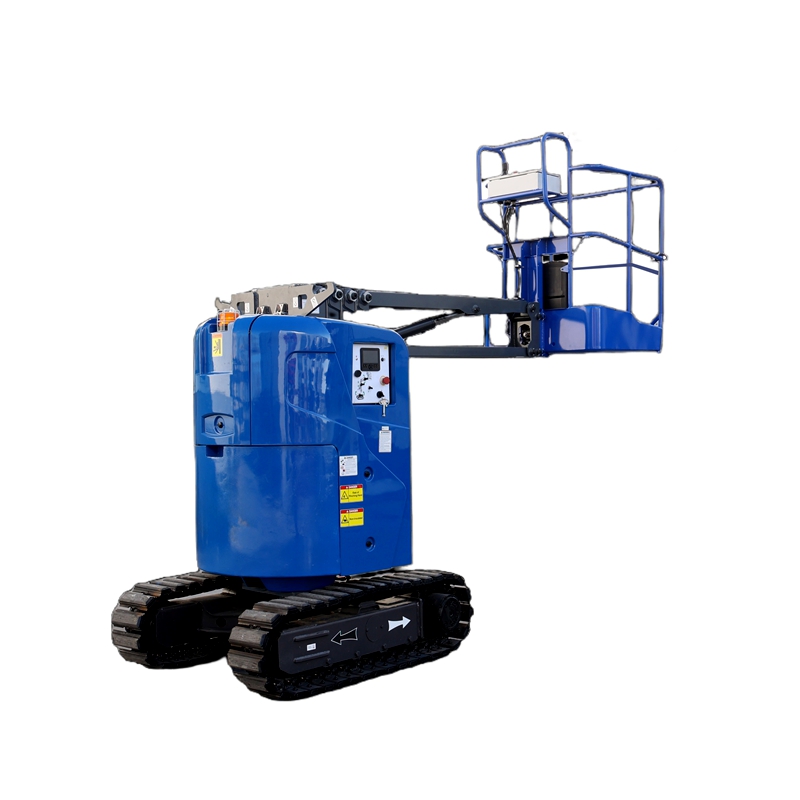

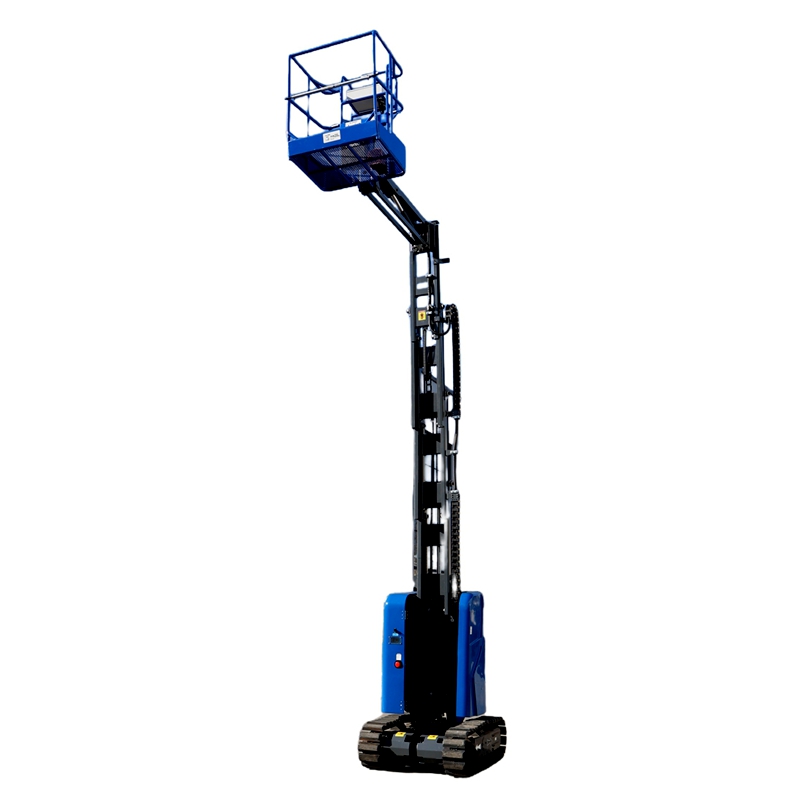

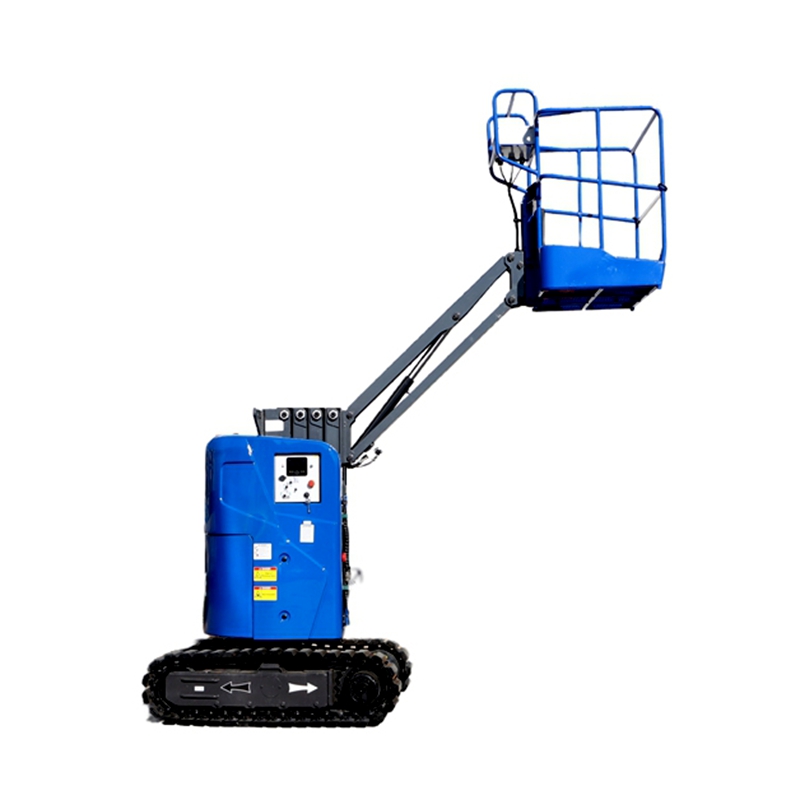

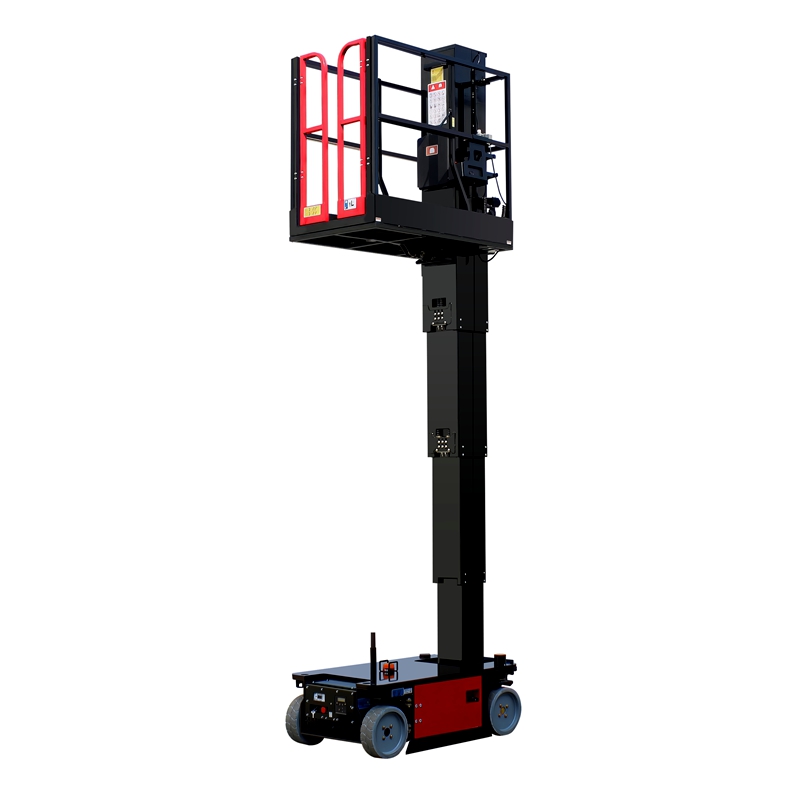

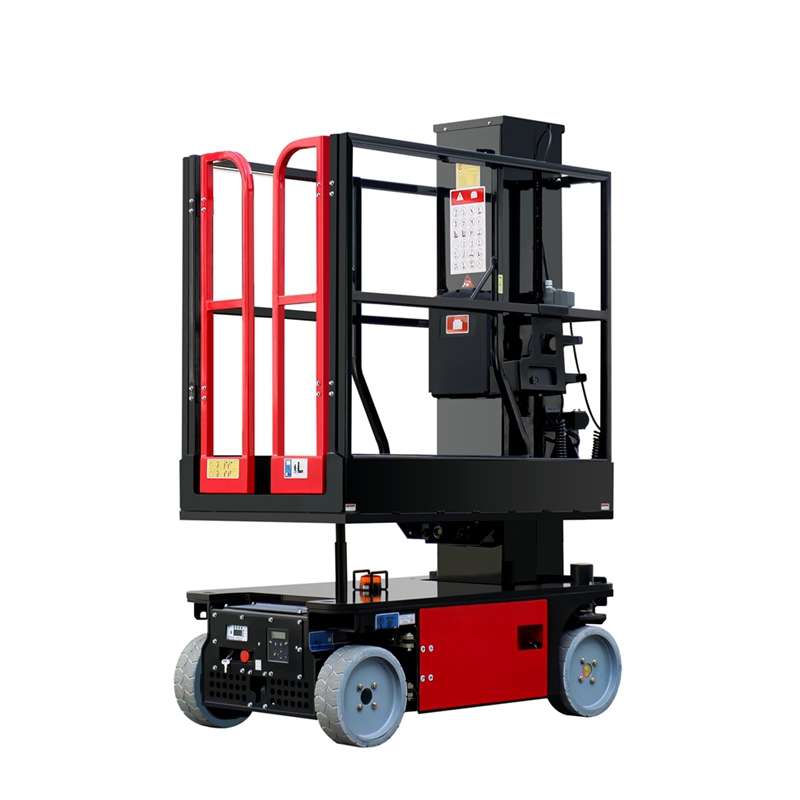

8 M High Quality Sleeve Type Vertical Lifting Platform For Sale

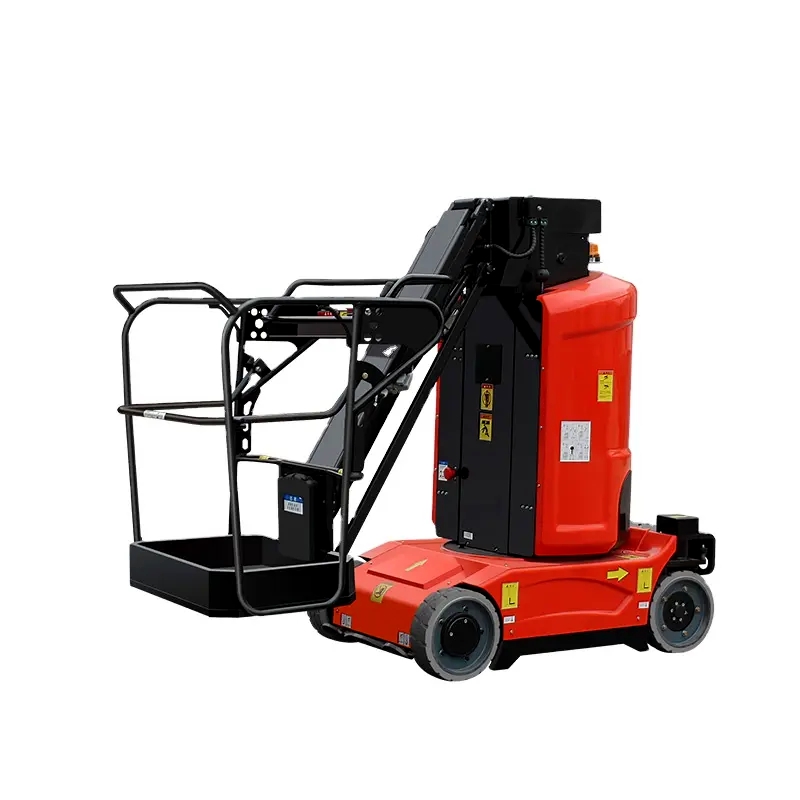

Sleeve Vertical Lifting Platform

Short Description:

Certifications & Brand Credibility:ISO 9001-certified quality management system and CE-approved, meeting international standards....


  • MODEL: ATWP10-7100-C
  • Max. Working Height: 10.00 m
  • Max. Platform Height: 8.00 m
  • Max. Horizontal Reach: 3.51 m
  • Overall Length: 2.78 m
  • Overall Width: 1.00 m
  • Overall Height (stowed): 1.98 m
  • Platform Dimension: 0.8*0.93 m
  • Ground Clearance(Stowed): 85 mm
  • Ground Clearance(Raised): 85 mm
  • Wheelbase: 1.2 m
  • Loading Capacity: 200 kg
  • Occupants: 2
  • Turret Rotation: 356°
  • Max.Working Slope: X - 2° Y - 2°
  • Travel Speed(Stowed): 4.5 km/h
  • Travel Speed(Raised): 0.8 km/h
  • Tyres: Φ406*125 mm
  • Driving Motor: 15 V/0.9 kW
  • Lifting Motor: 24 V/3 kW
  • Battery: 24 V/220 Ah
  • Charger: 24 V/30 A
  • Weight: 2850 kg

Product Detail

Product Description

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

High Strength Lightweight Design:balancing heavy-load capacity with reduced weight for easy transportation and installation.

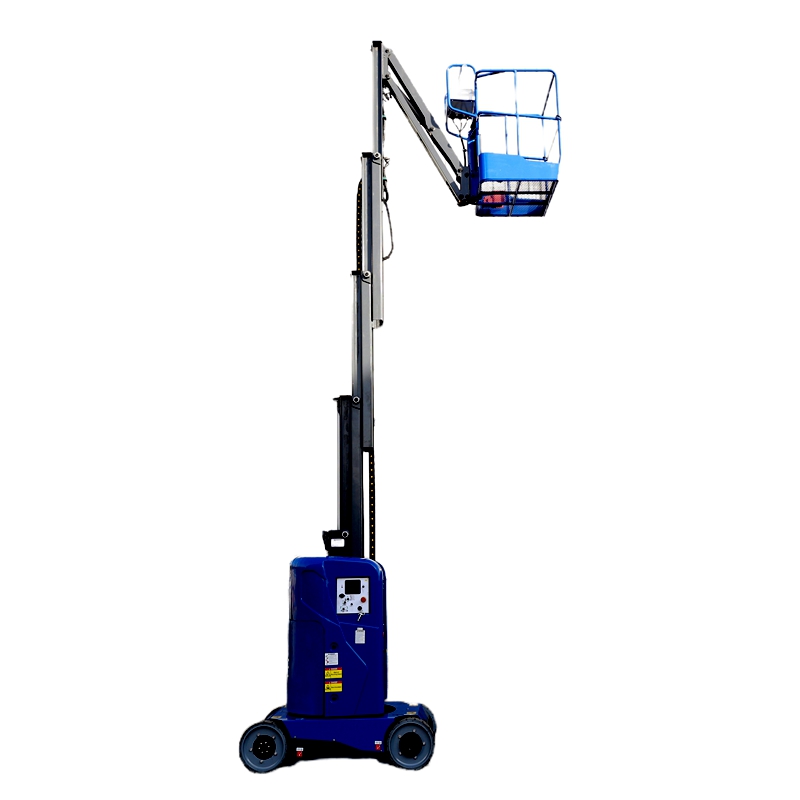

Performance Advantages:Modular telescopic sleeve design supports multi-stage extension, achieving vertical lifting heights of up to 8 meters in limited spaces, ideal for complex working.

Recision Transmission : Equipped with a precision lead screw or hydraulic drive system paired with guide rail positioning technology, ensuring smooth, wobble-free lifting with a positioning accuracy error of < ±1mm.

Stability:Sleeve inner walls feature wear-resistant coatings or self-lubricating materials to minimize friction and extend service life.
