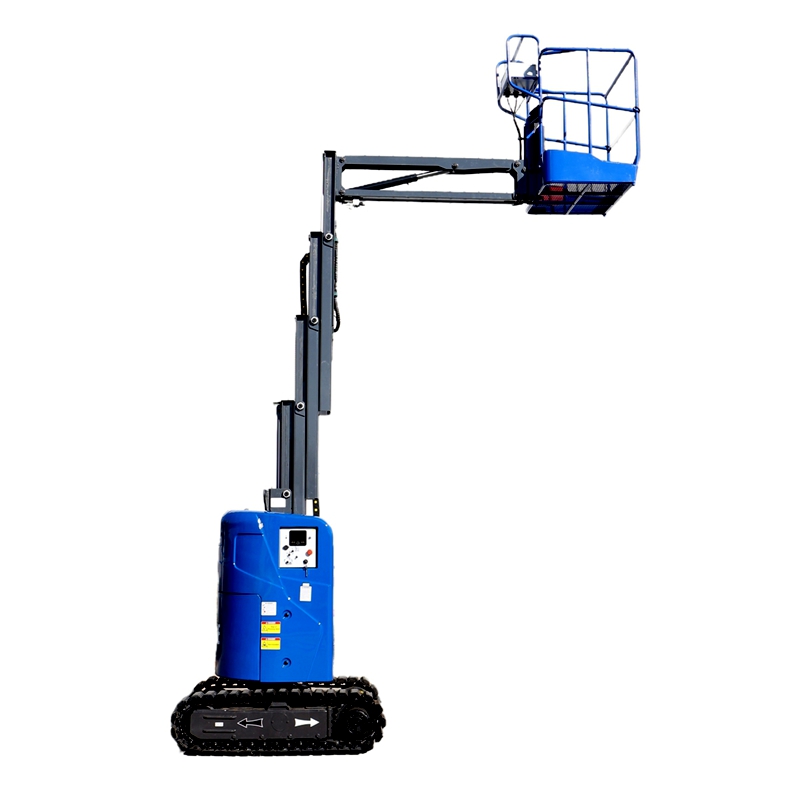

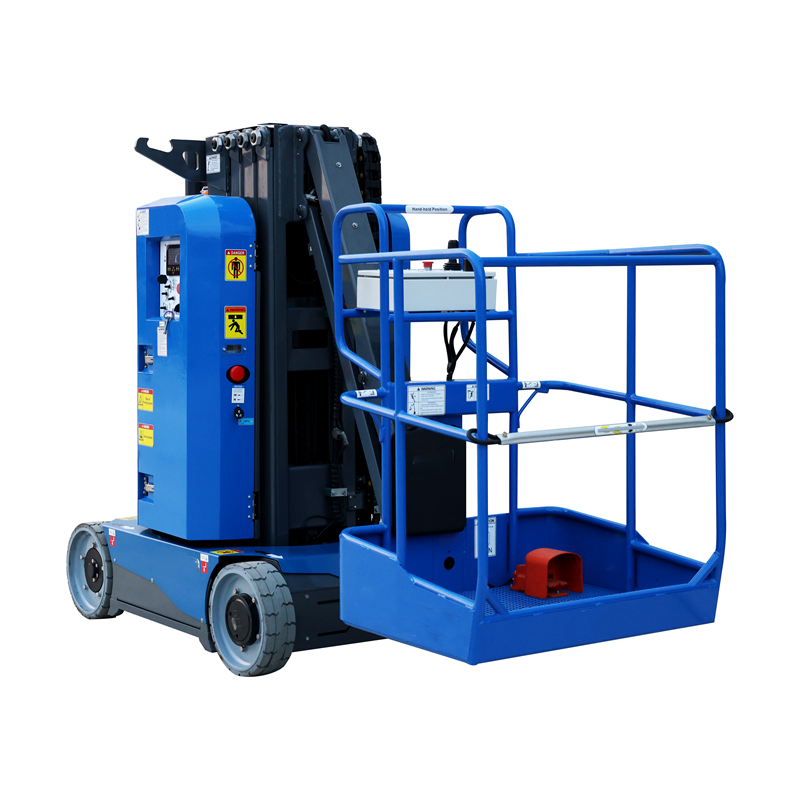

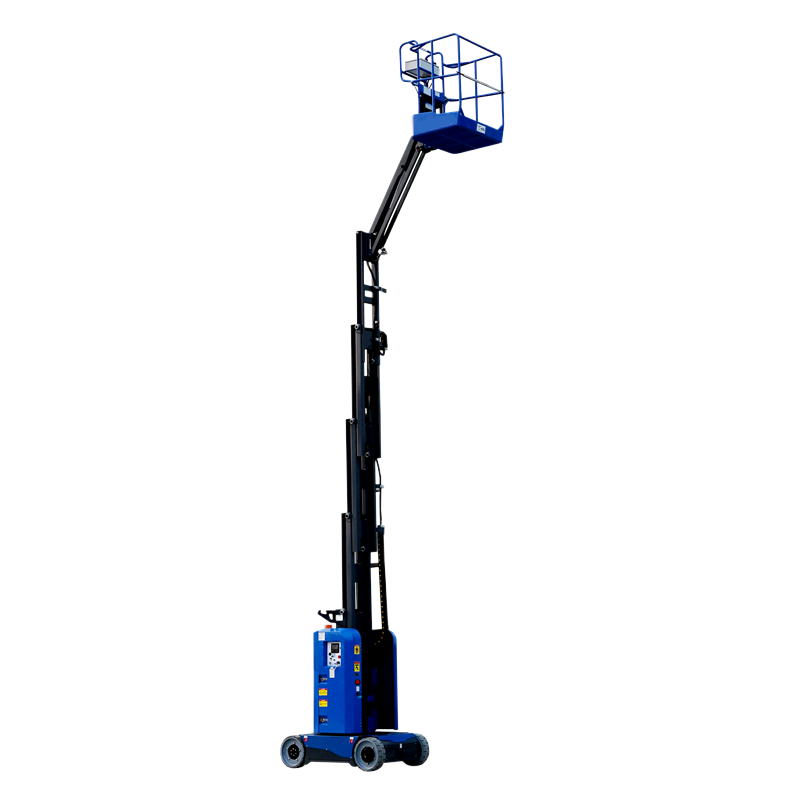

7 M Durable Sleeve Vertical Lifting Platform Direct Sale

Sleeve Vertical Lifting Platform

Short Description:

Industrial Manufacturing: Ideal for production line equipment installation, mold replacement, and high-altitude maintenance, optimizing workshop space utilization....


  • MODEL: ATWP9C-7100-C
  • Max. Working Height: 9.2 m
  • Max. Platform Height: 7.2 m
  • Max. Horizontal Reach: 3.51 m
  • Overall Length: 2.75 m
  • Overall Width: 1.15 m
  • Overall Height (stowed): 1.98 m
  • Platform Dimension: 0.8*0.93 m
  • Ground Clearance(Stowed): 85 mm
  • Ground Clearance(Raised): 85 mm
  • Wheelbase: 1.15 m
  • Loading Capacity: 200 kg
  • Occupants: 2
  • Turret Rotation: 220°
  • Max.Working Slope: X - 2° Y - 2°
  • Travel Speed(Stowed): 1.6 km/h
  • Travel Speed(Raised): 0.9 km/h
  • Tyres: 230*90*92 mm
  • Driving Motor: 32 V/4 kW
  • Lifting Motor: 48 V/3 kW
  • Battery: 48 V/220 Ah
  • Charger: 48 V/35 A
  • Weight: 2800 kg

Product Detail

Product Description

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

Sleeve Vertical Lifting Platform

High-Strength Lightweight Design:Constructed with aviation-grade aluminum alloy or high-tensile steel for the sleeve structure, balancing heavy-load capacity with reduced weight for easy transportation and installation.

Precision Transmission & Stability:Equipped with a precision lead screw or hydraulic drive system paired with guide rail positioning technology, ensuring smooth, wobble-free lifting with a positioning accuracy error of < ±1mm.

Hydraulic Drive: Delivers high torque for heavy-duty tasks (e.g., automotive maintenance, industrial equipment handling) with rapid lifting/lowering capabilities.

Multi-Layer Protection Mechanisms:Standard features include fall protection devices (e.g., safety locking mechanisms), overload protection sensors, and emergency stop buttons, compliant with ASME B20.1 or CE safety standards.
